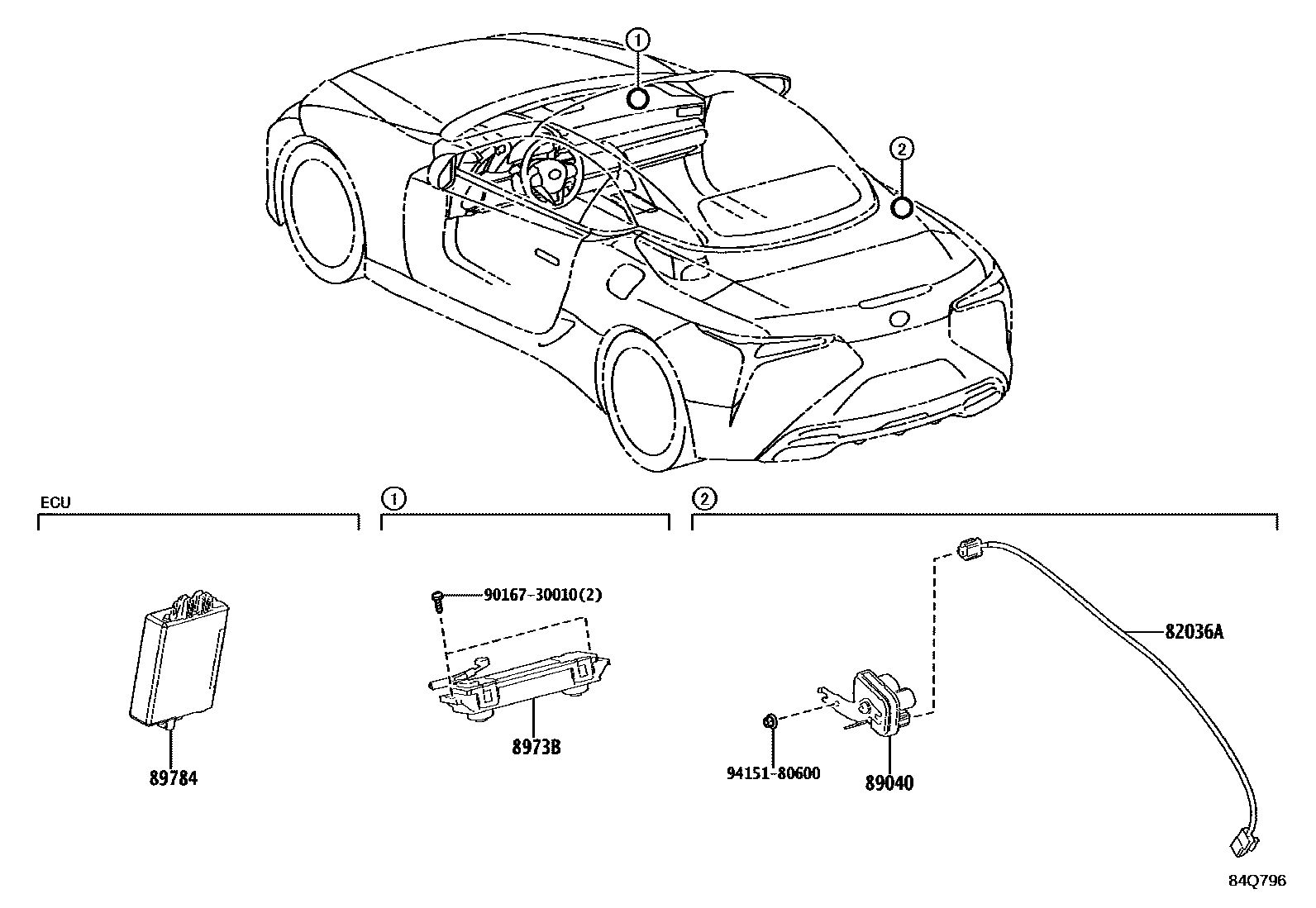

ANTI-THEFT DEVICE

0001 1 0002 1

82036AWIRE SUB-ASSY, SIREN

main82036-11010iURZ100..CONV202305

89040SIREN ASSY, THEFT WARNING

main89040-11030iGWZ100202305-202507

main89040-11040iURZ100..CONV202305

8973BSENSOR, THEFT WARNING ULTRASONIC & TILT

main8973B-11030iURZ100..CONV202305-202410

KOREA SPEC

main8973B-42010iGWZ100,URZ100..CP202305-202410

KOREA SPEC

89784COMPUTER, IMMOBILIZER CODE

main89784-42060iGWZ100202305-202507

9016730010

main90167-30010

9415180600

main94151-80600

6 parts on this diagram · 2 diagrams in section
