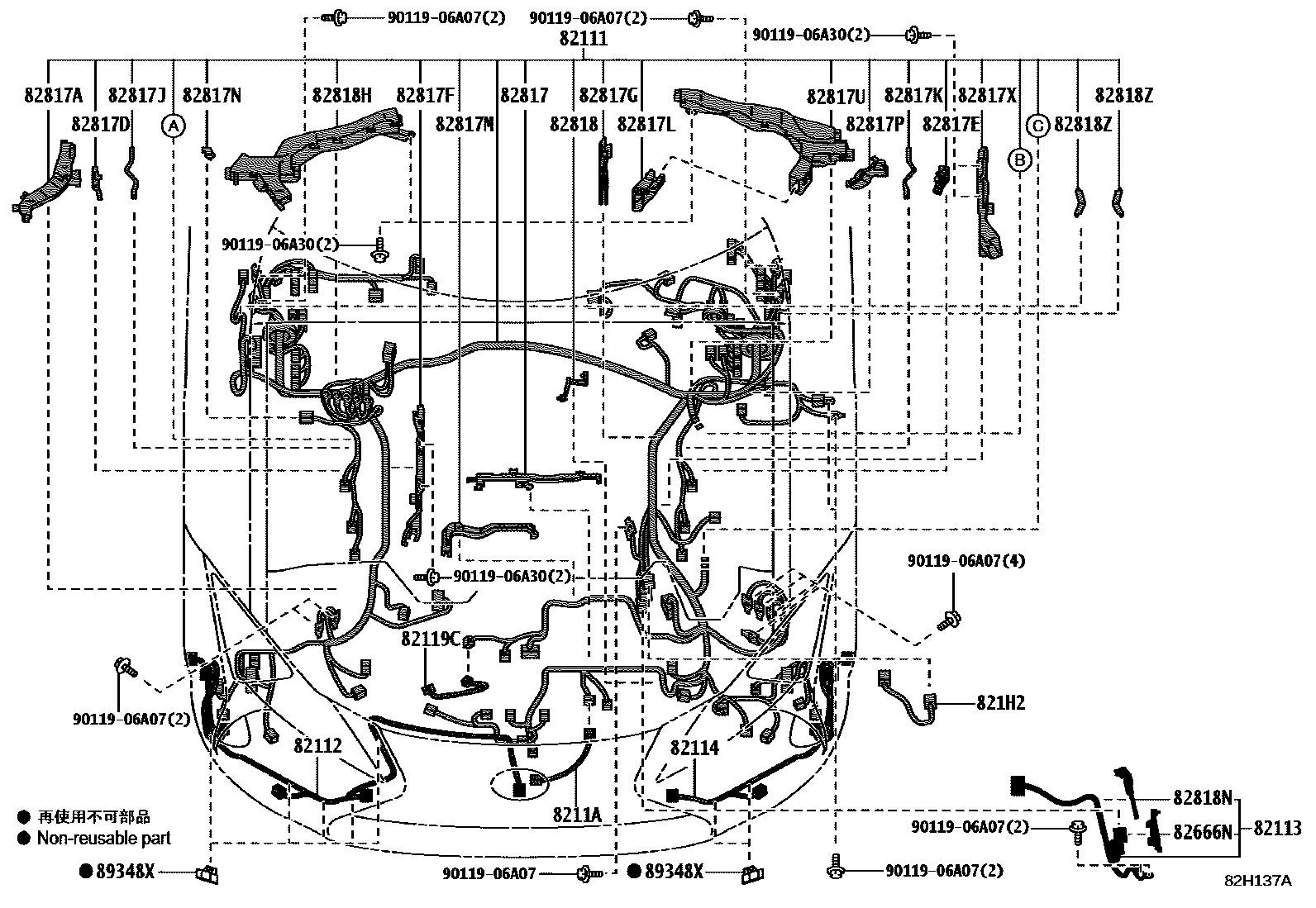

WIRING & CLAMP

0001 1ENGINE ROOM 1/2 0002 1ENGINE ROOM 2/2 0003 1ENGINE ROOM 1/2 0004 1ENGINE ROOM 2/2 0005 1ENGINE 1/2 0006 1ENGINE 2/2 0007 1ENGINE 1/2 0008 1ENGINE 2/2 0009 1INSTRUMENT PANEL 0010 1DOOR 0011 1LUGGAGE ROOM 0012 1FLOOR & ROOF 0013 1FLOOR WIRE NO.4 0014 1HIGH TENSION CABLE 0015 1SEAT 0016 1CLAMP & BRACKET 0017 1CLAMP & BRACKET 0018 1CONNECTOR 1/2 0019 1CONNECTOR 2/2

82111WIRE, ENGINE ROOM MAIN

main82111-11680iURZ100202305-202410

main82111-11681iURZ100202410

main82111-11750iGWZ100202305-202410

main82111-11751iGWZ100202410-202507

82112WIRE, ENGINE ROOM, NO.2

main82112-11050iGWZ100202305-202507

82113WIRE, ENGINE ROOM, NO.3

main82113-11010iURZ100202305

main82113-50110iGWZ100202305-202507

82114WIRE, ENGINE ROOM, NO.4

main82114-11010iGWZ100202305-202507

82119CWIRE, ENGINE ROOM, NO.5

main82119-11040iGWZ100202305-202507

8211AWIRE, ENGINE ROOM, NO.6

main8211A-11010iGWZ100202305-202507

821H2WIRE, HV AIR CONDITIONER

main821H2-50041iGWZ100202305-202507

82666NHOLDER, CONNECTOR NO.10

main82666-50A20iGWZ100202305-202507

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-11670iGWZ100202305-202507

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-11740iGWZ100202305-202507

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-50P80iGWZ100202305-202507

82817EPROTECTOR, WIRING HARNESS, NO.6

main82817-50P90iURZ100202305-202507

82817FPROTECTOR, WIRING HARNESS, NO.7

main82817-50Q10iURZ100202305-202507

82817GPROTECTOR, WIRING HARNESS, NO.8

main82817-50Q50iGWZ100202305-202507

main82817-50Q60iURZ100202305

82817JPROTECTOR, WIRING HARNESS, NO.9

main82817-50Z70iURZ100202305-202507

82817KPROTECTOR, WIRING HARNESS, NO.10

main82817-50Z80iGWZ100202305-202507

82817LPROTECTOR, WIRING HARNESS, NO.11

main82817-11770iURZ100202305

main82817-50Q30iGWZ100202305-202507

82817MPROTECTOR, WIRING HARNESS, NO.12

main82817-50N50iURZ100202305

main82817-50Z60iGWZ100202305-202507

82817NPROTECTOR, WIRING HARNESS, NO.13

main82817-5AA50iGWZ100202305-202507

main82817-5AA70iURZ100202305

82817PPROTECTOR, WIRING HARNESS, NO.14

main82817-5AD60iGWZ100202305-202507

82817UPROTECTOR, WIRING HARNESS, NO.16

main82817-50M90iGWZ100202305-202507

82817XPROTECTOR, WIRING HARNESS, NO.17

main82817-50Q40iGWZ100202305-202507

82818PROTECTOR, WIRING HARNESS, NO.2

main82817-11700iGWZ100202305-202507

82818HPROTECTOR, WIRING HARNESS, NO.9

main82817-50N00iGWZ100202305-202507

82818NPROTECTOR, WIRING HARNESS, NO.14

main82817-5AE30iURZ100202305-202507

82818ZPROTECTOR, WIRING HARNESS, NO.22

main82817-12860iGWZ100202305-202507

89348XCLIP, ULTRASONIC SENSOR, FRONT

main89348-50050iGWZ100202305-202507

9011906A07

main90119-06A07

9011906A30

main90119-06A30

29 parts on this diagram · 19 diagrams in section
