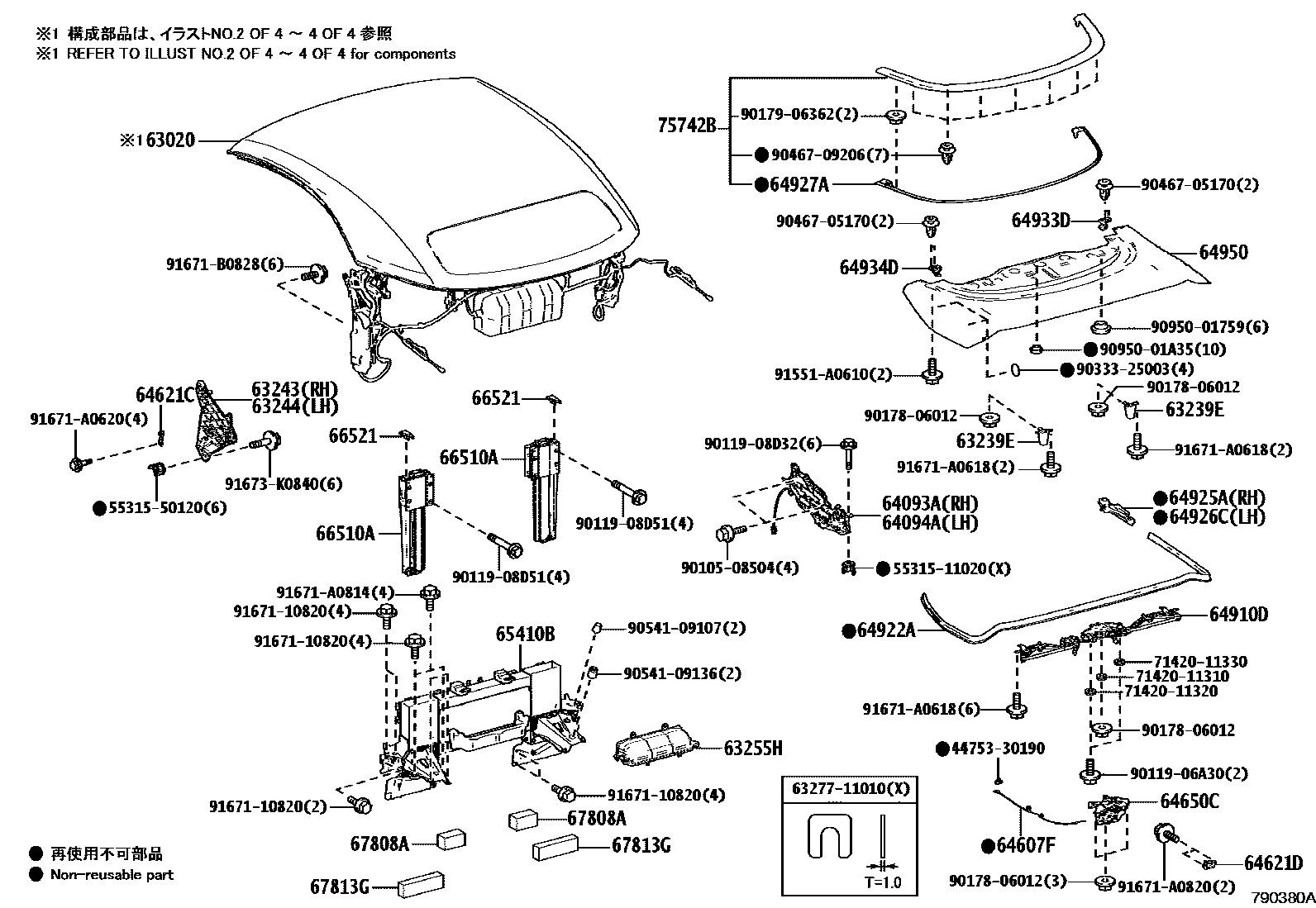

CONVERTIBLE PARTS
63020UNIT ASSY, REMOVABLE ROOF
BLACK / CREAM,TRIM01
BLACK / BLACK,TRIM21,31
BLACK / CARAMEL,TRIM41
BORDEAUX/BLACK,TRIM32
BEIGE / CARAMEL,TRIM42
BLUE / CREAM,TRIM02
BLUE/BLACK,TRIM22
BLUE,TRIM8#
63239ESTOPPER, REMOVABLE ROOF PANEL
63243BRACKET, REMOVABLE ROOF HOUSING, NO.2 RH
63244BRACKET, REMOVABLE ROOF HOUSING, NO.2 LH
63255HCOVER, CONVERTIBLE ROOF MOTOR
64093AHINGE SUB-ASSY, TONNEAU COVER, NO.1
64094AHINGE SUB-ASSY, TONNEAU COVER, NO.2
64607FCABLE SUB-ASSY, TONNEAU COVER LOCK CONTROL
64621CSTRIKER, TONNEAU COVER HINGE LOCK
64621DSTRIKER, TONNEAU COVER LOCK
64650CCLOSER ASSY, TONNEAU COVER
64910DCLOSER ASSY, ACCESS FLAP
64922AWEATHERSTRIP, TONNEAU COVER, FRONT
64925AWEATHERSTRIP, TONNEAU COVER, REAR RH
64926CWEATHERSTRIP, TONNEAU COVER, REAR LH
64927AWEATHERSTRIP, TONNEAU COVER TAIL GATE
64933DBRACKET, TONNEAU COVER HOLDER, RH
64934DBRACKET, TONNEAU COVER HOLDER, LH
64950PANEL ASSY, TONNEAU COVER
CANADA SPEC
MEXICO SPEC
65410BFRAME ASSY, REAR BODY
66510ABAR ASSY, ROLL OVER
66521COVER, ROLL OVER BAR
67808ACOVER SUB-ASSY, REAR BODY SERVICE HOLE
67813GSHEET, REAR BODY SILENCER
75742BMOULDING, TONNEAU COVER
4475330190CLAMP, VACUUM RESERVOIR, NO.2
main44753-30190
5531511020SUPPORT, INSTRUMENT PANEL
main55315-11020
5531550120SUPPORT, INSTRUMENT PANEL
main55315-50120
6327711010SHIM, SLIDING ROOF RAIL
main63277-11010
7142011310CUSHION ASSY, FRONT SEAT, LH
main71420-11310
7142011320CUSHION ASSY, FRONT SEAT, LH
main71420-11320
7142011330CUSHION ASSY, FRONT SEAT, LH
main71420-11330
9010508504
main90105-08504
9011906A30
main90119-06A30
9011908D32
main90119-08D32
9011908D51
main90119-08D51
9017806012
main90178-06012
9017906362
main90179-06362
9033325003
main90333-25003
9046705170
main90467-05170
9046709206
main90467-09206
9054109107
main90541-09107
9054109136
main90541-09136
9095001759
main90950-01759
9095001A35
main90950-01A35
91551A0610
main91551-A0610
9167110820
main91671-10820
91671A0618
main91671-A0618
91671A0620
main91671-A0620
91671A0814
main91671-A0814
91671A0820
main91671-A0820
91671B0828
main91671-B0828
91673K0840
main91673-K0840
53 parts on this diagram · 4 diagrams in section
