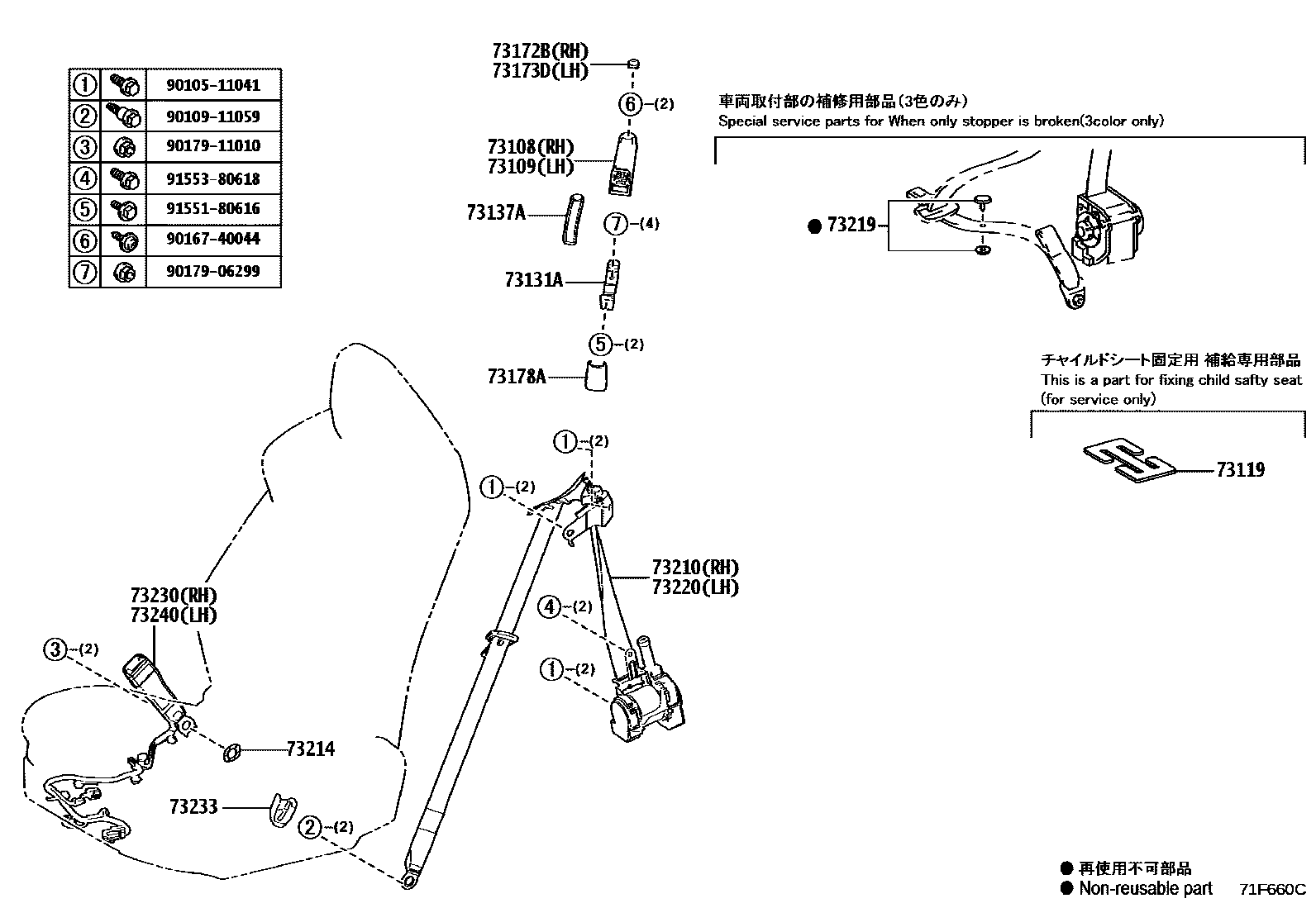

SEAT BELT & CHILD RESTRAINT SEAT
73108BASE SUB-ASSY, FRONT SEAT BELT ANCHOR, RH
73109BASE SUB-ASSY, FRONT SEAT BELT ANCHOR, LH
73119PLATE, SEAT BELT WEBBING CLIP
73131ABRACKET, SEAT BELT
73137ACOVER, SHOULDER BELT ANCHOR, UPR
BLACK,TRIM2#
LT.OCHRE,TRIM4#
73172BCAP, FRONT SHOULDER BELT HANGER, RH
73173DCAP, FRONT SHOULDER BELT HANGER, LH
73178ACAP, SEAT BELT ANCHOR COVER
73210BELT ASSY, FRONT SEAT OUTER, RH
BLACK,TRIM2#,3#
BLACK/OCHER,TRIM4#
BLUE,TRIM0#
BLUE,TRIM8#
BLACK/BLACK,TRIM2#,3#
BLACK/OCHRE,TRIM4#
WHITE/BLUE,TRIM0#
BLUE,TRIM8#
73214PLATE, FRONT SEAT BELT ANCHOR
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
MELLOW WHITE
73220BELT ASSY, FRONT SEAT OUTER, LH
BLACK,TRIM2#,3#
BLACK/OCHER,TRIM4#
BLUE,TRIM0#
BLUE,TRIM8#
BLACK/BLACK,TRIM2#,3#
BLACK/OCHRE,TRIM4#
WHITE/BLUE,TRIM0#
BLUE,TRIM8#
73230BELT ASSY, FRONT SEAT INNER, RH
WHITE,TRIM0#
BLACK,TRIM2#,3#,4#,8#
BLACK,TRIM0#,2#,3#,4#,8#
BLACK,TRIM0#,2#,3#,4#
73233COVER, LAP BELT OUTER ANCHOR
73240BELT ASSY, FRONT SEAT INNER, LH
WHITE,TRIM0#
BLACK,TRIM2#,3#,4#,8#
BLACK,TRIM0#,2#,3#,4#,8#
BLACK,TRIM0#,2#,3#,4#
9010511041
9010911059
9016740044
9017906299
9017911010
9155180616
9155380618
22 parts on this diagram · 4 diagrams in section
