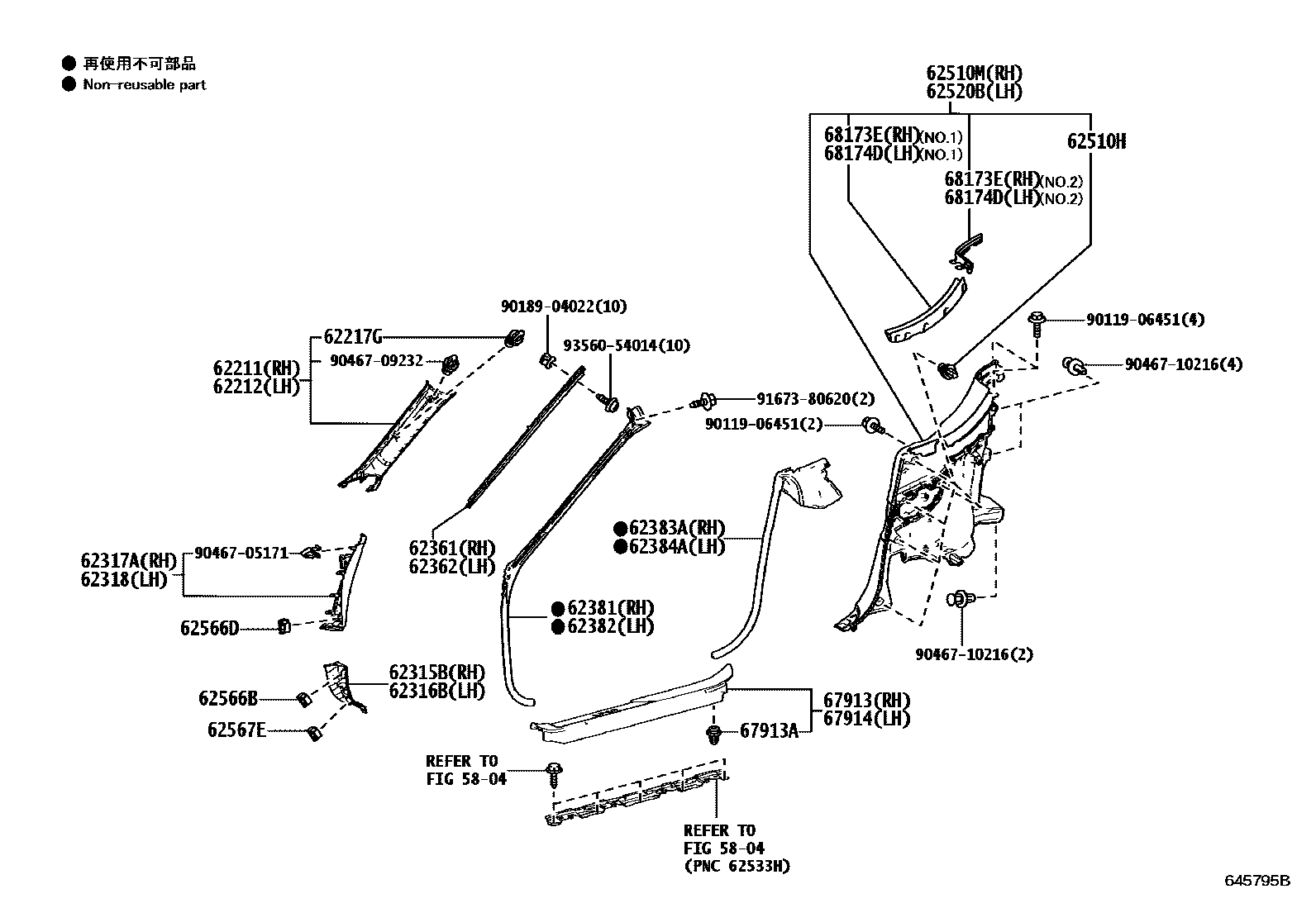

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
5804
62211GARNISH, FRONT PILLAR, RH
WHITE/IVORY,TRIM0#
BLACK/IVORY,TRIM2#,3#
OCHRE(BELEZA)/IVORY,TRIM4#
WHITE,TRIM0#
BLACK,TRIM2#,3#
OCHER,TRIM4#
BLUE,TRIM8#
62212GARNISH, FRONT PILLAR, LH
WHITE/IVORY,TRIM0#
BLACK/IVORY,TRIM2#,3#
OCHRE(BELAZA)/IVORY,TRIM4#
WHITE,TRIM0#
BLACK,TRIM2#,3#
OCHER,TRIM4#
BLUE,TRIM8#
62217GCLIP, FRONT PILLAR GARNISH
62315BCOVER, FRONT DOOR OPENING TRIM, RH
BLACK,TRIM2#,3#
OCHRE,TRIM4#
BLUE,TRIM0#
BLUE,TRIM0#,8#
62316BCOVER, FRONT DOOR OPENING TRIM, LH
BLACK,TRIM2#,3#
OCHRE,TRIM4#
BLUE,TRIM0#
BLUE,TRIM0#,8#
62317ACOVER, FRONT DOOR OPENING TRIM, NO.2 RH
WHITE,TRIM0#
BLACK,TRIM2#,3#
OCHRE,TRIM4#
BLUE,TRIM8#
ROOF HEADLINING-ALCANTARA,BLUE,TRIM8#
62318COVER, FRONT DOOR OPENING TRIM, NO.2 LH
WHITE,TRIM0#
BLACK,TRIM2#,3#
OCHRE,TRIM4#
ROOF HEADLINING-ALCANTARA,BLUE,TRIM8#
BLUE,TRIM8#
62361RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT RH
62362RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT LH
62510HCLIP(FOR QUARTER TRIM FRONT PANEL)
62510MPANEL ASSY, QUARTER TRIM, RH
WHITE/BLUE/GRAY,TRIM0#
BLACK,TRIM2#,3#
OCHER,TRIM4#
BLUE,TRIM8#
WHITE/BLUE,TRIM0#
BLACK/BLACK,TRIM2#,3#
OCHER/LT.OCHRE,TRIM4#
BLUE,TRIM8#
62520BPANEL ASSY, QUARTER TRIM, LH
WHITE/BLUE/GRAY,TRIM0#
BLACK,TRIM2#,3#
OCHER,TRIM4#
BLUE,TRIM8#
WHITE/BLUE,TRIM0#
BLACK/BLACK,TRIM2#,3#
OCHER/LT.OCHRE,TRIM4#
BLUE,TRIM8#
62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1
62566DCLAMP, FRONT DOOR OPENING TRIM COVER
62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2
67913PLATE, FRONT DOOR SCUFF, RH
IE 24MY&DOOR SCUFF PLATE-CFRP PLATE(FOR NORTH AMERICA),BLACK,TRIM2#,3#
BLACK,TRIM2#,3#
"S PACKAGE"&DOOR SCUFF PLATE-CFRP PLATE,BLACK,TRIM2#,3#
"S+ PACKAGE"&DOOR SCUFF PLATE-CFRP PLATE,BLACK,TRIM2#,3#
PERSONAL PACKAGE&DOOR SCUFF PLATE-CFRP PLATE,BLACK,TRIM2#,3#
DOOR SCUFF PLATE-CFRP PLATE,BLACK,TRIM2#,3#
IE 24MY&DOOR SCUFF PLATE-CFRP PLATE(FOR NORTH AMERICA),OCHRE,TRIM4#
OCHRE,TRIM4#
"S PACKAGE"&DOOR SCUFF PLATE-CFRP PLATE,OCHRE,TRIM4#
"S+ PACKAGE"&DOOR SCUFF PLATE-CFRP PLATE,OCHRE,TRIM4#
PERSONAL PACKAGE&DOOR SCUFF PLATE-CFRP PLATE,OCHRE,TRIM4#
DOOR SCUFF PLATE-CFRP PLATE,OCHRE,TRIM4#
"S PACKAGE"&DOOR SCUFF PLATE-CFRP PLATE,WHITE/BLUE,TRIM0#
WHITE/BLUE,TRIM0#
"S+ PACKAGE"&DOOR SCUFF PLATE-CFRP PLATE,WHITE/BLUE,TRIM0#
PERSONAL PACKAGE&DOOR SCUFF PLATE-CFRP PLATE,WHITE/BLUE,TRIM0#
DOOR SCUFF PLATE-CFRP PLATE,WHITE/BLUE,TRIM0#
IE 24MY&DOOR SCUFF PLATE-CFRP PLATE(FOR NORTH AMERICA),WHITE/BLUE,TRIM0#
67913ACLIP(FOR SCUFF PLATE)
67914PLATE, FRONT DOOR SCUFF, LH
IE 24MY&DOOR SCUFF PLATE-CFRP PLATE(FOR NORTH AMERICA),BLACK,TRIM2#,3#
BLACK,TRIM2#,3#
"S PACKAGE"&DOOR SCUFF PLATE-CFRP PLATE,BLACK,TRIM2#,3#
"S+ PACKAGE"&DOOR SCUFF PLATE-CFRP PLATE,BLACK,TRIM2#,3#
PERSONAL PACKAGE&DOOR SCUFF PLATE-CFRP PLATE,BLACK,TRIM2#,3#
DOOR SCUFF PLATE-CFRP PLATE,BLACK,TRIM2#,3#
IE 24MY&DOOR SCUFF PLATE-CFRP PLATE(FOR NORTH AMERICA),OCHRE,TRIM4#
OCHRE,TRIM4#
"S PACKAGE"&DOOR SCUFF PLATE-CFRP PLATE,OCHRE,TRIM4#
"S+ PACKAGE"&DOOR SCUFF PLATE-CFRP PLATE,OCHRE,TRIM4#
PERSONAL PACKAGE&DOOR SCUFF PLATE-CFRP PLATE,OCHRE,TRIM4#
DOOR SCUFF PLATE-CFRP PLATE,OCHRE,TRIM4#
"S PACKAGE"&DOOR SCUFF PLATE-CFRP PLATE,WHITE/BLUE,TRIM0#
WHITE/BLUE,TRIM0#
"S+ PACKAGE"&DOOR SCUFF PLATE-CFRP PLATE,WHITE/BLUE,TRIM0#
PERSONAL PACKAGE&DOOR SCUFF PLATE-CFRP PLATE,WHITE/BLUE,TRIM0#
DOOR SCUFF PLATE-CFRP PLATE,WHITE/BLUE,TRIM0#
IE 24MY&DOOR SCUFF PLATE-CFRP PLATE(FOR NORTH AMERICA),WHITE/BLUE,TRIM0#
68173EWEATHERSTRIP, QUARTER TRIM PANEL, INNER RH
NO.1:REFER ILLUST.
GRAY,TRIM0#,NO.2:REFER ILLUST.
BLACK,TRIM2#,3#,4#,8#,NO.2:REFER ILLUST.
68174DWEATHERSTRIP, QUARTER TRIM PANEL, INNER LH
NO.1:REFER ILLUST.
GRAY,TRIM0#,NO.2:REFER ILLUST.
BLACK,TRIM2#,3#,4#,8#,NO.2:REFER ILLUST.
9011906451
main90119-06451
9018904022
main90189-04022
9046705171
main90467-05171
9046709232
main90467-09232
9046710216
main90467-10216
9167380620
main91673-80620
9356054014
main93560-54014
32 parts on this diagram · 2 diagrams in section
