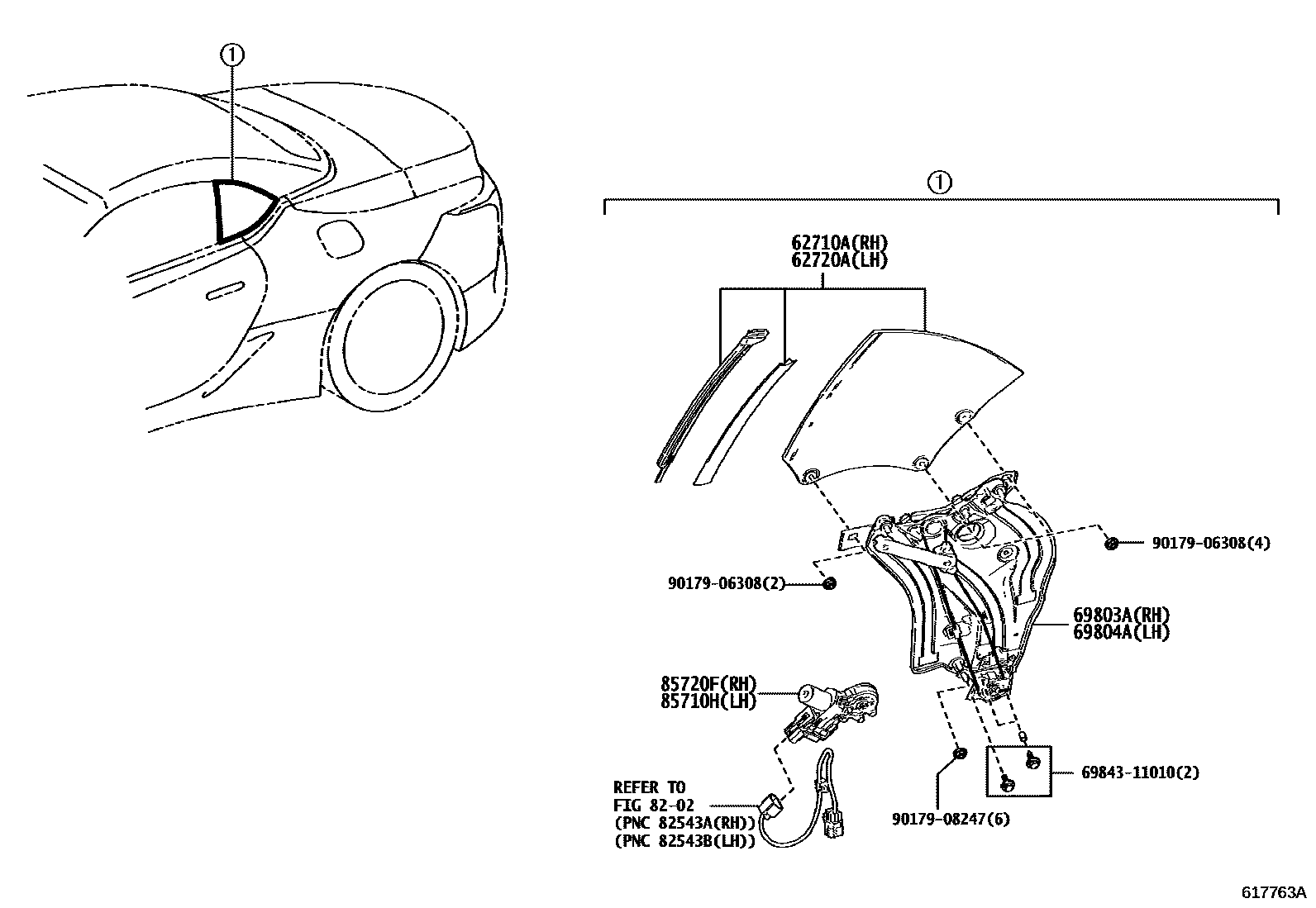

QUARTER WINDOW

0001 1 0002 1

62710AWINDOW ASSY, QUARTER, RH

main62710-11110iGWZ100,URZ100..CP202305-202410

KOREA SPEC

main62710-11120iGWZ100202305-202507

main62710-11170iURZ100..CONV202305-202307

main62710-11171iURZ100..CONV202308

main62710-11180iURZ100..CONV202305-202410

KOREA SPEC

62720AWINDOW ASSY, QUARTER, LH

main62720-11120iURZ100..CP202305-202507

main62720-11130iGWZ100,URZ100..CP202305-202410

KOREA SPEC

main62720-11170iURZ100..CONV202305-202307

main62720-11171iURZ100..CONV202308

main62720-11180iURZ100..CONV202305-202410

KOREA SPEC

69803AREGULATOR SUB-ASSY, QUARTER WINDOW, RH

main69803-11010iURZ100..CONV202305

69804AREGULATOR SUB-ASSY, QUARTER WINDOW, LH

main69804-11010iURZ100..CONV202305

8202

85710HMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-11030iURZ100..CONV202305

85720FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-11030iURZ100..CONV202305

6984311010

main69843-11010

9017906308

main90179-06308

9017908247

main90179-08247

10 parts on this diagram · 2 diagrams in section
