MAT & CARPET
55213BPAD, DASH PANEL INSULATOR, NO.1
55215DPAD, DASH PANEL INSULATOR, NO.3
55216CPAD, DASH PANEL INSULATOR, NO.4
58190BREST ASSY, FRONT FLOOR FOOT
58192GPANEL, FOOTREST, NO.2
58299GNET, BAGGAGE HOLDER
WHITE,TRIM0#
BLACK,TRIM2#,3#
OCHRE,TRIM4#
BLUE,TRIM8#
58441ECOVER, BATTERY SERVICE HOLE
WHITE,TRIM0#
BLACK,TRIM2#,3#
OCHRE,TRIM4#
58441FCOVER, BATTERY SERVICE HOLE
WHITE,TRIM0#
BLACK,TRIM2#,3#
OCHRE,TRIM4#
58510GCARPET ASSY, FLOOR, FRONT RH
WHITE,TRIM0#
BLACK,TRIM2#,3#
OCHER,TRIM4#
BLUE,TRIM8#
WHITE,TRIM0#
BLACK,TRIM2#,3#
OCHER,TRIM4#
58520CCLIP(FOR FRONT FLOOR CARPET)
58520JCARPET ASSY, FLOOR, FRONT LH
WHITE,TRIM0#
BLACK,TRIM2#,3#
OCHRE,TRIM4#
BLUE,TRIM8#
WHITE,TRIM0#
BLACK,TRIM2#,3#
OCHRE,TRIM4#
58530BCLIP(FOR FRONT FLOOR CARPET)
LT.GRAY
58569DCOVER, FRONT FLOOR CAUTION PLATE
WHITE,TRIM0#
BLACK,TRIM2#,3#
OCHRE,TRIM4#
BLUE,TRIM8#
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
59999CLAMP(FOR FLOOR MAT)
62135CRETAINER, COWL SIDE CARPET
62533HBRACKET, SIDE TRIM, NO.1
6401
8201
9016840061
main90168-40061
9046705172
main90467-05172
9046709229
main90467-09229
9046710217
main90467-10217
9167380620
main91673-80620

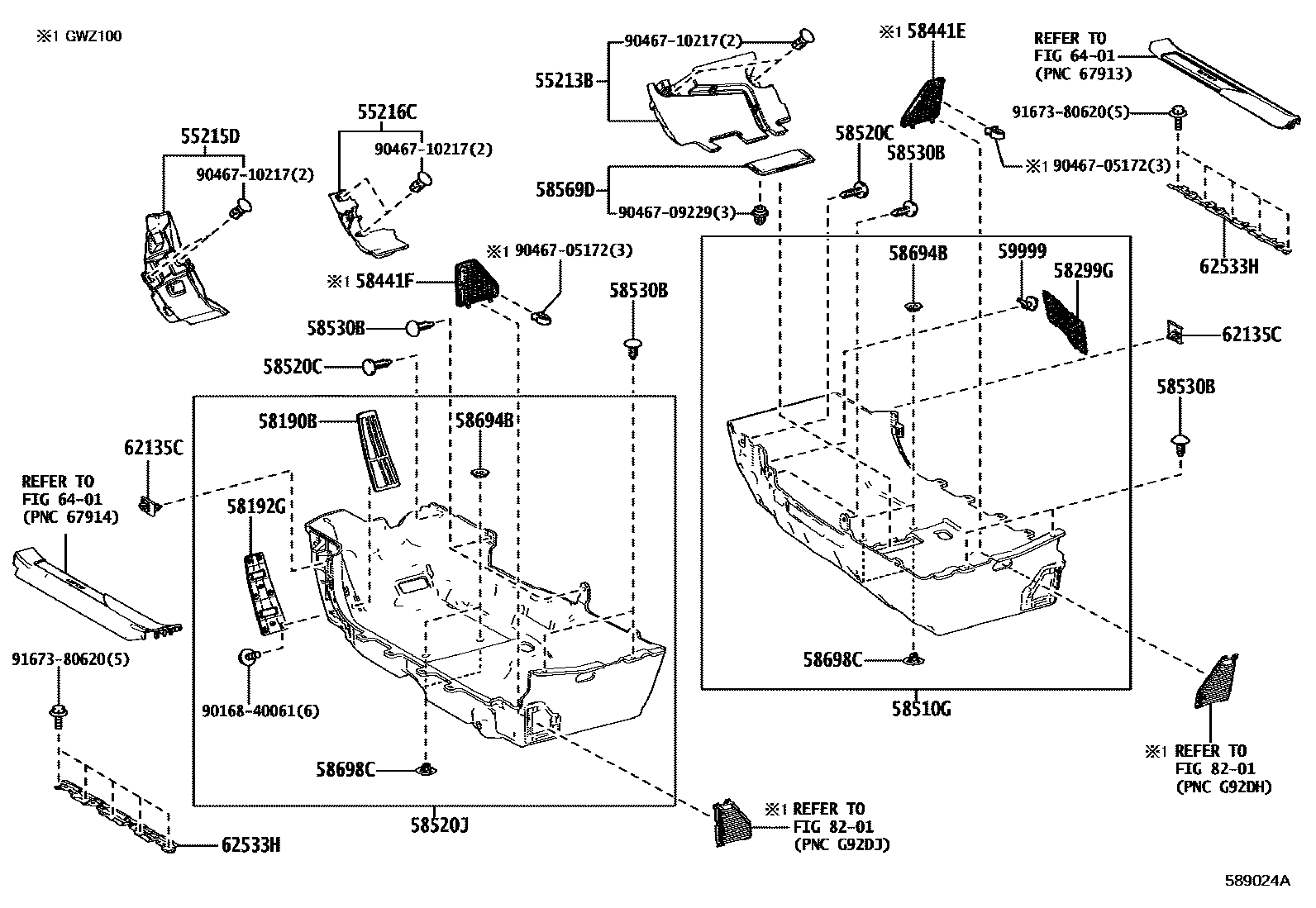

25 parts on this diagram · 2 diagrams in section
