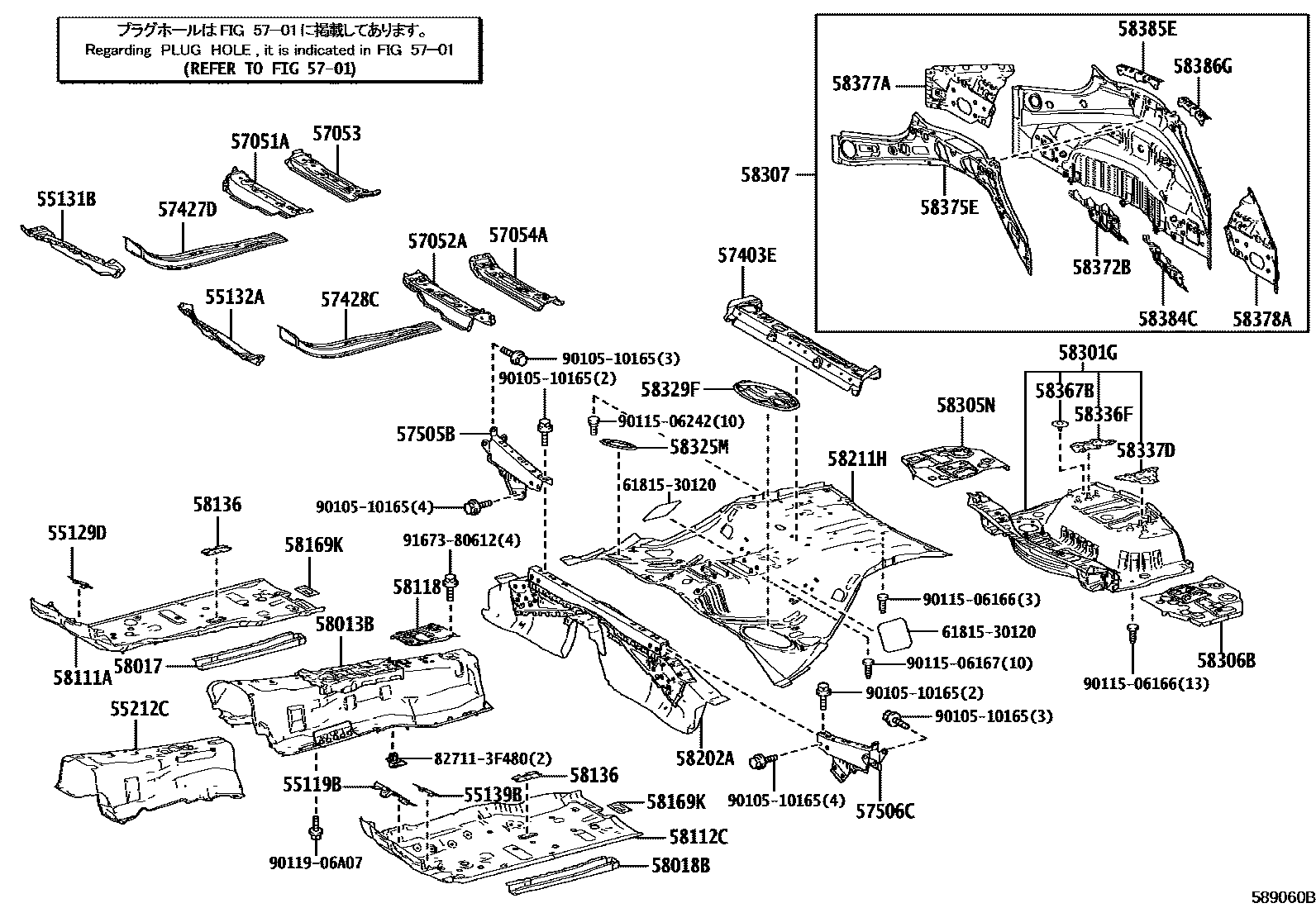

FLOOR PAN & LOWER BACK PANEL
55119BEXTENSION, DASH PANEL, LH
55129DCOVER, DASH PANEL HOLE, RH
55131BREINFORCEMENT, TOE BOARD, RH
55132AREINFORCEMENT, TOE BOARD, LH
55139BCOVER, DASH PANEL HOLE, LH
55212CSILENCER, FRONT PANEL, LOWER
5701
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57403EMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3
57427DREINFORCEMENT, FRONT FLOOR, NO.3 RH
57428CREINFORCEMENT, FRONT FLOOR, NO.3 LH
57505BREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER, RH
57506CREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER, LH
58013BPANEL SUB-ASSY, FRONT FLOOR, CENTER
58017PANEL SUB-ASSY, FRONT FLOOR HOUSING, REAR RH
58018BPANEL SUB-ASSY, FRONT FLOOR HOUSING, REAR LH
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58118PANEL, FRONT FLOOR, REAR LOWER CENTER
58136COVER, FRONT FLOOR HOLE
58169KPATCH, FRONT FLOOR, REAR
58202APAN SUB-ASSY, CENTER FLOOR, FRONT
58211HPAN, CENTER FLOOR
58301GPAN SUB-ASSY, REAR FLOOR
58305NEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, RH
58306BEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58325MCOVER, REAR FLOOR SERVICE HOLE, NO.1
58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2
58336FREINFORCEMENT, REAR FLOOR PAN, RH
58337DREINFORCEMENT, REAR FLOOR PAN, LH
58367BBRACKET, FUEL TUBE
58372BPANEL, BODY LOWER BACK, LOWER
58375EREINFORCEMENT, BODY LOWER BACK PANEL
58377APANEL, BODY LOWER BACK, RH
58378APANEL, BODY LOWER BACK, LH
58384CREINFORCEMENT, BODY LOWER BACK, NO.2 LH
58385EBRACKET, REAR BUMPER COVER, RH
58386GBRACKET, REAR BUMPER COVER, LH
6181530120PLATE, FUEL TANK, INLET DOOR LOCK
827113F480WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
9010510165
9011506166
9011506167
9011506242
9011906A07
9167380612
50 parts on this diagram · 2 diagrams in section
