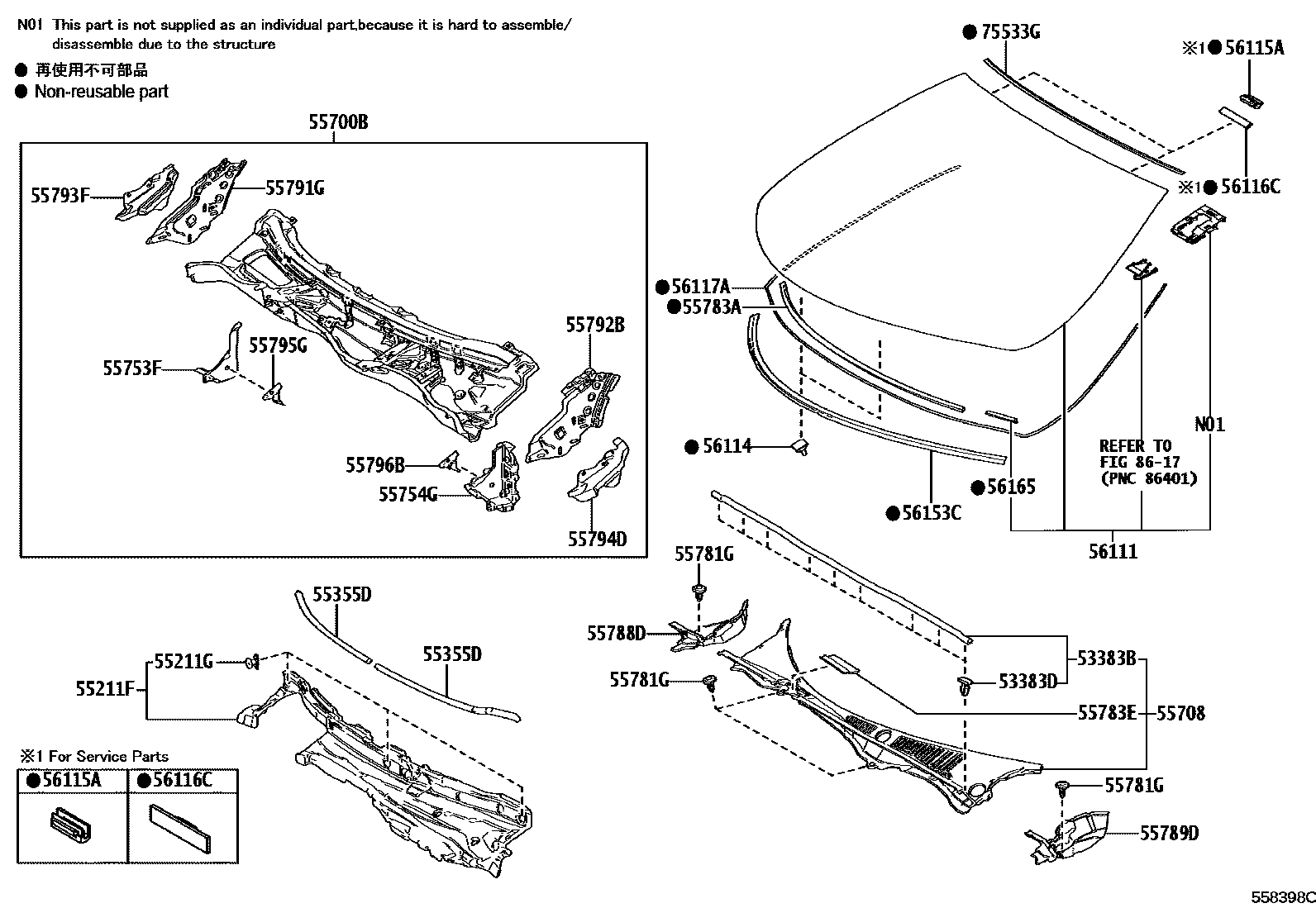

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
55211FCOVER, DASH PANEL INSULATOR
55211GCLIP, DASH PANEL INSULATOR COVER
55355DCUSHION, INSTRUMENT PANEL, NO.1
55700BCOWL ASSY
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
55753FBRACKET, INSTRUMENT PANEL TO COWL, NO.1
55754GBRACKET, INSTRUMENT PANEL TO COWL, NO.2
55781GCLIP, COWL TOP VENTILATOR LOUVER
55783APAD, COWL TOP SILENCER
55783ELOUVER, COWL TOP VENTILATOR, CENTER
55788DINSULATOR, COWL TOP PANEL, NO.2
55789DINSULATOR, COWL TOP PANEL, NO.3
55791GCOVER, COWL REINFORCEMENT, UPPER RH
55792BCOVER, COWL REINFORCEMENT, UPPER LH
55793FCOVER, COWL REINFORCEMENT, UPPER NO.2 RH
55794DCOVER, COWL REINFORCEMENT, UPPER NO.2 LH
55795GCOVER, COWL REINFORCEMENT, UPPER NO.3 RH
55796BCOVER, COWL REINFORCEMENT, UPPER NO.3 LH
56114RETAINER, WINDSHIELD GLASS
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
L=3500
L=3500,COLD AREA SPEC
L=3500,COLD AREA SPEC&HEAD UP DISPLAY-WITH
L=3500,HEAD UP DISPLAY-WITH
*D,L=2819
*D,L=2819,COLD AREA SPEC
*D,L=2819,COLD AREA SPEC&HEAD UP DISPLAY-WITH
*D,L=2819,HEAD UP DISPLAY-WITH
56153CMOULDING, FRONT WINDOW, INNER CENTER
56165COVER, FRONT WINDOW INNER MOULDING, LH
75533GMOULDING, WINDSHIELD, OUTSIDE
8617
29 parts on this diagram · 1 diagram in section
