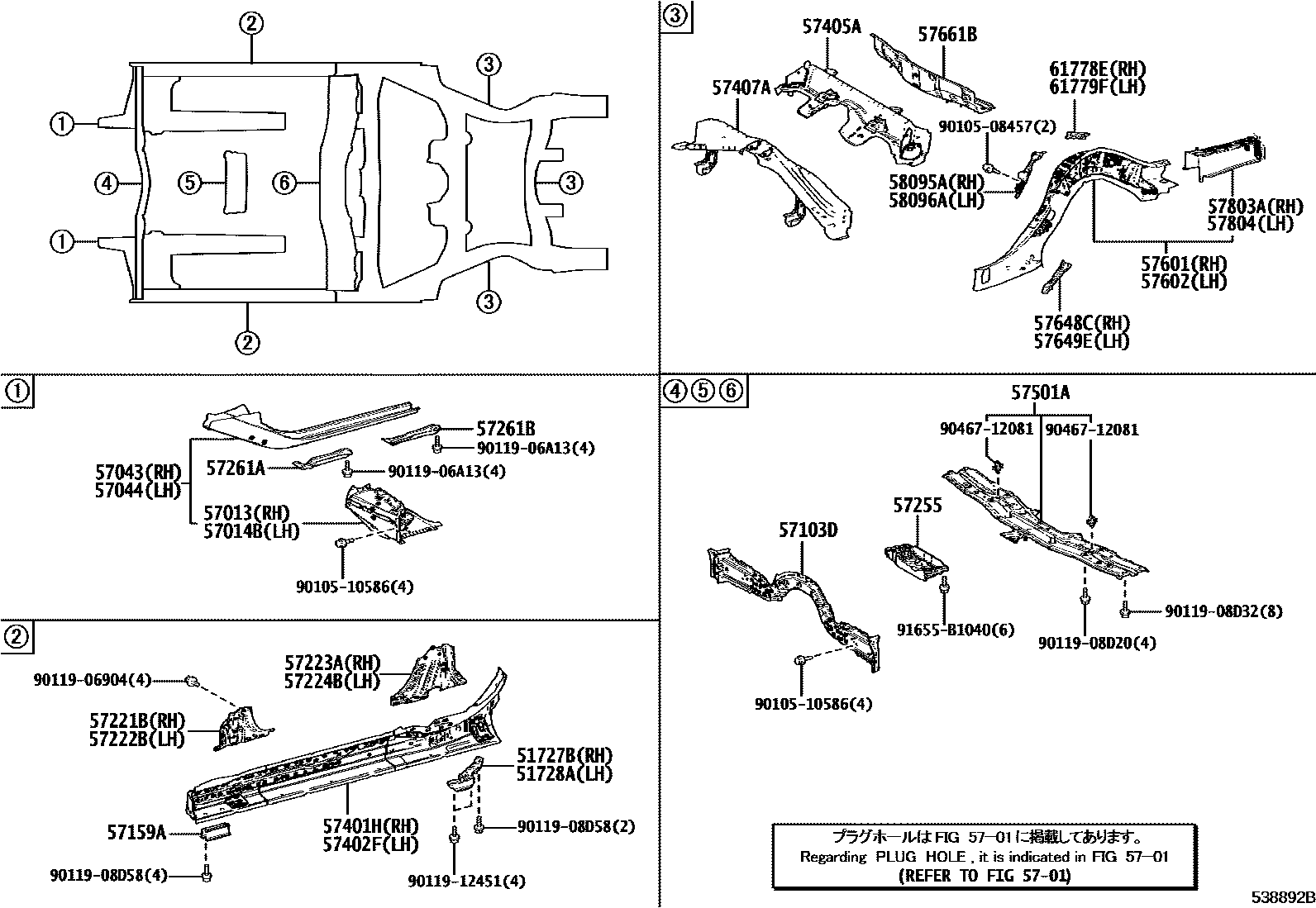

FLOOR SIDE MEMBER

0001 1 0002 1 0003 1BRACE

51727BREINFORCEMENT, BODY SUPPORT BRACKET, REAR RH

main51727-11010iURZ100..CONV202305

51728AREINFORCEMENT, BODY SUPPORT BRACKET, REAR LH

main51728-11010iURZ100..CONV202305

5701

57013BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-11010iGWZ100202305-202507

57014BBRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-11010iGWZ100202305-202507

57043REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-11010iURZ100..CP202305-202507

main57043-11020iURZ100..CONV202305

57044REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-11010iURZ100..CP202305-202507

main57044-11020iURZ100..CONV202305

57103DCROSSMEMBER SUB-ASSY, FRONT SIDE MEMBER TO DASH PANEL

main57103-11010iGWZ100202305-202507

57159AREINFORCEMENT, ENGINE UNDER COVER MOUNTING

main57159-11011iURZ100..CP202305-202409

IE 24MY

main57159-11011iURZ100..CONV202305

57221BREINFORCEMENT, BODY MOUNTING, NO.1 RH

main57221-11010iURZ100..CONV202305

57222BREINFORCEMENT, BODY MOUNTING, NO.1 LH

main57222-11010iURZ100..CONV202305

57223AREINFORCEMENT, BODY MOUNTING, NO.2 RH

main57223-11010iURZ100..CONV202305

57224BREINFORCEMENT, BODY MOUNTING, NO.2 LH

main57224-11010iURZ100..CONV202305

57255MEMBER, ENGINE REAR MOUNTING

main57255-11010iGWZ100,URZ100202305

57261APLATE, ENGINE REAR MOUNTING MEMBER

main57261-11010iGWZ100,URZ100202305

57261BPLATE, ENGINE REAR MOUNTING MEMBER

main57261-11020iGWZ100,URZ100..CP202305

main57261-11030iURZ100..CONV202305

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-11010iGWZ100202305-202507

main57401-11020iURZ100..CONV202305

main57401-11030iURZ100..CP202409

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-11010iURZ100..CP202305-202507

main57402-11020iURZ100..CONV202305

main57402-11030iURZ100..CP202409

57405AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

main57405-11011iGWZ100202305-202507

main57405-11020iURZ100..CONV202305

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-11010iGWZ100202305-202507

57501ABRACE SUB-ASSY, FRONT FLOOR, CENTER

main57501-11010iURZ100..CP202305-202409

main57501-11020iURZ100..CONV202305

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-11070iGWZ100202305-202507

main57601-11080iURZ100202305

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-11060iURZ100202305

main57602-11070iGWZ100202305-202507

57648CREINFORCE, REAR FLOOR SIDE MEMBER, REAR UPPER RH

main57648-11020iURZ100..CONV202305

57649EREINFORCE, REAR FLOOR SIDE MEMBER, REAR UPPER LH

main57649-11010iURZ100..CONV202305

57661BMEMBER, REAR FLOOR CROSS, FRONT

main57068-11010iURZ100..CONV202305

57803AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH

main57803-11010iGWZ100202305-202507

57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH

main57804-11010iGWZ100202305-202507

58095ARETAINER SUB-ASSY, REAR SEAT, NO.3 REAR RH

main58095-11010iURZ100..CONV202305

58096ARETAINER SUB-ASSY, REAR SEAT, NO.3 REAR LH

main58096-11010iURZ100..CONV202305

61778EBRACKET, BELT ANCHOR TO QUARTER REINFORCE, RH

main61778-11020iURZ100..CONV202305

61779FBRACKET, BELT ANCHOR TO QUARTER REINFORCE, LH

main61779-11020iURZ100..CONV202305

9010508457

main90105-08457

9010510586

main90105-10586

9011906904

main90119-06904

9011906A13

main90119-06A13

9011908D20

main90119-08D20

9011908D32

main90119-08D32

9011908D58

main90119-08D58

9011912451

main90119-12451

9046712081

main90467-12081

91655B1040

main91655-B1040

42 parts on this diagram · 3 diagrams in section
