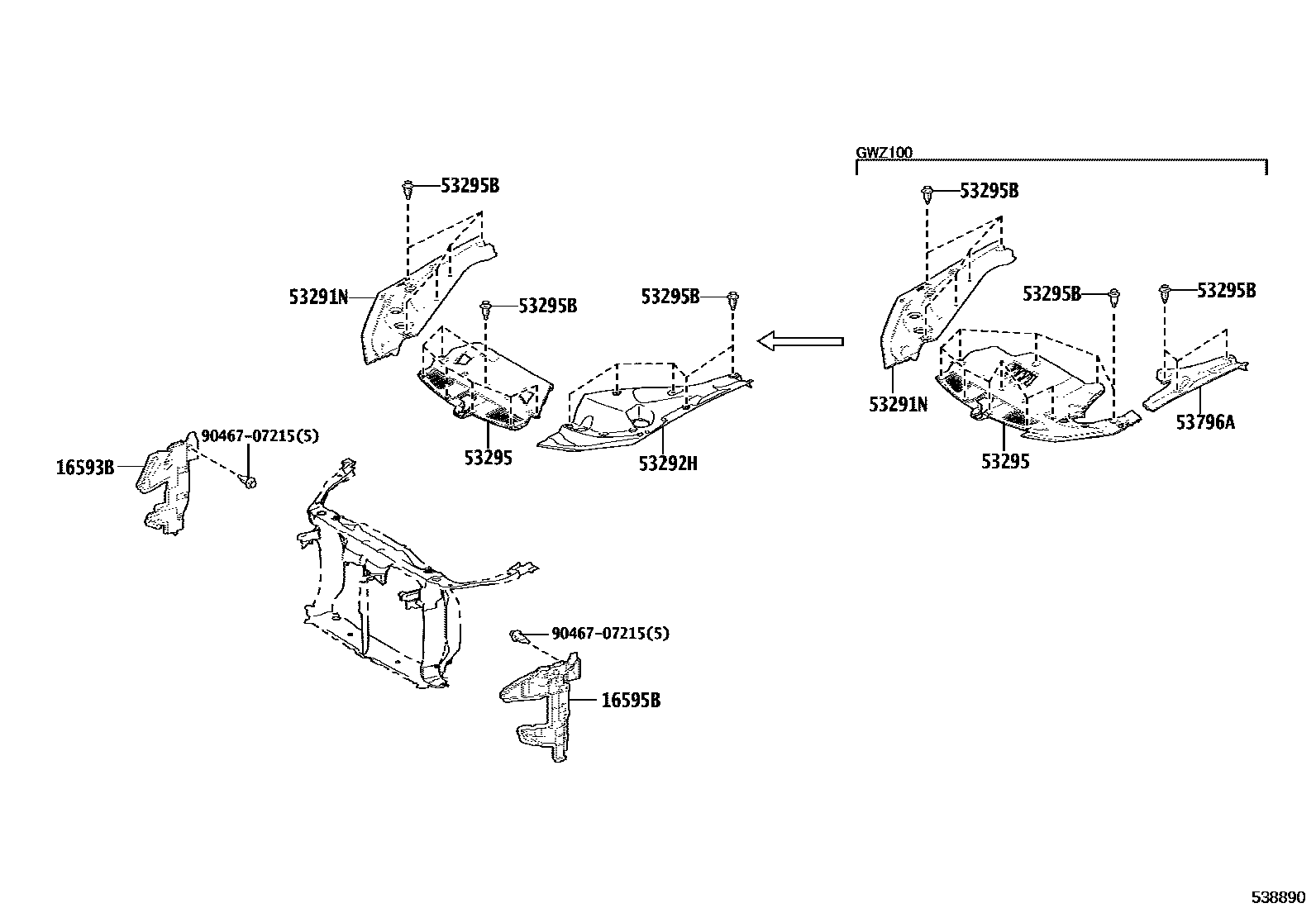

FRONT FENDER APRON & DASH PANEL

0001 1AIRGUIDE & RADIATOR SUPPORT C0002 1RADIATOR SUPPORT & FENDER APR0003 1DASH PANEL

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-31010i8GRFXS..GWZ100202305-202507

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-31010i8GRFXS..GWZ100202305-202507

53291NSEAL, RADIATOR SUPPORT TO FRAME, RH

main53291-11020iURZ100202305-202507

53292HSEAL, RADIATOR SUPPORT TO FRAME, LH

main53292-11020iURZ100202305

53295DEFLECTOR, RADIATOR LOWER AIR

main53295-11010iURZ100202305

main53295-11020iGWZ100202305-202507

53295BCLIP(FOR RADIATOR LOWER AIR DEFLECTOR)

main90467-07217iURZ100202305-202507

53796ACOVER, ENGINE ROOM SIDE, LH

main53796-11050iGWZ100202305-202507

9046707215

main90467-07215

8 parts on this diagram · 3 diagrams in section
