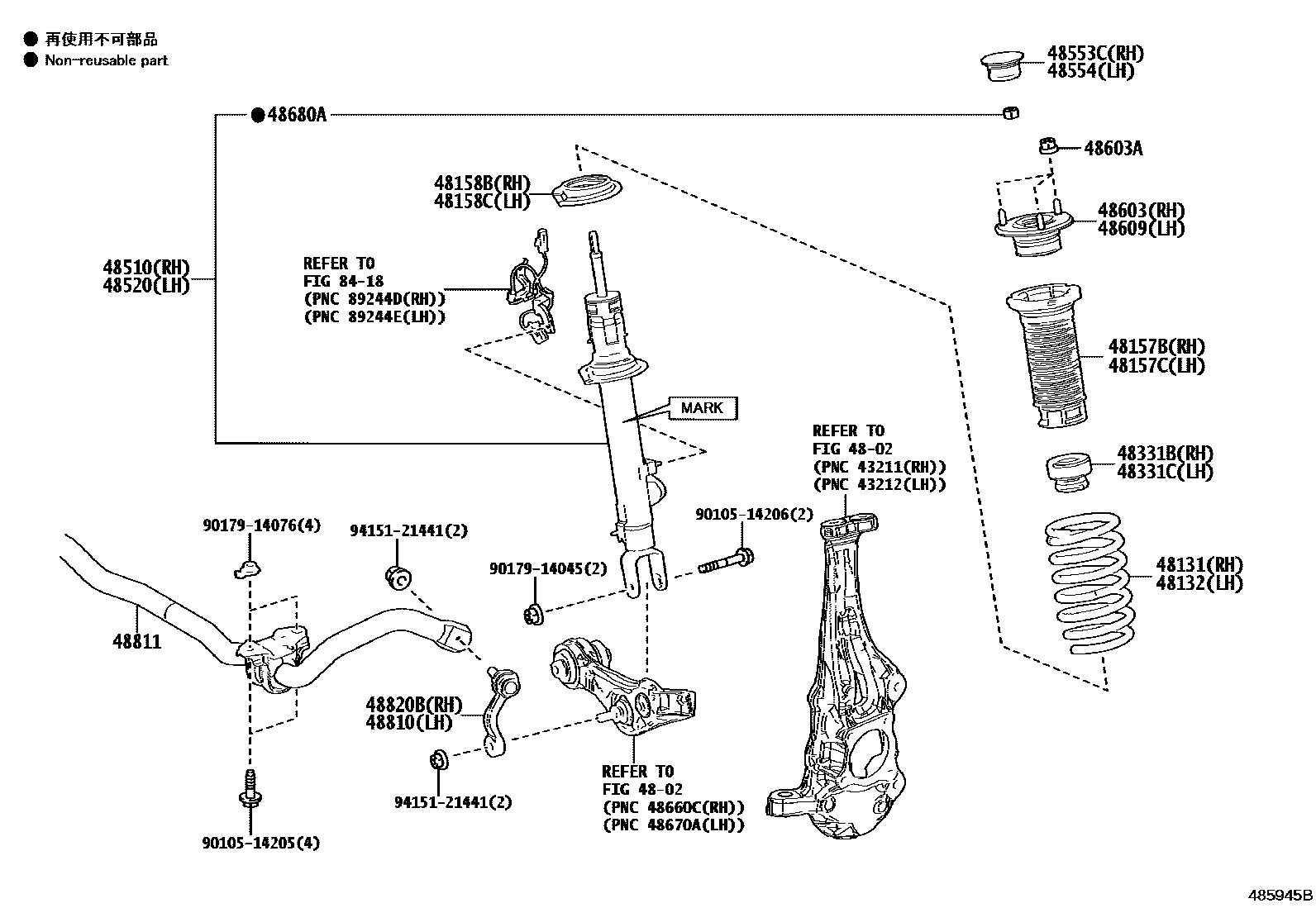

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-11060iGWZ100202305-202507

main48131-11070iURZ100..CONV202305

48132SPRING, FRONT COIL, LH

main48131-11060iGWZ100202305-202507

main48131-11070iURZ100..CONV202305

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-11010iGWZ100202305-202507

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-11010iGWZ100202305-202507

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-30020iGWZ100202305-202507

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-30020iGWZ100202305-202507

48331BBUMPER, FRONT SPRING, RH

main48331-11030iGWZ100202305-202507

48331CBUMPER, FRONT SPRING, LH

main48331-11030iGWZ100202305-202507

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80C24iGWZ100202305-202507

MARK 48510-11060

main48510-80C25iURZ100..CONV202305

MARK 48510-11070

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80774iGWZ100202305-202507

MARK 48520-11060

main48520-80775iURZ100..CONV202305

MARK 48520-11070

48553CCAP, FRONT SHOCK ABSORBER, RH

main48553-50150iGWZ100202305-202507

48554CAP, FRONT SHOCK ABSORBER, LH

main48553-50150iGWZ100202305-202507

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-11010iGWZ100202305-202507

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10033iGWZ100,URZ100202305-202308

main90178-10039iGWZ100202309-202507

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-11010iGWZ100202305-202507

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90177-12002iGWZ100202305-202507

48810LINK ASSY, FRONT STABILIZER, LH

main48810-11010iGWZ100202305-202507

48811BAR, STABILIZER, FRONT

main48804-11040iGWZ100202305-202507

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-11010iGWZ100202305-202507

8418

9010514205

main90105-14205

9010514206

main90105-14206

9017914045

main90179-14045

9017914076

main90179-14076

9415121441

main94151-21441

26 parts on this diagram · 1 diagram in section
