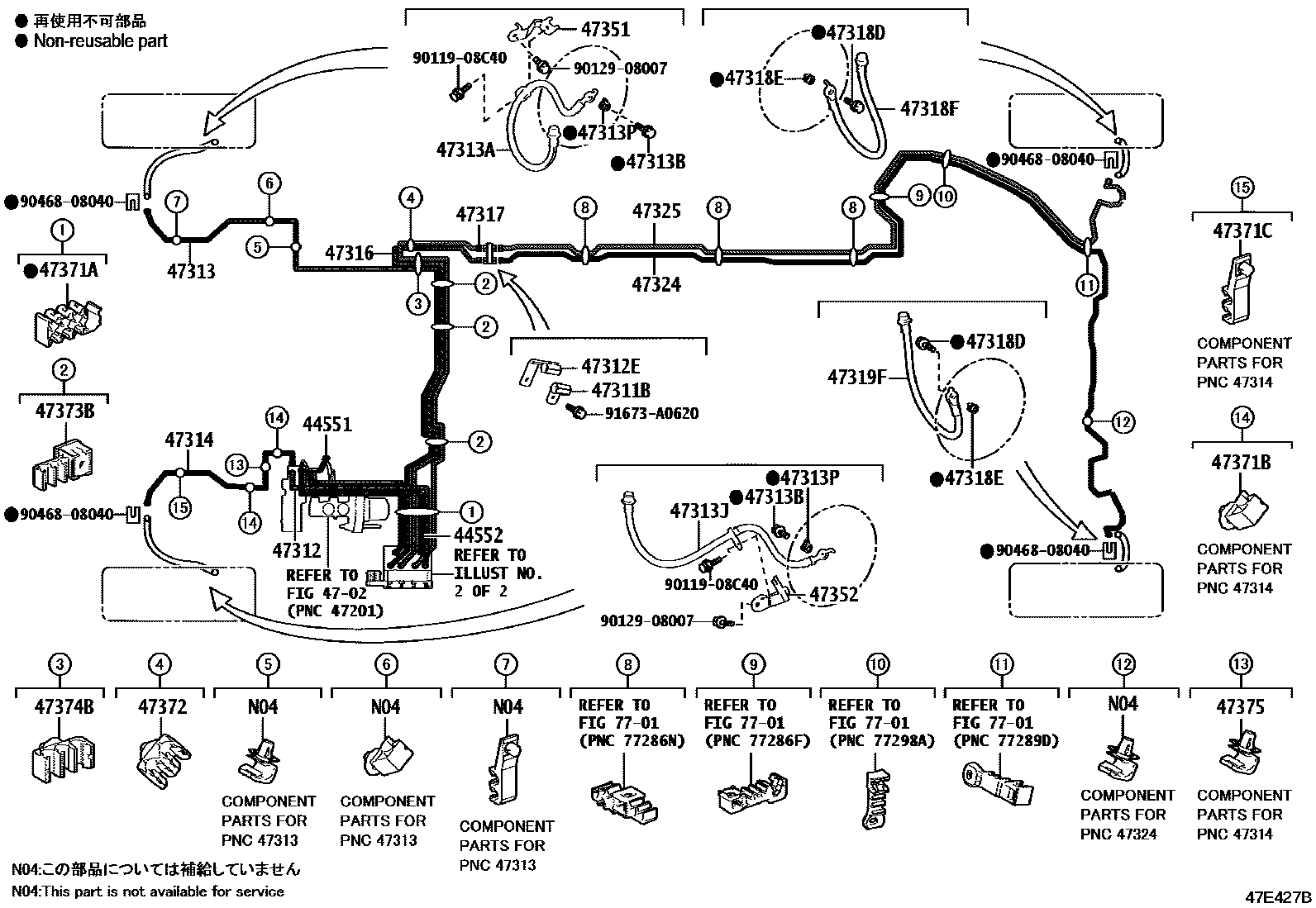

BRAKE TUBE & CLAMP
44551TUBE, BRAKE ACTUATOR, NO.1
44552TUBE, BRAKE ACTUATOR, NO.2
4702
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
47312TUBE, FRONT BRAKE, NO.2
47312EWAY, NO.2(FOR FRONT BRAKE TUBE)
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)
47318EGASKET(FOR REAR FLEXIBLE HOSE)
47318FHOSE, FLEXIBLE(FOR REAR RH)
47319FHOSE, FLEXIBLE(FOR REAR LH)
47324TUBE, REAR BRAKE, NO.4
47325TUBE, REAR BRAKE, NO.5
47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47371ACLAMP, BRAKE TUBE, NO.1
47371BCLAMP, BRAKE TUBE, NO.6
47371CCLAMP, BRAKE TUBE, NO.7
47372CLAMP, BRAKE TUBE, NO.2
47373BCLAMP, BRAKE TUBE, NO.3
47374BCLAMP, BRAKE TUBE, NO.4
47375CLAMP, BRAKE TUBE, NO.5
7701
9011908C40
main90119-08C40
9012908007
main90129-08007
9046808040
main90468-08040
91673A0620
main91673-A0620
34 parts on this diagram · 3 diagrams in section
