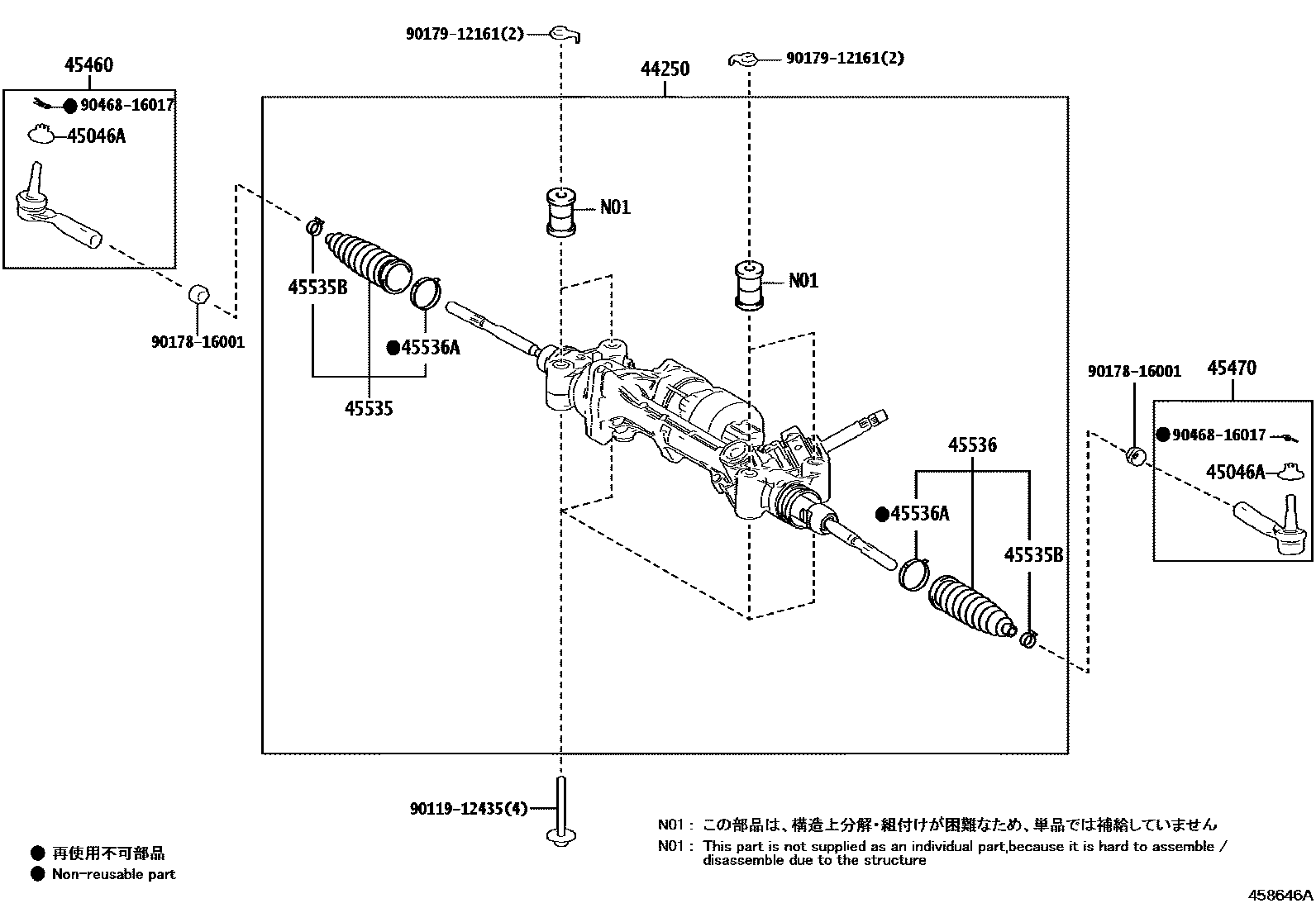

FRONT STEERING GEAR & LINK

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-11072iGWZ100,URZ100..CP202305-202410

main44250-11073iGWZ100202410-202507

main44250-11092iURZ100..CONV202305

main44250-11120iURZ100..CP202309-202410

IE 24MY

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12014iGWZ100202305-202507

45460ROD ASSY, TIE, RH

main45460-19255iGWZ100202305-202507

45470ROD ASSY, TIE, LH

main45470-19085iGWZ100202305-202507

45535BOOT, STEERING RACK, NO.1

main45535-19005iGWZ100202305-202507

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021iGWZ100202305-202507

45536BOOT, STEERING RACK, NO.2

main45535-19005iGWZ100202305-202507

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-02070iGWZ100202305-202507

9011912435

main90119-12435

9017816001

main90178-16001

9017912161

main90179-12161

9046816017

main90468-16017

12 parts on this diagram · 1 diagram in section
