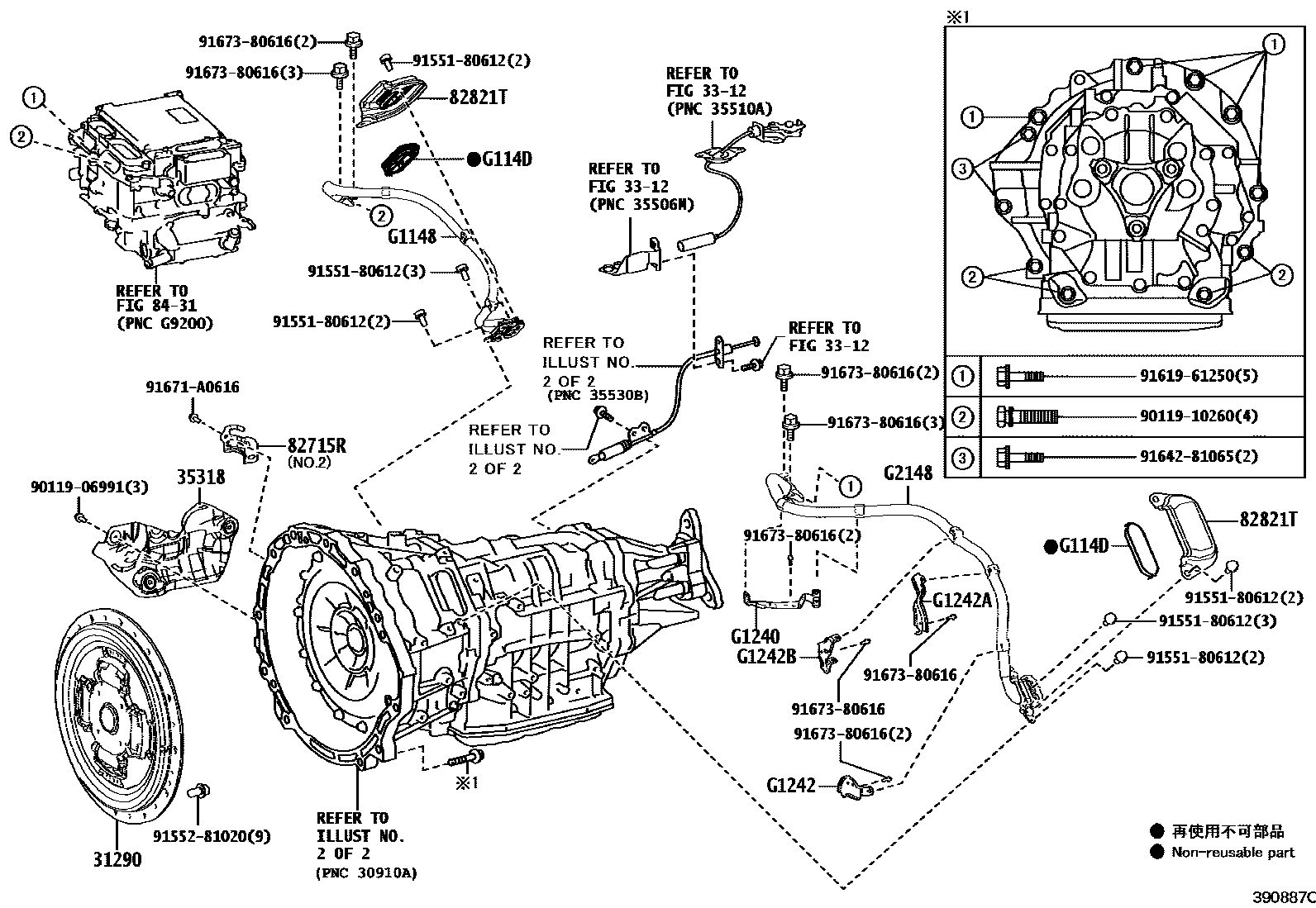

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1 0002 1

31290COVER ASSY, TRANSMISSION INPUT DAMPER

main31290-30010iGWZ100202305-202507

3312

35318INSULATOR, TRANSMISSION OIL PUMP

main35318-11010iGWZ100202305-202507

82715RBRACKET, WIRING HARNESS CLAMP, NO.1

main82715-11010iGWZ100202305-202507

NO.1:REFER ILLUST.

main82715-11020iGWZ100202305-202507

NO.2:REFER ILLUST.

82821TCOVER, CONNECTOR

main82821-11010iGWZ100202305-202507

8431

G1148CABLE, MOTOR

mainG114811020iGWZ100202305-202507

G114DCAP, MOTOR CABLE TERMINAL

mainG114D30010iGWZ100202305-202507

G1240BRACKET ASSY, INVERTER MOTOR CABLE

mainG124011020iGWZ100202305-202507

G1242BRACKET, ENGINE MOTOR CABLE CLAMP

mainG124211030iGWZ100202305-202507

G1242ABRACKET, ENGINE MOTOR CABLE CLAMP

mainG124211040iGWZ100202305-202507

G1242BBRACKET, ENGINE MOTOR CABLE CLAMP

mainG124211050iGWZ100202305-202507

G2148CABLE, GENERATOR

mainG214811020iGWZ100202305-202507

9011906991

main90119-06991

9011910260

main90119-10260

9155180612

main91551-80612

9155281020

main91552-81020

9161961250

main91619-61250

9164281065

main91642-81065

91671A0616

main91671-A0616

9167380616

main91673-80616

21 parts on this diagram · 2 diagrams in section
