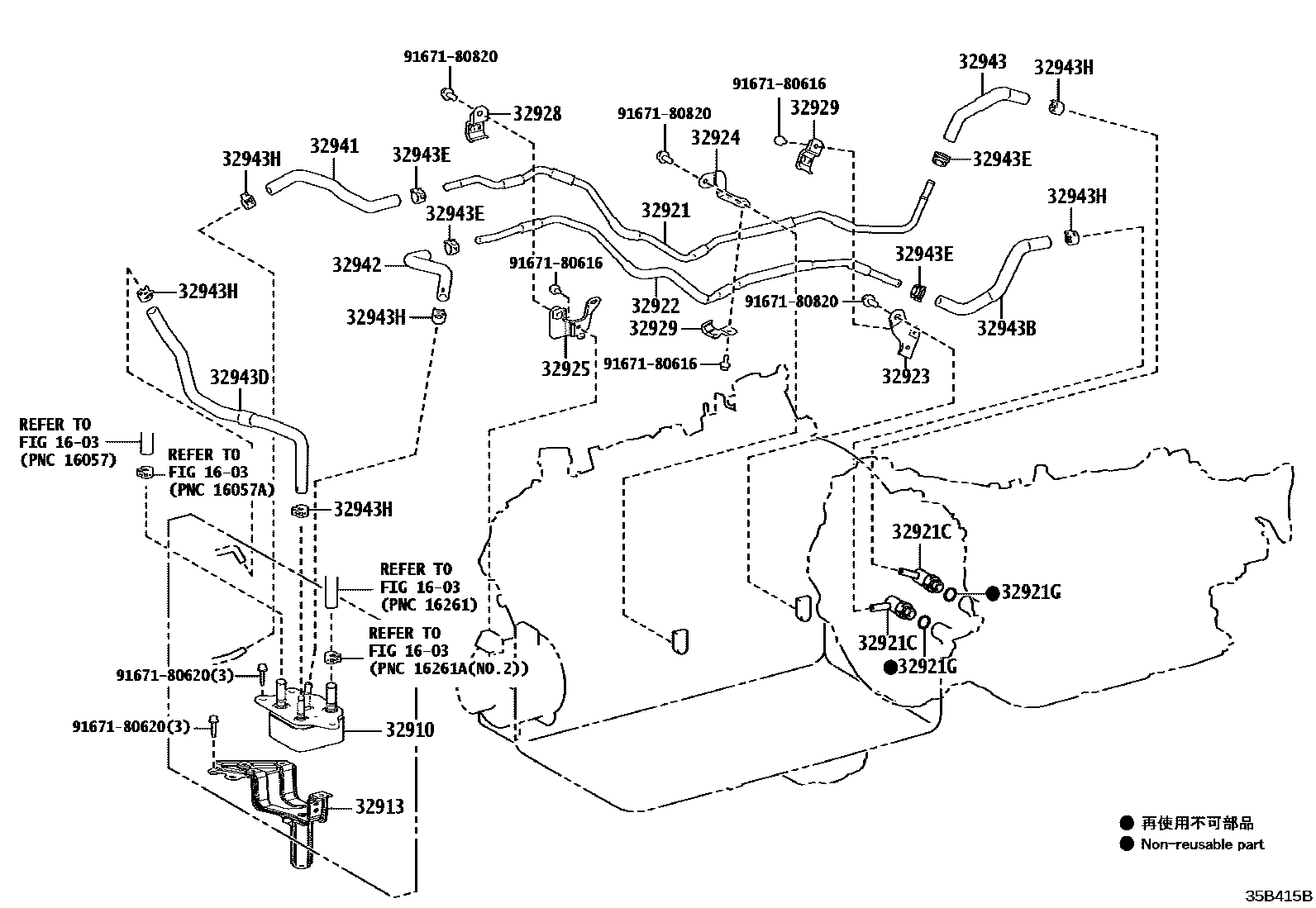

OIL COOLER & TUBE (ATM)

0001 1AGA0E 0002 1AGA0E,W(WATER COOLING &AIR CO

1603

32910COOLER ASSY, OIL

main32910-11010iURZ100202305

32913BRACKET, OIL COOLER

main32913-11020iURZ100202305

TRANSMISSION OIL COOLER-WATER(10STEP) & AIRCOOLING,NO.1:REFER ILLUST.

32921TUBE, OIL COOLER INLET, NO.1

main32921-11010iURZ100202305

32921CUNION(FOR OIL COOLER TUBE)

main90407-14034iURZ100202305

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11030iURZ100202305

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-11010iURZ100202305

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-11010iURZ100202305

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-11010iURZ100202305

32925CLAMP, OIL COOLER TUBE, NO.3

main32925-11010iURZ100202305

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-11020iURZ100202305

32929CLAMP, FLEXIBLE HOSE, NO.2

main32929-30180iURZ100202305

32941HOSE, OIL COOLER INLET, NO.1

main32941-11040iURZ100202305

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-11040iURZ100202305

32943HOSE, TRANSMISSION OIL COOLER, NO.1

main32943-11020iURZ100202305

32943BHOSE, TRANSMISSION OIL COOLER

main32943-11030iURZ100202305

32943DHOSE, TRANSMISSION OIL COOLER, NO.4

main32943-11040iURZ100202305

32943ECLIP, NO.3(FOR OIL COOLER HOSE)

main90466-16004iURZ100202305

32943HCLIP, NO.4(FOR OIL COOLER HOSE)

main90466-16004iURZ100202305

TRANSMISSION OIL COOLER-WATER(10STEP) & AIRCOOLING

9167180616

main91671-80616

9167180620

main91671-80620

9167180820

main91671-80820

22 parts on this diagram · 2 diagrams in section
