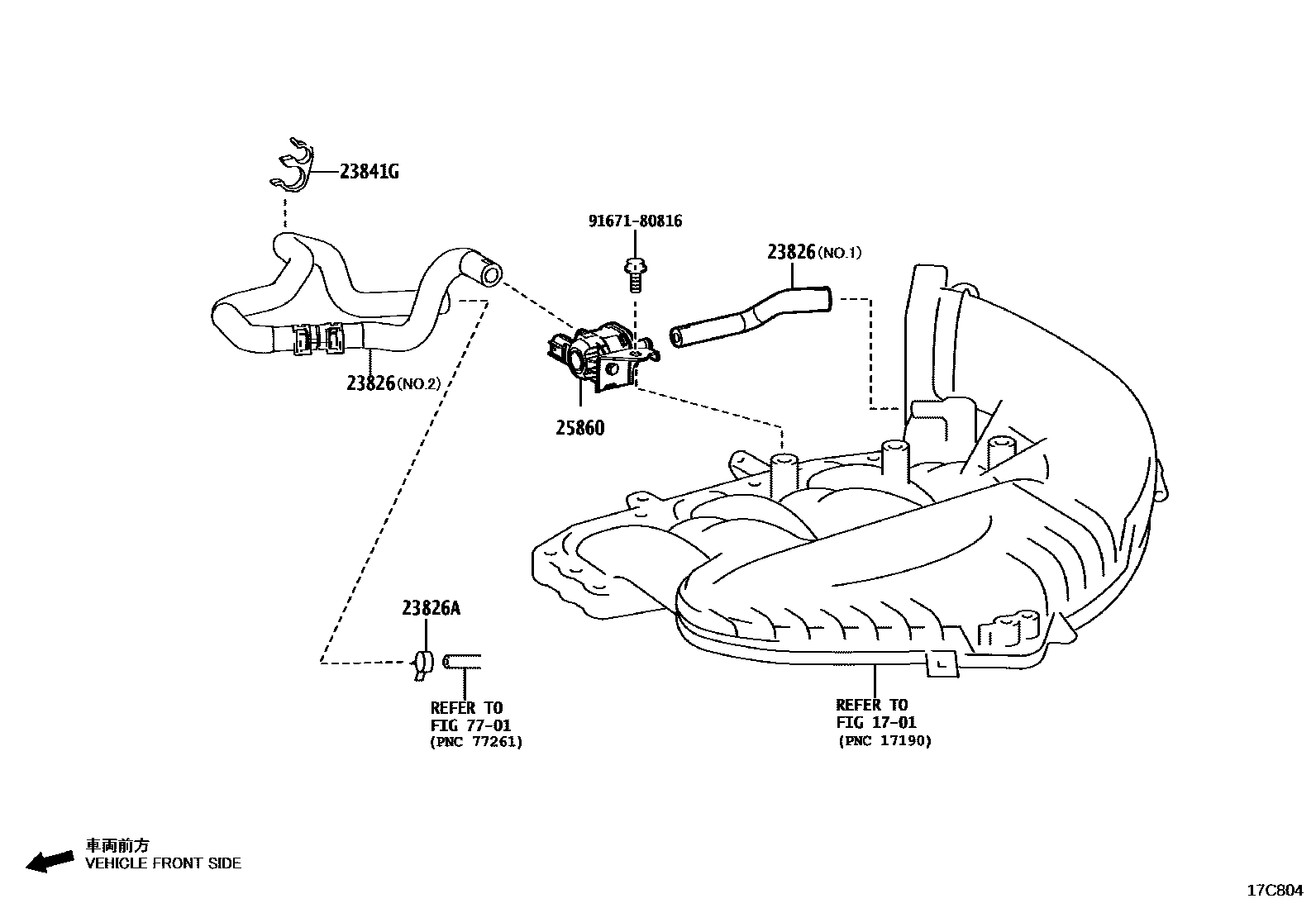

VACUUM PIPING

0001 1 0002 1

1701

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-31330i8GRFXS..GWZ100202305-202507

NO.1

main23826-31360i8GRFXS..GWZ100202305-202507

NO.2

main23826-38040i2URGSE..URZ100202305

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96133-41301i2URGSE..URZ100202305

main96136-41901i8GRFXS..GWZ100202305-202507

23841GCLAMP, FUEL HOSE

main23841-31180i8GRFXS..GWZ100202305-202507

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-31090i8GRFXS..GWZ100202305-202507

main25860-38030i2URGSE..URZ100202305

7701

9167180816

main91671-80816

7 parts on this diagram · 2 diagrams in section
