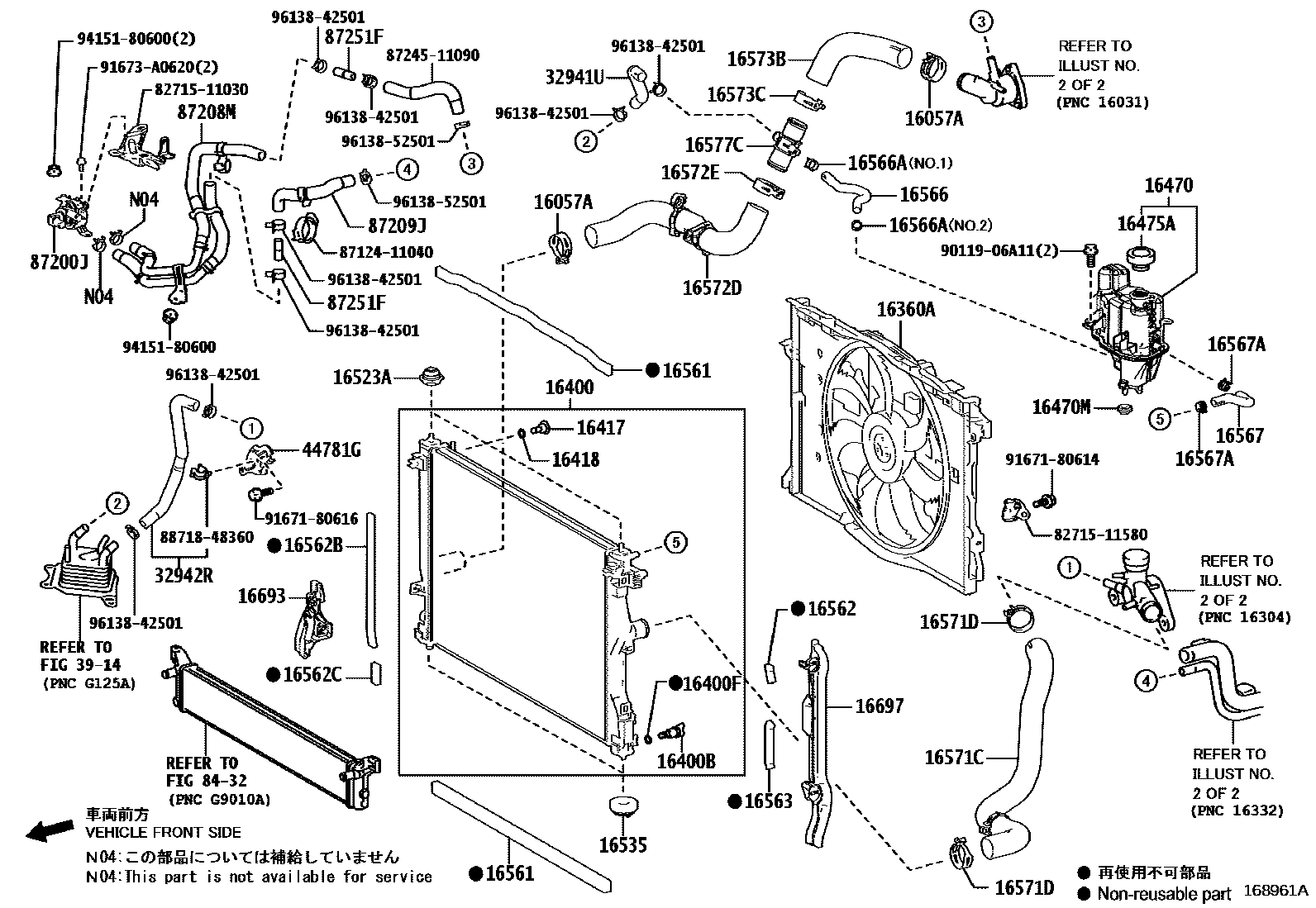

RADIATOR & WATER OUTLET
16057HOSE SUB-ASSY, RADIATOR
16057ACLIP, HOSE(FOR RADIATOR HOSE SUB-ASSY)
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
16360AFAN ASSY, W/MOTOR
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16417COCK
16418PACKING
16470TANK ASSY, RADIATOR RESERVE
16470MGROMMET
16475ACAP, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16561SEAL, RADIATOR TO SUPPORT, NO.1
16562SEAL, RADIATOR TO SUPPORT, NO.2
16562BSEAL, RADIATOR TO SUPPORT, NO.4
16562CSEAL, RADIATOR TO SUPPORT, NO.5
16563SEAL, RADIATOR TO SUPPORT, NO.3
16566HOSE, RESERVE TANK OUTLET
16566ACLIP(FOR RESERVE TANK OUTLET)
NO.1
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
NO.2
16567HOSE(FOR RADIATOR RESERVE TANK)
16567ACLIP(FOR RADIATOR RESERVE TANK HOSE)
16571HOSE, RADIATOR, INLET
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16572HOSE, RADIATOR, OUTLET
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16573BHOSE, RADIATOR, NO.3
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
16577CPIPE, RADIATOR
16693PLATE, RADIATOR SIDE AIR GUIDE, RR RH
16697PLATE, RADIATOR SIDE AIR GUIDE, RR LH
32941UHOSE, OIL COOLER INLET
32942RHOSE, OIL COOLER OUTLET
3914
44781GBRACKET, HOSE
8432
87200JACCESSORY ASSY, HEATER
87208MPIPE SUB-ASSY, WATER
87209JHOSE SUB-ASSY, WATER
87251FJOINT, WATER
8271511030BRACKET,WIRING HARNESS CLAMP
8271511580BRACKET,WIRING HARNESS CLAMP
8712411040CLAMP, HEATER
main87124-11040
8724511090HOSE, HEATER WATER, INLET
8871848360PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-48360
9011906A11
9167180614
9167180616
91673A0620
9415180600
9613842501
9613852501
54 parts on this diagram · 5 diagrams in section
