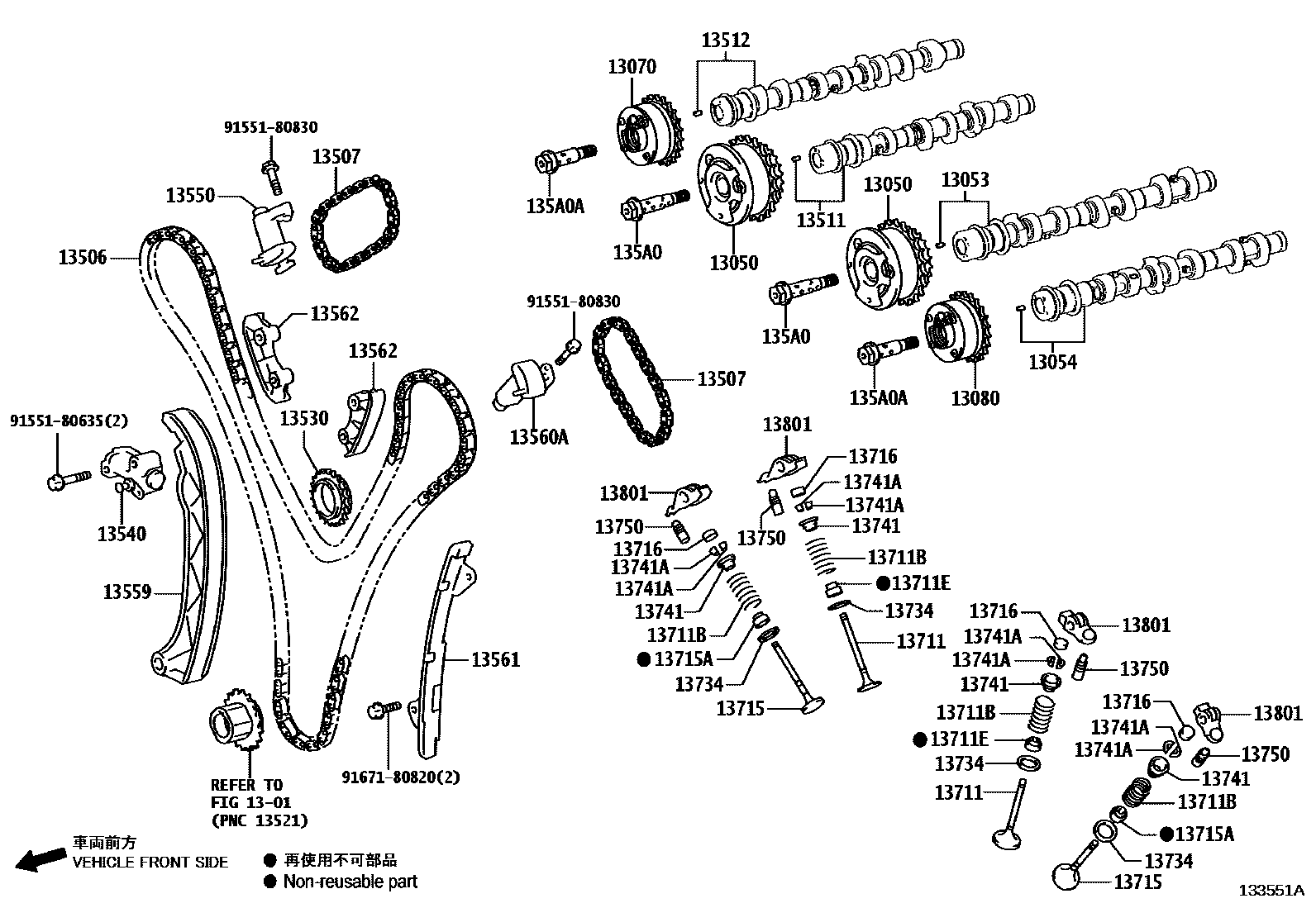

CAMSHAFT & VALVE
1301
13050GEAR ASSY, CAMSHAFT TIMING
13053CAMSHAFT SUB-ASSY, NO.3
13054CAMSHAFT SUB-ASSY, NO.4
13070GEAR ASSY, CAMSHAFT TIMING EXHAUST, RH
13080GEAR ASSY, CAMSHAFT TIMING EXHAUST, LH
13507CHAIN SUB-ASSY, NO.2
13530SPROCKET ASSY, IDLE
13540TENSIONER ASSY, CHAIN, NO.1
13550TENSIONER ASSY, CHAIN, NO.2
13559SLIPPER, CHAIN TENSIONER
13560ATENSIONER ASSY, CHAIN, NO.3
13561DAMPER, CHAIN VIBRATION, NO.1
13562DAMPER, CHAIN VIBRATION, NO.2
135A0BOLT ASSY, CAMSHAFT TIMING GEAR, CENTER(FOR INTAKE)
135A0ABOLT ASSY, CAMSHAFT TIMING GEAR, CENTER(FOR EXHAUST)
13711VALVE, INTAKE
13711BSPRING, COMPRESSION(FOR INNER)
13711ESEAL, INTAKE VALVE STEM OIL
13715VALVE, EXHAUST
13715ASEAL, EXHAUST VALVE STEM OIL
13716CAP, VALVE STEM
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13750ADJUSTER ASSY, VALVE LASH
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
9155180635
main91551-80635
9155180830
main91551-80830
9167180820
main91671-80820
33 parts on this diagram · 2 diagrams in section
