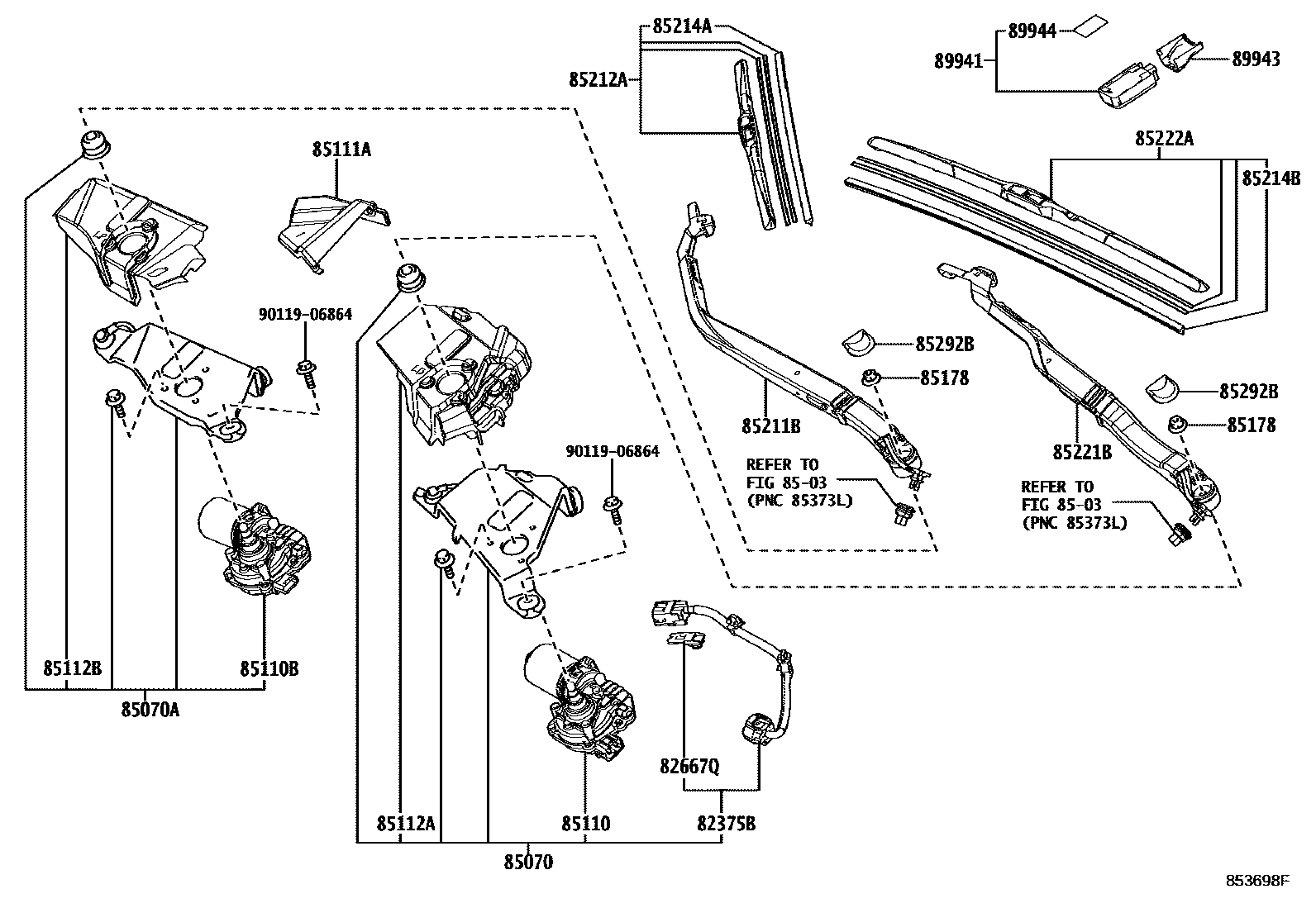

WINDSHIELD WIPER

0001 1 0002 1

82375BWIRE, WIPER MOTOR

main82375-11020iGWZ100,URZ100201701

82667QHOLDER, CONNECTOR

main82666-11160iGWZ100,URZ100201708

8503

85070MOTOR & BRACKET ASSY, FRONT WIPER

main85070-11030iGWZ100,URZ100201701-201807

main85070-11060iGWZ100,URZ100201807

85070AMOTOR & BRACKET ASSY, FRONT WIPER, NO.2

main85070-11040iGWZ100,URZ100201701

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-11050iGWZ100,URZ100201701-202010

sub85110-11051

main85110-11051iGWZ100,URZ100202011

85110BMOTOR ASSY, WINDSHIELD WIPER, NO.2

main85110-11060iGWZ100,URZ100201701-202010

sub85110-11061

main85110-11061iGWZ100,URZ100202011

85111ACOVER, FRONT WIPER MOTOR

main85111-11040iGWZ100,URZ100201701-201807

main85111-11090iGWZ100,URZ100201807

85112ACOVER, WINDSHIELD WIPER SHAFT, NO.1

main85112-11050iGWZ100,URZ100201701

85112BCOVER, WINDSHIELD WIPER SHAFT, NO.2

main85112-11060iGWZ100,URZ100201701

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006iGWZ100,URZ100201701

85211BARM, FRONT WIPER, RH

main85211-11030iGWZ100,URZ100201701-201909

sub85211-11031

main85211-11031iGWZ100,URZ100201910

85212ABLADE, FR WIPER, RH

main85212-11030iGWZ100,URZ100201701

85214ARUBBER, WIPER, RH

main85214-33180iGWZ100,URZ100201701

85214BRUBBER, WIPER, LH

main85214-11010iGWZ100,URZ100201701

85221BARM, FRONT WIPER, LH

main85221-11040iGWZ100,URZ100201701-201909

sub85221-11041

main85221-11041iGWZ100,URZ100201910

85222ABLADE, FR WIPER, LH

main85222-11040iGWZ100,URZ100201701

85292BCAP, FRONT WIPER ARM HEAD

main85292-11010iGWZ100,URZ100201701

89941SENSOR, RAIN

main89941-11010iGWZ100,URZ100201701

89943COVER, RAIN SENSOR

main89943-11010iGWZ100,URZ100201701

89944TAPE, RAIN SENSOR

main89944-42020iGWZ100,URZ100201806

main89944-48010iGWZ100,URZ100201701-201806

9011906864

main90119-06864

22 parts on this diagram · 2 diagrams in section
