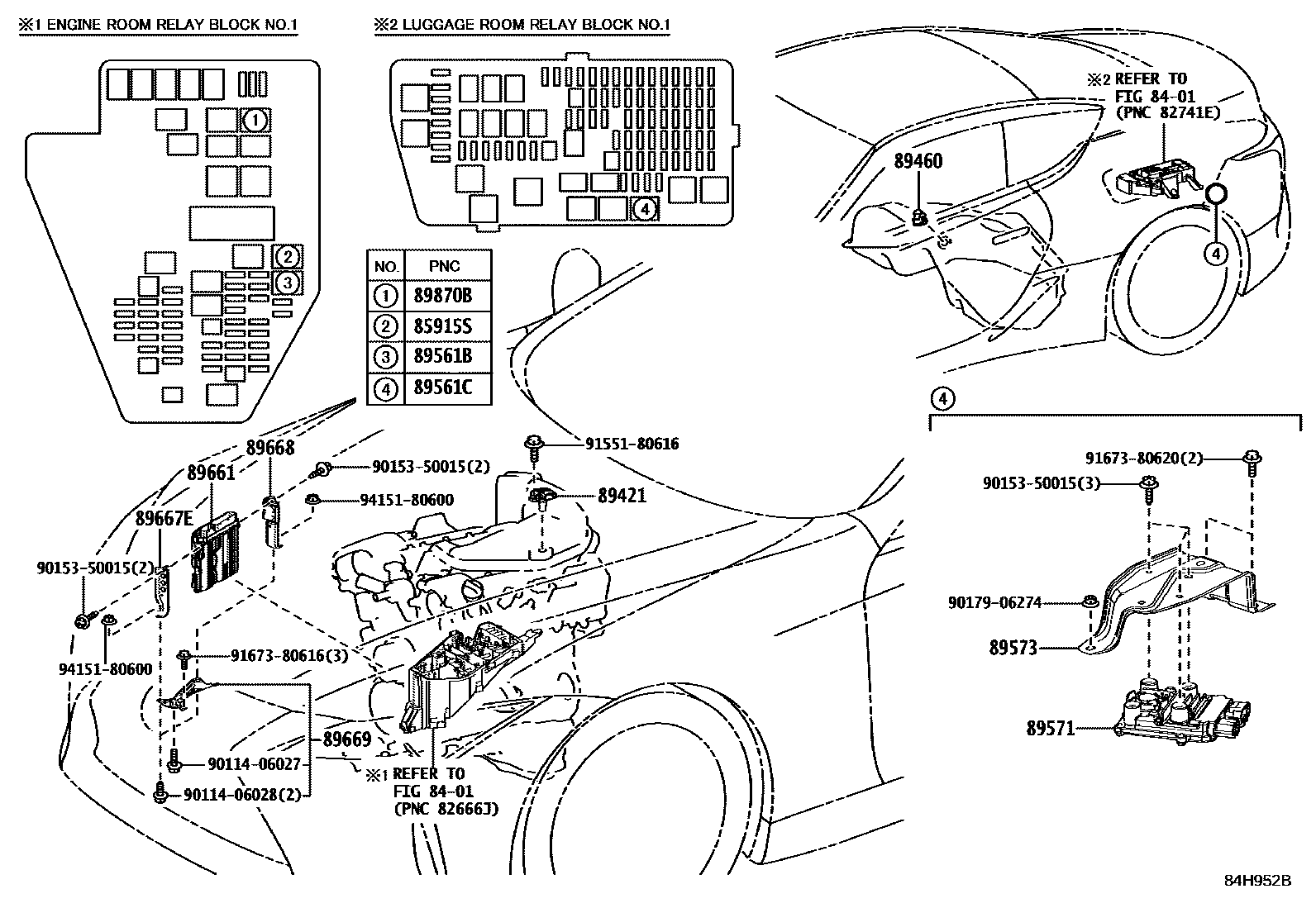

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

8401

85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)

main90987-02027iGWZ100,URZ100201701

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-47010iGWZ100201701

89460SENSOR ASSY, VAPOR PRESSURE

main89461-48020iGWZ100201701

89561BRELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1

main90987-02027iGWZ100,URZ100201701

89561CRELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2

main90987-02027iGWZ100,URZ100201701

89571COMPUTER, FUEL PUMP CONTROL

main89571-58010iGWZ100,URZ100201701

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-11010iGWZ100,URZ100201701

89661COMPUTER, ENGINE CONTROL

main89661-11010iGWZ100201809-201906

DENSO

sub89661-11011

main89661-11060iURZ100201703-201706

sub89661-11061

main89661-11061iURZ100201707-201802

DENSO

sub89661-11062

main89661-11062iURZ100201803-201809

DENSO

sub89661-11063

main89661-11110iGWZ100201701-201703

sub89661-11111

main89661-11111iGWZ100201704-201804

DENSO

sub89661-11112

main89661-11112iGWZ100201805-201809

DENSO

sub89661-11113

main89661-11180iURZ100201809-201811

DENSO

sub89661-11181

main89661-11181iURZ100201812-201906

DENSO

sub89661-11182

main89661-11430iURZ100201906-202004

DENSO

main89661-11490iGWZ100201906-202003

DENSO

main89661-11500iURZ100202004

DENSO

main89661-11560iGWZ100202003

DENSO

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-11010iURZ100201703

main89667-11030iGWZ100201701

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-11010iURZ100201703

main89668-11030iGWZ100201701

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-11010iURZ100201703

main89669-11030iGWZ100201701

89870BRELAY, ELECTRONIC DRIVER UNIT

main90987-02027iGWZ100201701

9011406027

main90114-06027

9011406028

main90114-06028

9015350015

main90153-50015

9017906274

main90179-06274

9155180616

main91551-80616

9167380616

main91673-80616

9167380620

main91673-80620

9415180600

main94151-80600

21 parts on this diagram · 2 diagrams in section
