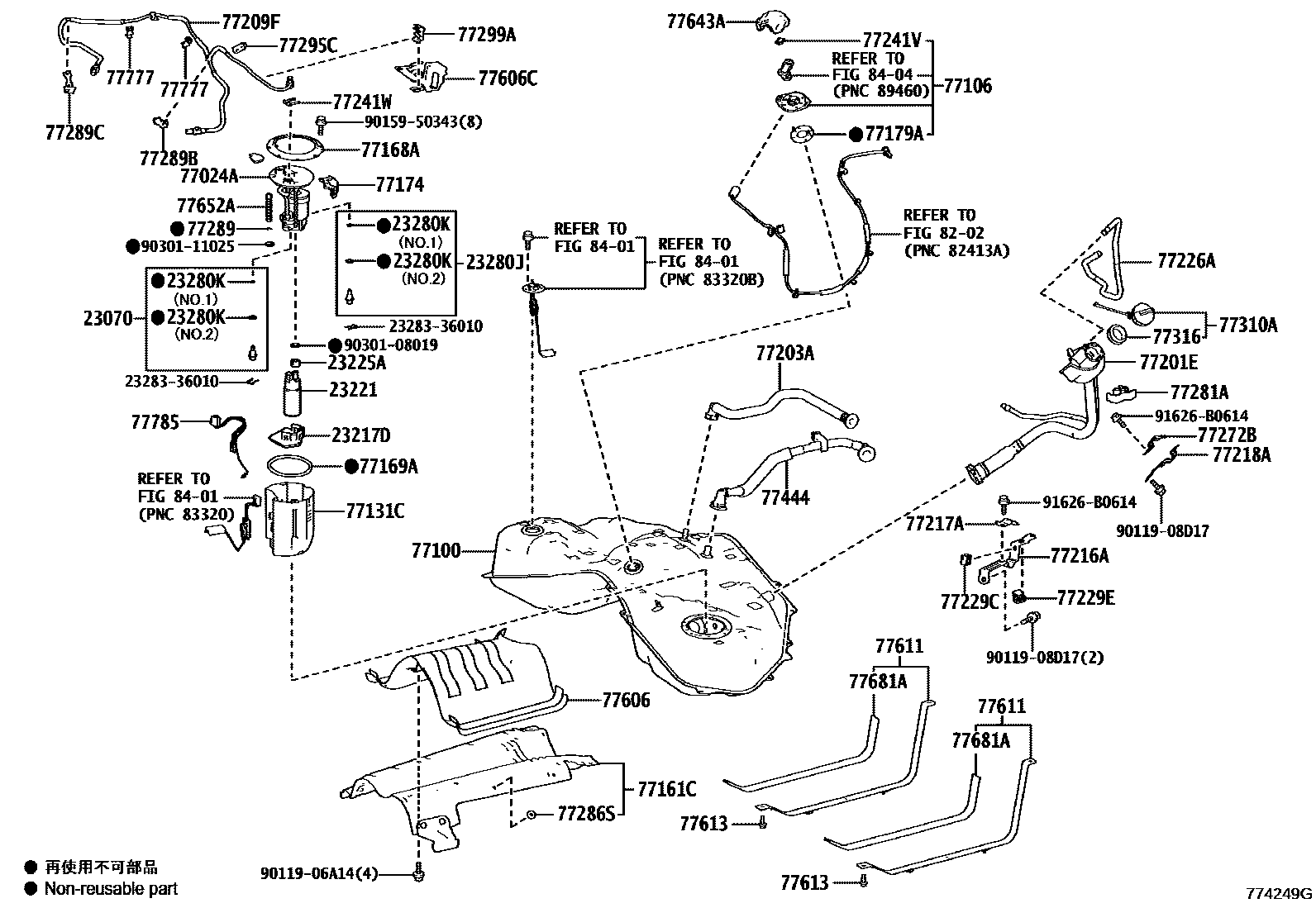

FUEL TANK & TUBE
23070VALVE ASSY, FUEL MAIN
23217DFILTER, FUEL PUMP
23221PUMP, FUEL
23225ASPACER, FUEL PUMP
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1
NO.2
77106PLATE SUB-ASSY, FUEL TANK SIDE, REAR
77131CSUB-TANK, FUEL, NO.1
77161CPROTECTOR, FUEL TANK, LOWER
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77179AGASKET, FUEL TANK BREATHER TUBE
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77203ATUBE SUB-ASSY, FUEL SUCTION
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77226ATUBE, FUEL TANK BREATHER, NO.6
77229CCLAMP, BREATHER TUBE
77229ECLAMP, BREATHER TUBE
77241VCLIP, TUBE JOINT
77241WCLIP, TUBE JOINT
77272BSUPPORT, BREATHER TUBE, NO.1
77281ACLAMP, FUEL FILLER PIPE
77286SCUSHION, FUEL TANK PROTECTOR
77289HOLDER, FUEL TANK PIPE SETTING
77289BCLAMP, FUEL TUBE, NO.3
77289CCLAMP, FUEL TUBE, NO.4
77295CGROMMET, FUEL TUBE
77299ACLAMP, FUEL TUBE, NO.5
77316GASKET, FUEL TANK CAP
77444HOSE, FUEL TANK VENT
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77606CPROTECTOR, FUEL TANK, NO.2
77611BAND, FUEL TANK
77613BOLT, FUEL TANK BAND SET
77643APROTECTOR, FUEL TANK, NO.3
77652ACUSHION, FUEL TANK, NO.2
77681ASEAT, FUEL TANK BAND
77777BRACKET, FUEL TUBE CLAMP
77785HARNESS, FUEL PUMP
8202
8401
8404
2328336010VALVE, VACUUM TRANSMITTING, NO.3
main23283-36010
9011906A14
main90119-06A14
9011908D17
main90119-08D17
9015950343
main90159-50343
9030108019
main90301-08019
9030111025
main90301-11025
91626B0614
main91626-B0614
57 parts on this diagram · 7 diagrams in section
