EPC Data

REAR SEAT & SEAT TRACK

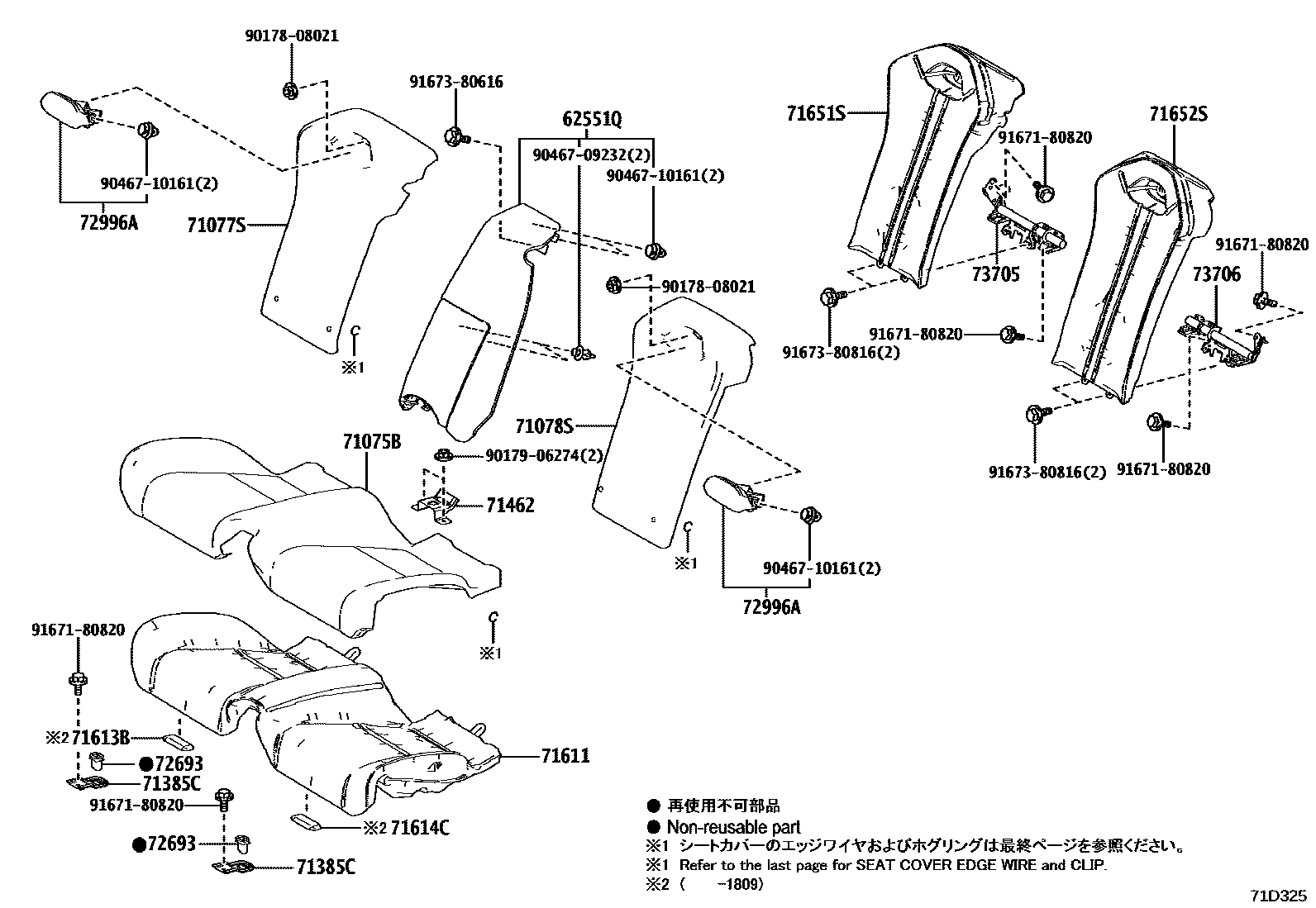

Parts diagram
62551QGARNISH, REAR SEAT SIDE
main62551-11020-C3i201701-202004
BLACK,TRIM2#,3#
main62551-11020-E1i201909-202004
OCHRE,TRIM40
main62551-11020-E1i201701-201909
OCHRE,TRIM4#
main62551-11020-E2i201909-202004
KURO KOHAKU,TRIM41
main62551-11020-J1i201701-202004
BLUE,TRIM8#
main62551-11030-C3i201701-202004
AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP,BLACK,TRIM2#,3#
main62551-11030-E1i201909-202004
AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP,OCHRE,TRIM40
main62551-11030-E1i201701-201909
AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP,OCHRE,TRIM4#
main62551-11030-E2i201909-202004
AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP,KURO KOHAKU,TRIM41
main62551-11030-J1i201701-202004
AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP,BLUE,TRIM8#
main62551-11060-C1i202004
BLACK,TRIM2#,3#,42
main62551-11060-E1i202004
OCHER,TRIM40
main62551-11070-C1i202004
AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP,BLACK,TRIM2#,3#,42
main62551-11070-E1i202004
AUDIO-EMV & *MAR & AM/FM & DVD PLAYER & 13SP,OCHER,TRIM40
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-11120-21i201809-201906
KOREA SPEC&LUSTER YELLOW*()&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),WHITE/MUSTARD YELLOW,TRIM2#
main71075-11120-21i201809-201906
LUSTER YELLOW*()&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),WHITE/MUSTARD YELLOW,TRIM2#
main71075-11120-22i202004
KOREA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK/ORANGE,TRIM42
main71075-11120-22i202004
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK/ORANGE,TRIM42
main71075-11120-23i202004
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK/RED,TRIM3#
main71075-11120-23i202004
KOREA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK/RED,TRIM3#
main71075-11120-25i202202
KOREA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK/RED,TRIM23
main71075-11120-25i202202
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK/RED,TRIM23
main71075-11120-C5i201701-201809
BLACK,TRIM2#
main71075-11120-C6i201701-202004
DK.ROSE,TRIM3#
main71075-11120-C8i201809-201907
BLACK,TRIM2#
main71075-11120-C9i201809-201907
DK.ROSE,TRIM3#
main71075-11120-E2i201701-201909
OCHRE,TRIM4#
main71075-11120-E2i202004
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),OCHRE,TRIM40
main71075-11120-E2i202004
KOREA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),OCHRE,TRIM40
main71075-11120-E2i201909-202004
OCHRE,TRIM40
main71075-11120-E3i201809-201907
OCHER,TRIM4#
main71075-11120-E6i201909-202004
KUROKOHAKU,TRIM41
main71075-11120-J1i201701-202004
BLUE,TRIM8#
main71075-11120-J2i201809-201907
BLUE,TRIM8#
main71075-11130-20i202111
PERSONAL PACKAGE&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/RED,TRIM3#
main71075-11130-20i202111
KOREA SPEC&"S PACKAGE"&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REARSEAT),BLACK/RED,TRIM3#
main71075-11130-20i202111
"S PACKAGE"&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/RED,TRIM3#
main71075-11130-20i202101-202111
"AVIATION"*(D)&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/RED,TRIM3#
main71075-11130-20i202101-202111
KOREA SPEC&"AVIATION"*(D)&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/RED,TRIM3#
main71075-11130-20i202004-202111
"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/RED,TRIM3#
main71075-11130-20i202004-202111
KOREA SPEC&"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/RED,TRIM3#
main71075-11130-21i202111
KOREA SPEC&"S PACKAGE"&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REARSEAT),BLACK/ORANGE,TRIM42
main71075-11130-21i202111
"S PACKAGE"&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/ORANGE,TRIM42
main71075-11130-21i202111
PERSONAL PACKAGE&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/ORANGE,TRIM42
main71075-11130-21i202004-202111
KOREA SPEC&"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/ORANGE,TRIM42
main71075-11130-21i202004-202111
"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/ORANGE,TRIM42
main71075-11130-21i202101-202111
KOREA SPEC&"AVIATION"*(D)&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/ORANGE,TRIM42
main71075-11130-21i202101-202111
"AVIATION"*(D)&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/ORANGE,TRIM42
main71075-11130-22i202101-202111
KOREA SPEC&"AVIATION"*(D)&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/BROWN,TRIM21,22
main71075-11130-22i202101-202111
"AVIATION"*(D)&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/BROWN,TRIM21,22
main71075-11130-C7i201701-202004
"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),DK.ROSE,TRIM3#
main71075-11130-C7i201701-202004
"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)&SEAT HEATER-WITHOUT,DK.ROSE,TRIM3#
main71075-11130-C7i201701-202004
KOREA SPEC&"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),DK.ROSE,TRIM3#
main71075-11130-C9i201701-202111
KOREA SPEC&"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK,TRIM2#
main71075-11130-C9i201701-202111
"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK,TRIM2#
main71075-11130-C9i202111
"S PACKAGE"&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK,TRIM2#
main71075-11130-C9i202111
KOREA SPEC&"S PACKAGE"&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REARSEAT),BLACK,TRIM2#
main71075-11130-C9i202111
PERSONAL PACKAGE&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK,TRIM2#
main71075-11130-C9i201701-202004
"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71075-11130-C9i202101-202111
KOREA SPEC&"AVIATION"*(D)&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK,TRIM20
main71075-11130-C9i202101-202111
"AVIATION"*(D)&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK,TRIM20
main71075-11130-E1i201701-202004
"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)&SEAT HEATER-WITHOUT,OCHRE,TRIM4#
main71075-11130-E1i201701-202004
KOREA SPEC&"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),OCHRE,TRIM4#
main71075-11130-E1i201701-202004
"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),OCHRE,TRIM4#
main71075-11130-E1i202004-202111
KOREA SPEC&"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),OCHRE,TRIM40
main71075-11130-E1i202004-202111
"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),OCHRE,TRIM40
main71075-11130-E1i202101-202111
KOREA SPEC&"AVIATION"*(D)&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),OCHRE,TRIM40
main71075-11130-E1i202101-202111
"AVIATION"*(D)&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),OCHRE,TRIM40
main71075-11130-E1i202111
"S PACKAGE"&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),OCHRE,TRIM40
main71075-11130-E1i202111
PERSONAL PACKAGE&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),OCHRE,TRIM40
main71075-11130-E1i202111
KOREA SPEC&"S PACKAGE"&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REARSEAT),OCHRE,TRIM40
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-11110i201809-201906
KOREA SPEC&LUSTER YELLOW*()&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)
main71077-11110i201809-201906
LUSTER YELLOW*()&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)
main71077-11110-A2i201701-202004
KOREA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),WHITE,TRIM8#
main71077-11110-A2i201701-202004
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),WHITE,TRIM8#
main71077-11110-C3i201701-202004
BLACK,TRIM2#
main71077-11110-C5i202004
BLACK/LT.GRAY,TRIM2#
main71077-11110-C6i202004
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK/ORANGE,TRIM42
main71077-11110-C6i202004
KOREA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK/ORANGE,TRIM42
main71077-11110-C8i202202
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK/MD.GRAY/RED,TRIM23
main71077-11110-C8i202202
KOREA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK/MD.GRAY/RED,TRIM23
main71077-11110-D2i201701-202004
DK.ROSE,TRIM3#
main71077-11110-D4i202004
KOREA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),RED,TRIM3#
main71077-11110-D4i202004
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),RED,TRIM3#
main71077-11110-E2i201909-202004
LT.OCHRE,TRIM40
main71077-11110-E2i201701-201909
LT.OCHRE,TRIM4#
main71077-11110-E4i201909-202004
SADDLE TAN,TRIM41
main71077-11110-E5i202004
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),LT.OCHRE,TRIM40
main71077-11110-E5i202004
LT.OCHRE,TRIM4#
main71077-11110-E5i202004
KOREA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),LT.OCHRE,TRIM40
main71077-11120-C5i201701-202004
KOREA SPEC&"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK,TRIM2#
main71077-11120-C5i201701-202004
"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK,TRIM2#
main71077-11120-C5i201701-202004
"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71077-11120-C7i202111
"S PACKAGE"&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/ORANGE,TRIM42
main71077-11120-C7i202111
KOREA SPEC&"S PACKAGE"&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REARSEAT),BLACK/ORANGE,TRIM42
main71077-11120-C7i202111
PERSONAL PACKAGE&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/ORANGE,TRIM42
main71077-11120-C7i202101-202111
"AVIATION"*(D)&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/ORANGE,TRIM42
main71077-11120-C7i202101-202111
KOREA SPEC&"AVIATION"*(D)&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/ORANGE,TRIM42
main71077-11120-C7i202004-202111
"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/ORANGE,TRIM42
main71077-11120-C7i202004-202111
KOREA SPEC&"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/ORANGE,TRIM42
main71077-11120-C8i202111
"S PACKAGE"&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/LT.GRAY,TRIM2#
main71077-11120-C8i202004-202111
KOREA SPEC&"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/LT.GRAY,TRIM2#
main71077-11120-C8i202004-202111
"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/LT.GRAY,TRIM2#
main71077-11120-C8i202101-202111
KOREA SPEC&"AVIATION"*(D)&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/LT.GRAY,TRIM20
main71077-11120-C8i202101-202111
"AVIATION"*(D)&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/LT.GRAY,TRIM20
main71077-11120-C8i202111
PERSONAL PACKAGE&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/LT.GRAY,TRIM2#
main71077-11120-C8i202111
KOREA SPEC&"S PACKAGE"&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REARSEAT),BLACK/LT.GRAY,TRIM2#
main71077-11120-C9i202101-202111
KOREA SPEC&"AVIATION"*(D)&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLK/MD.GRAY/SADDLE/BWN,TRIM21,22
main71077-11120-C9i202101-202111
"AVIATION"*(D)&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLK/MD.GRAY/SADDLE/BWN,TRIM21,22
main71077-11120-D2i201701-202004
KOREA SPEC&"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),DK.ROSE,TRIM3#
main71077-11120-D2i201701-202004
"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)&SEAT HEATER-WITHOUT,DK.ROSE,TRIM3#
main71077-11120-D2i201701-202004
"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),DK.ROSE,TRIM3#
main71077-11120-D4i202004-202111
KOREA SPEC&"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),RED,TRIM3#
main71077-11120-D4i202111
KOREA SPEC&"S PACKAGE"&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REARSEAT),RED,TRIM3#
main71077-11120-D4i202111
"S PACKAGE"&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),RED,TRIM3#
main71077-11120-D4i202111
PERSONAL PACKAGE&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),RED,TRIM3#
main71077-11120-D4i202004-202111
"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),RED,TRIM3#
main71077-11120-D4i202101-202111
KOREA SPEC&"AVIATION"*(D)&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),RED,TRIM3#
main71077-11120-D4i202101-202111
"AVIATION"*(D)&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),RED,TRIM3#
main71077-11120-E1i201701-202004
KOREA SPEC&"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),LT.OCHRE,TRIM4#
main71077-11120-E1i201701-202004
"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),LT.OCHRE,TRIM4#
main71077-11120-E1i201701-202004
"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)&SEAT HEATER-WITHOUT,LT.OCHRE,TRIM4#
main71077-11120-E2i202111
"S PACKAGE"&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),LT.OCHRE,TRIM40
main71077-11120-E2i202004-202111
KOREA SPEC&"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),LT.OCHRE,TRIM40
main71077-11120-E2i202004-202111
"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),LT.OCHRE,TRIM40
main71077-11120-E2i202101-202111
KOREA SPEC&"AVIATION"*(D)&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),LT.OCHRE,TRIM40
main71077-11120-E2i202101-202111
"AVIATION"*(D)&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),LT.OCHRE,TRIM40
main71077-11120-E2i202111
PERSONAL PACKAGE&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),LT.OCHRE,TRIM40
main71077-11120-E2i202111
KOREA SPEC&"S PACKAGE"&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REARSEAT),LT.OCHRE,TRIM40
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-11010i201809-201906
LUSTER YELLOW*()&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)
main71078-11010i201809-201906
KOREA SPEC&LUSTER YELLOW*()&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)
main71078-11010-A2i201701-202004
KOREA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),WHITE,TRIM8#
main71078-11010-A2i201701-202004
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),WHITE,TRIM8#
main71078-11010-C3i201701-202004
BLACK,TRIM2#
main71078-11010-C5i202004
BLACK/LT.GRAY,TRIM2#
main71078-11010-C6i202004
KOREA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK/ORANGE,TRIM42
main71078-11010-C6i202004
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK/ORANGE,TRIM42
main71078-11010-C8i202202
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK/MD.GRAY/RED,TRIM23
main71078-11010-C8i202202
KOREA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLACK/MD.GRAY/RED,TRIM23
main71078-11010-D2i201701-202004
DK.ROSE,TRIM3#
main71078-11010-D4i202004
KOREA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),RED,TRIM3#
main71078-11010-D4i202004
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),RED,TRIM3#
main71078-11010-E2i201701-201909
LT.OCHRE,TRIM4#
main71078-11010-E2i201909-202004
LT.OCHRE,TRIM40
main71078-11010-E4i201909-202004
SADDLE TAN,TRIM41
main71078-11010-E5i202004
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),LT.OCHRE,TRIM40
main71078-11010-E5i202004
LT.OCHRE,TRIM4#
main71078-11010-E5i202004
KOREA SPEC&SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),LT.OCHRE,TRIM40
main71078-11020-C5i201701-202004
"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71078-11020-C5i201701-202004
"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK,TRIM2#
main71078-11020-C5i201701-202004
KOREA SPEC&"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK,TRIM2#
main71078-11020-C7i202004-202111
"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/ORANGE,TRIM42
main71078-11020-C7i202101-202111
KOREA SPEC&"AVIATION"*(D)&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/ORANGE,TRIM42
main71078-11020-C7i202101-202111
"AVIATION"*(D)&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/ORANGE,TRIM42
main71078-11020-C7i202111
KOREA SPEC&"S PACKAGE"&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REARSEAT),BLACK/ORANGE,TRIM42
main71078-11020-C7i202111
PERSONAL PACKAGE&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/ORANGE,TRIM42
main71078-11020-C7i202111
"S PACKAGE"&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/ORANGE,TRIM42
main71078-11020-C7i202004-202111
KOREA SPEC&"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/ORANGE,TRIM42
main71078-11020-C8i202111
KOREA SPEC&"S PACKAGE"&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REARSEAT),BLACK/LT.GRAY,TRIM2#
main71078-11020-C8i202111
PERSONAL PACKAGE&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/LT.GRAY,TRIM2#
main71078-11020-C8i202111
"S PACKAGE"&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/LT.GRAY,TRIM2#
main71078-11020-C8i202101-202111
"AVIATION"*(D)&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/LT.GRAY,TRIM20
main71078-11020-C8i202101-202111
KOREA SPEC&"AVIATION"*(D)&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/LT.GRAY,TRIM20
main71078-11020-C8i202004-202111
KOREA SPEC&"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/LT.GRAY,TRIM2#
main71078-11020-C8i202004-202111
"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/LT.GRAY,TRIM2#
main71078-11020-C9i202101-202111
"AVIATION"*(D)&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLK/MD.GRAY/SADDLE/BWN,TRIM21,22
main71078-11020-C9i202101-202111
KOREA SPEC&"AVIATION"*(D)&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLK/MD.GRAY/SADDLE/BWN,TRIM21,22
main71078-11020-D2i201701-202004
"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),DK.ROSE,TRIM3#
main71078-11020-D2i201701-202004
"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)&SEAT HEATER-WITHOUT,DK.ROSE,TRIM3#
main71078-11020-D2i201701-202004
KOREA SPEC&"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),DK.ROSE,TRIM3#
main71078-11020-D4i202111
KOREA SPEC&"S PACKAGE"&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REARSEAT),RED,TRIM3#
main71078-11020-D4i202004-202111
KOREA SPEC&"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),RED,TRIM3#
main71078-11020-D4i202004-202111
"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),RED,TRIM3#
main71078-11020-D4i202101-202111
KOREA SPEC&"AVIATION"*(D)&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),RED,TRIM3#
main71078-11020-D4i202101-202111
"AVIATION"*(D)&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),RED,TRIM3#
main71078-11020-D4i202111
"S PACKAGE"&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),RED,TRIM3#
main71078-11020-D4i202111
PERSONAL PACKAGE&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),RED,TRIM3#
main71078-11020-E1i201701-202004
"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)&SEAT HEATER-WITHOUT,LT.OCHRE,TRIM4#
main71078-11020-E1i201701-202004
"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),LT.OCHRE,TRIM4#
main71078-11020-E1i201701-202004
KOREA SPEC&"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),LT.OCHRE,TRIM4#
main71078-11020-E2i202004-202111
KOREA SPEC&"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),LT.OCHRE,TRIM40
main71078-11020-E2i202111
PERSONAL PACKAGE&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),LT.OCHRE,TRIM40
main71078-11020-E2i202111
KOREA SPEC&"S PACKAGE"&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REARSEAT),LT.OCHRE,TRIM40
main71078-11020-E2i202111
"S PACKAGE"&FRONT SEAT-SPORT&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),LT.OCHRE,TRIM40
main71078-11020-E2i202101-202111
"AVIATION"*(D)&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),LT.OCHRE,TRIM40
main71078-11020-E2i202101-202111
KOREA SPEC&"AVIATION"*(D)&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),LT.OCHRE,TRIM40
main71078-11020-E2i202004-202111
"S PACKAGE"&SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),LT.OCHRE,TRIM40
71385CBRACKET, REAR SEAT CUSHION HOLDER
main71385-24010i201701
71462SPRING, REAR SEAT CUSHION, NO.2
main71462-11010i201701
71611PAD, REAR SEAT CUSHION
main71503-11010i201701-201808
sub71503-11011
main71503-11011i201809
71613BPAD, REAR SEAT CUSHION, RH
main71613-11010i201701-201809
71614CPAD, REAR SEAT CUSHION, LH
main71614-11010i201701-201809
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71507-11010i201701
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71508-11010i201701
72693HOOK, REAR SEAT CUSHION LOCK
main72693-12080i201701
72996ACOVER, REAR SEATBACK
main72996-11010-C1i201701-202202
BLACK,TRIM2#,3#,42
main72996-11010-C1i202202
BLACK,TRIM20,21,22,3#,42
main72996-11010-D0i202202
DK. ROSE,TRIM23
main72996-11010-E0i201701
OCHRE,TRIM40
main72996-11010-E1i201909-202004
KUROKOHAKU,TRIM41
main72996-11010-E2i202004
ORANGE,TRIM42
main72996-11010-J0i201701-202004
BLUE,TRIM8#
73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
main73705-11010i201701
73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
main73706-11010i201701
9017808021
main90178-08021
9017906274
main90179-06274
9046709232
main90467-09232
9046710161
main90467-10161
9167180820
main91671-80820
9167380616
main91673-80616
9167380816
main91673-80816

22 parts on this diagram · 2 diagrams in section

REAR SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
