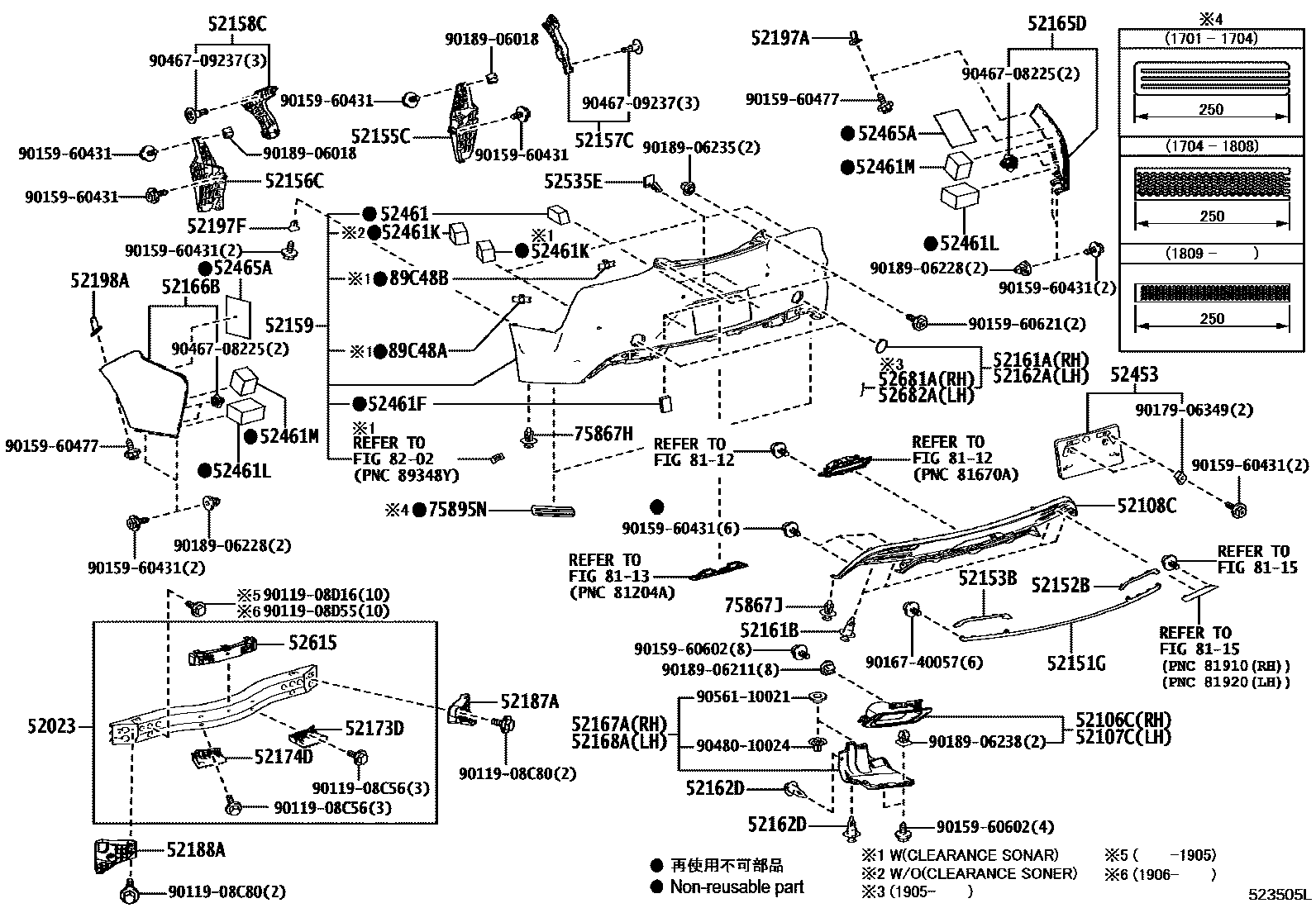

REAR BUMPER & BUMPER STAY

0001 1 0002 1KOREA SPEC 0003 1 0004 1KOREA SPEC 0005 1W(REAR PERFORMANCE ROD) 0006 1KOREA SPEC:W(REAR PERFORMANCE

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-11030iGWZ100,URZ100201701

52106CEXTENSION SUB-ASSY, REAR BUMPER, RH

main52106-11020iGWZ100,URZ100201701

52107CEXTENSION SUB-ASSY, REAR BUMPER, LH

main52107-11020iGWZ100,URZ100201701

52108CEXTENSION SUB-ASSY, REAR BUMPER, CENTER

main52108-11010iGWZ100,URZ100201701-202110

sub52108-11011

main52108-11011iGWZ100,URZ100202111

NO PAINT REQ.

52151GEXTENSION, REAR BUMPER

main52151-11040iGWZ100,URZ100201701

52152BEXTENSION, REAR BUMPER, RH

main52152-11030iGWZ100,URZ100201701

52153BEXTENSION, REAR BUMPER, LH

main52153-11030iGWZ100,URZ100201701

52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH

main52155-11010iGWZ100,URZ100201701

52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH

main52156-11010iGWZ100,URZ100201701

52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-11010iGWZ100,URZ100201701

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-11010iGWZ100,URZ100201701

52159COVER, REAR BUMPER

main52159-11910iGWZ100,URZ100201701-202004

main52159-11920iGWZ100,URZ100202004

PAINT REQ.

52161APIECE, REAR BUMPER, RH

main52161-11900iGWZ100,URZ100201701-201908

sub52161-11901

main52161-11901iGWZ100,URZ100201908

52161BPIECE, REAR BUMPER

main52161-16010iGWZ100,URZ100201701

sub52161-0K040

52162APIECE, REAR BUMPER, LH

main52162-11900iGWZ100,URZ100201701-201908

sub52162-11901

main52162-11901iGWZ100,URZ100201908

52162DPIECE, REAR BUMPER

main52161-16010iGWZ100,URZ100201701

sub52161-0K040

52165DEXTENSION, REAR BUMPER CORNER, RH

main52165-11901iGWZ100,URZ100201701

52166BEXTENSION, REAR BUMPER CORNER, LH

main52166-11901iGWZ100,URZ100201701

52167ASUPPORT, REAR BUMPER SIDE, NO.4 RH

main52167-11010iGWZ100,URZ100201701

52168ASUPPORT, REAR BUMPER SIDE, NO.4 LH

main52168-11010iGWZ100,URZ100201701

52173DREINFORCEMENT, REAR BUMPER BAR, RH

main52173-11020iGWZ100,URZ100201701

52174DREINFORCEMENT, REAR BUMPER BAR, LH

main52174-11020iGWZ100,URZ100201701

52187AREINFORCEMENT, REAR BUMPER ARM, RH

main52187-11010iGWZ100,URZ100201701

52188AREINFORCEMENT, REAR BUMPER ARM, LH

main52188-11010iGWZ100,URZ100201701

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-53040iGWZ100,URZ100201701

52197FBRACKET, REAR BUMPER SEAL

main52197-62020iGWZ100,URZ100201701

52198ABRACKET, REAR BUMPER SEAL, LH

main52198-53020iGWZ100,URZ100201701

52453GUARD, REAR BUMPER, CENTER

main52453-11020iGWZ100,URZ100201701

KOREA SPEC

52461PAD, REAR BUMPER, CENTER

main52461-11010iGWZ100,URZ100201701

52461FPAD, REAR BUMPER

main52461-11020iGWZ100,URZ100201701

52461KPAD, REAR BUMPER, NO.1

main52461-11030iGWZ100,URZ100201701

52461LPAD, REAR BUMPER, NO.2

main52461-11040iGWZ100,URZ100201701

52461MPAD, REAR BUMPER, NO.3

main52462-53030iGWZ100,URZ100201701

52465AINSERT, REAR BUMPER PAD

main52465-11010iGWZ100,URZ100201701

52535ERETAINER, REAR BUMPER SIDE

main52535-28020iGWZ100,URZ100201701

52615ABSORBER, REAR BUMPER ENERGY

main52615-11010iGWZ100,URZ100201701

52681AEXTENSION, REAR BUMPER ARM, RH

main52681-11030iGWZ100,URZ100201908

52682AEXTENSION, REAR BUMPER ARM, LH

main52682-11010iGWZ100,URZ100201908

75867HCLIP, ROCKER PANEL MOULDING

main75867-33050iGWZ100,URZ100201701

75867JCLIP, ROCKER PANEL MOULDING, NO.2

main75867-33050iGWZ100,URZ100201701

75895NTAPE, MOULDING, NO.1

main75895-28010iGWZ100,URZ100201701-201704

main75895-30050iGWZ100,URZ100201704-201808

main75895-53010iGWZ100,URZ100201809

8112

8113

8115

8202

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

9011908C56

main90119-08C56

9011908C80

main90119-08C80

9011908D16

main90119-08D16

9011908D55

main90119-08D55

9015960431

main90159-60431

9015960477

main90159-60477

9015960602

main90159-60602

9015960621

main90159-60621

9016740057

main90167-40057

9017906349

main90179-06349

9018906018

main90189-06018

9018906211

main90189-06211

9018906228

main90189-06228

9018906235

main90189-06235

9018906238

main90189-06238

9046708225

main90467-08225

9046709237

main90467-09237

9048010024

main90480-10024

9056110021

main90561-10021

66 parts on this diagram · 6 diagrams in section
