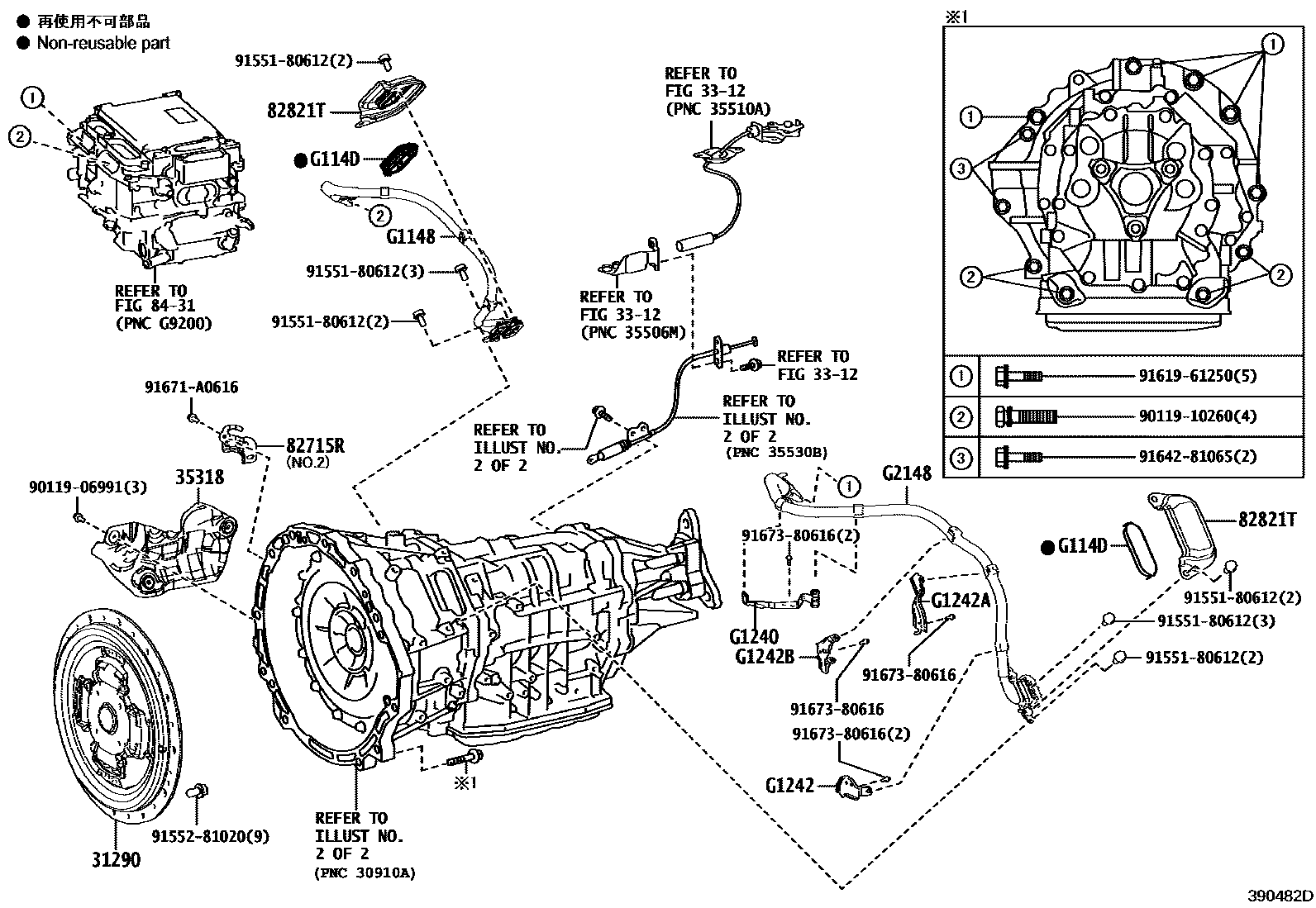

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1 0002 1

31290COVER ASSY, TRANSMISSION INPUT DAMPER

main31290-30010iGWZ100201701

3312

35318INSULATOR, TRANSMISSION OIL PUMP

main35318-11010iGWZ100201701

82715RBRACKET, WIRING HARNESS CLAMP, NO.1

main82715-11010iGWZ100201701

NO.1

main82715-11020iGWZ100201701

NO.2

82821TCOVER, CONNECTOR

main82821-11010iGWZ100201701

8431

G1148CABLE, MOTOR

mainG114811020iGWZ100201701

G114DCAP, MOTOR CABLE TERMINAL

mainG114D30010iGWZ100201701

G1240BRACKET ASSY, INVERTER MOTOR CABLE

mainG124011020iGWZ100201701

G1242BRACKET, ENGINE MOTOR CABLE CLAMP

mainG124211030iGWZ100201701

G1242ABRACKET, ENGINE MOTOR CABLE CLAMP

mainG124211040iGWZ100201701

G1242BBRACKET, ENGINE MOTOR CABLE CLAMP

mainG124211050iGWZ100201701

G2148CABLE, GENERATOR

mainG214811020iGWZ100201701

9011906991

main90119-06991

9011910260

main90119-10260

9155180612

main91551-80612

9155281020

main91552-81020

9161961250

main91619-61250

9164281065

main91642-81065

91671A0616

main91671-A0616

9167380616

main91673-80616

21 parts on this diagram · 2 diagrams in section
