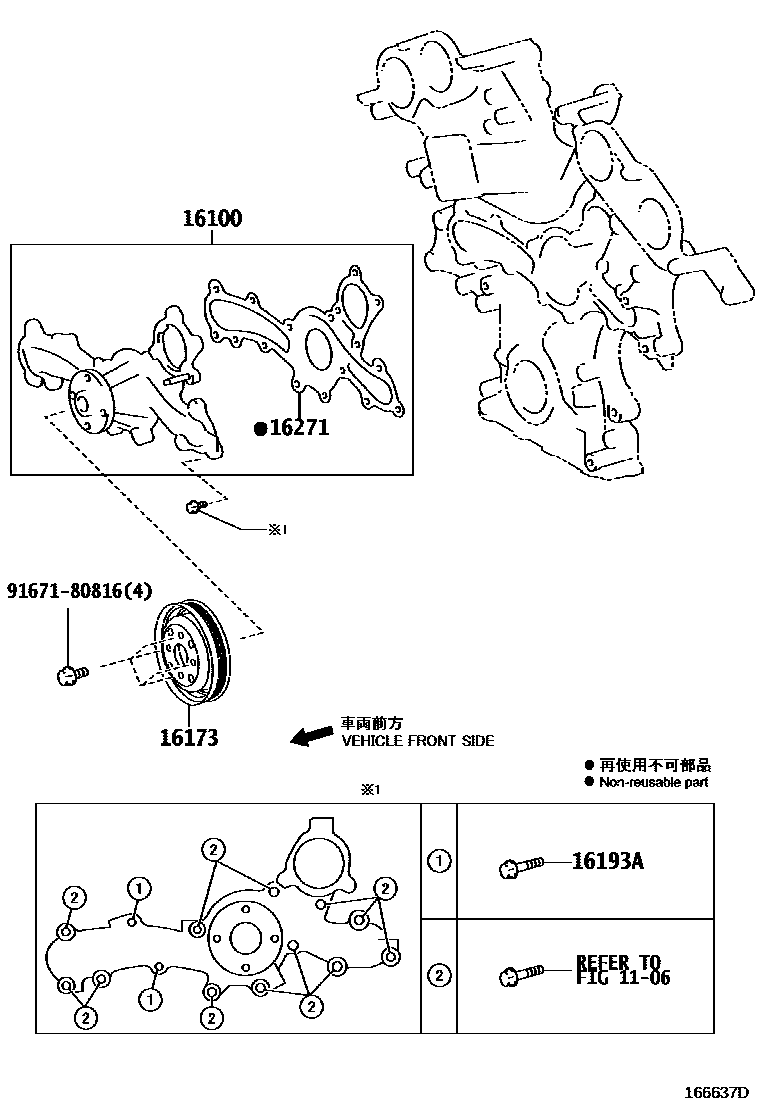

WATER PUMP

0001 1 0002 1

1106

16100PUMP ASSY, ENGINE WATER

main16100-39506i2URGSE..URZ100¥12,800201703

main16100-39615i8GRFXS..GWZ100¥9,500201701-202004

sub16100-39616¥9,500

main16100-39616i8GRFXS..GWZ100¥9,500202004

16173PULLEY, WATER PUMP

main16173-31040i8GRFXS..GWZ100¥3,960201701-202003

sub16173-31041¥3,960

main16173-31041i8GRFXS..GWZ100¥3,960202004-202012

sub16173-31042¥3,000

main16173-31042i8GRFXS..GWZ100¥3,000202101

main16173-38040i2URGSE..URZ100¥4,220201703-202005

sub16173-38041¥3,190

main16173-38041i2URGSE..URZ100¥3,190202006

16193ABOLT(FOR WATER PUMP COVER)

main16193-31080i8GRFXS..GWZ100¥210201701

16271GASKET, WATER PUMP

main16271-31050i8GRFXS..GWZ100¥1,740201701

main16271-38010i2URGSE..URZ100¥1,740201703

9167180816

main91671-80816¥80

6 parts on this diagram · 2 diagrams in section
