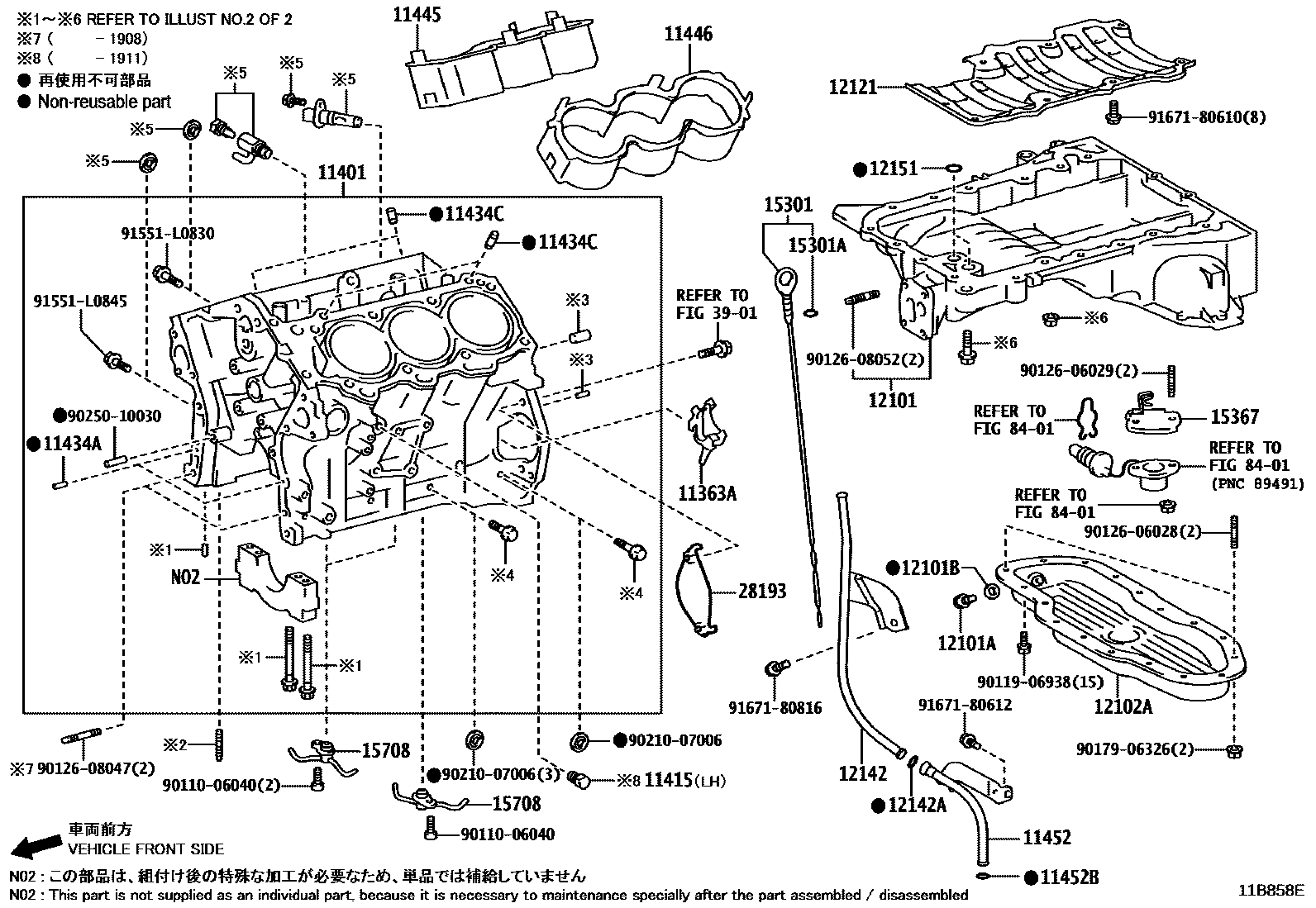

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-31030i8GRFXS..GWZ100201701

main11363-38020i2URGSE..URZ100201703

11401BLOCK SUB-ASSY, CYLINDER

main11401-80832i2URGSE..URZ100201703

main11401-80843i8GRFXS..GWZ100201701-201911

sub11401-80864

main11401-80864i8GRFXS..GWZ100201911

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90345-52001i8GRFXS..GWZ100201701-201911

LH

main90910-09129i8GRFXS..GWZ100201701

RH

main90910-09129i2URGSE..URZ100201703

11434PIN, STRAIGHT(FOR TIMING CHAIN COVER)

main90250-04097i2URGSE..URZ100201703

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097i8GRFXS..GWZ100201701

L=12,OD=4.0

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120i8GRFXS..GWZ100201701

L=18,OD=8

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-31050i8GRFXS..GWZ100201701

main11445-38010i2URGSE..URZ100201703

11446SPACER, CYLINDER BLOCK WATER JACKET, LH

main11446-31050i8GRFXS..GWZ100201701

11452GUIDE, OIL LEVEL GAGE

main11452-31040i8GRFXS..GWZ100201701

main11452-38130i2URGSE..URZ100201703

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90301-09028i2URGSE..URZ100201703

main90301-12018i8GRFXS..GWZ100201701

12101PAN SUB-ASSY, OIL

main12101-31241i8GRFXS..GWZ100201701

main12111-38160i2URGSE..URZ100201703

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i8GRFXS..GWZ100201701

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i8GRFXS..GWZ100201701

12102APAN SUB-ASSY, OIL, NO.2

main12102-31110i8GRFXS..GWZ100201701

main12102-38021i2URGSE..URZ100201703

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-31080i8GRFXS..GWZ100201701

main12121-38110i2URGSE..URZ100201703

12142GUIDE, OIL LEVEL GAGE, NO.2

main12142-31130i8GRFXS..GWZ100201701

12142ARING, O(FOR OIL LEVEL GAGE GUIDE, NO.2)

main96721-19010i8GRFXS..GWZ100201701

12151GASKET, OIL PAN

main12151-31010i8GRFXS..GWZ100201701

15301GAGE SUB-ASSY, OIL LEVEL

main15301-31170i8GRFXS..GWZ100201701

main15301-38090i2URGSE..URZ100201703

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i8GRFXS..GWZ100201701

15367BRACKET, OIL LEVEL SENSOR

main15367-31020i8GRFXS..GWZ100201701

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-31050i8GRFXS..GWZ100201701

main15708-38030i2URGSE..URZ100201703

28193INSULATOR, STARTER HOLE

main28193-31010i8GRFXS..GWZ100201701

3901

8401

9011006040

main90110-06040

9011906938

main90119-06938

9012606028

main90126-06028

9012606029

main90126-06029

9012608047

main90126-08047

9012608052

main90126-08052

9017906326

main90179-06326

9021007006

main90210-07006

9025010030

main90250-10030

91551L0830

main91551-L0830

91551L0845

main91551-L0845

9167180610

main91671-80610

9167180612

main91671-80612

9167180816

main91671-80816

39 parts on this diagram · 4 diagrams in section
