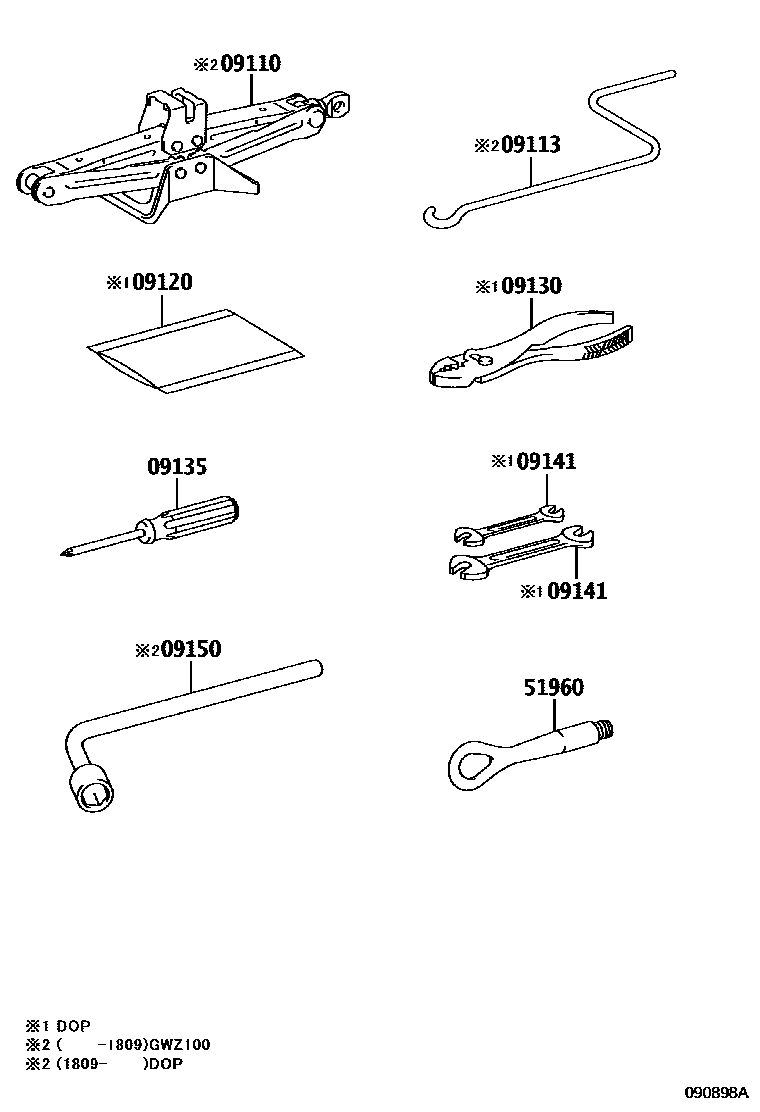

STANDARD TOOL

09110JACK ASSY

main09111-50130iGWZ100201701-201809

sub09111-50131

09113HANDLE, JACK

main09113-30050iGWZ100201701-201809

09120BAG, TOOL

main09120-24020

09130PLIERS

main09130-50040

09135DRIVER, SCREW

main99915-10700iGWZ100,URZ100201701

09141SPANNER

main09141-60010

main09141-60020

09150WRENCH, HUB NUT BOX

main09150-50040iGWZ100201701-201809

51960HOOK ASSY, FRONT

main51961-11030iGWZ100,URZ100201701

8 parts on this diagram · 1 diagram in section
