ANTENNA

86077COVER KIT, ANTENNA

main86077-53010-A0i201309-201509

WHITE PEARL CS.,077

sub86077-53010

main86077-53010-A2i201509-201708

SONIC QUARTZ,085

sub86077-53010

main86077-53010-B0i201309-201708

MERCURY GRAY MC.,1H9

sub86077-53010

main86077-53010-B2i201309-201708

SONIC TITANIUM,1J7

sub86077-53010

main86077-53010-B3i201309-201708

SONIC SILVER,1J2

sub86077-53010

main86077-53010-C0i201309-201708

BLACK,212

sub86077-53010

main86077-53010-C1i201309-201609

STARLIGHT BLACK GF.,217

sub86077-53010

main86077-53010-C2i201309-201609

BLACK OPAL MC.,214

sub86077-53010

main86077-53010-C3i201609-201708

GRAPHITE BLACK GF.,223

sub86077-53010

main86077-53010-D0i201309-201708

RED MC.CS.,3R1

sub86077-53010

main86077-53010-E0i201309-201708

SLEEK ECRU ME.,4U7

sub86077-53010

main86077-53010-E1i201309-201609

FIRE AGATE M.M.,4V3

sub86077-53010

main86077-53010-E3i201609-201708

AMBER CS.,4X2

sub86077-53010

main86077-53010-J4i201609-201708

DEEP BLUE MC.,8X5

sub86077-53010

86101CORD SUB-ASSY, ANTENNA

main86101-50E90i201209-201410

main86101-50F00i201209-201309

KOREA SPEC&MAYDAY SYSTEM-WITHOUT

main86101-50F00i201209-201309

USA POSSESSION SPEC&MAYDAY SYSTEM-WITHOUT

main86101-50F00i201309-201410

KOREA SPEC

main86101-50F00i201309-201609

USA POSSESSION SPEC

main86101-50G40i201410

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-50810i201209-201309

main86101-50820i201211-201309

KOREA SPEC&MAYDAY SYSTEM-WITHOUT

main86101-50820i201211-201309

USA POSSESSION SPEC&MAYDAY SYSTEM-WITHOUT

main86101-50830i201209-201309

MAYDAY SYSTEM-WITHOUT

main86101-50G00i201309-201609

MAYDAY SYSTEM-WITHOUT

main86101-50G10i201309-201609

main86101-50G30i201410-201609

KOREA SPEC&MAYDAY SYSTEM-WITHOUT

main86101-50G30i201609

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-50D50i201209-201609

MAYDAY SYSTEM-WITHOUT

main86101-50D70i201209-201609

main86101-50E50i201209-201410

KOREA SPEC&MAYDAY SYSTEM-WITHOUT

main86101-50E50i201209-201609

USA POSSESSION SPEC&MAYDAY SYSTEM-WITHOUT

main86101-50F30i201410-201609

KOREA SPEC&MAYDAY SYSTEM-WITHOUT

main86101-50F30i201609

86300CANTENNA ASSY, AMPLIFIER, NO.2

main863C0-50010i201410-201609

KOREA SPEC

main863C0-50010i201609

86300GANTENNA ASSY, TELEVISION AMPLIFIER

main86300-50330i201209-201609

main86300-50340i201410-201609

KOREA SPEC

main86300-50340i201609

86396NUT, ANTENNA

main86396-47010i201209-201309

86760AANTENNA ASSY, TELEPHONE

main86760-50080-A2i201211-201309

KOREA SPEC&MAYDAY SYSTEM-WITHOUT,WHITE PEARL CS.,077

main86760-50080-A2i201211-201309

USA POSSESSION SPEC&MAYDAY SYSTEM-WITHOUT,WHITE PEARL CS.,077

main86760-50080-B3i201211-201309

USA POSSESSION SPEC&MAYDAY SYSTEM-WITHOUT,MERCURY GRAY MC.,1H9

main86760-50080-B3i201211-201309

KOREA SPEC&MAYDAY SYSTEM-WITHOUT,MERCURY GRAY MC.,1H9

main86760-50080-B4i201211-201309

KOREA SPEC&MAYDAY SYSTEM-WITHOUT,SONIC SILVER,1J2

main86760-50080-B4i201211-201309

USA POSSESSION SPEC&MAYDAY SYSTEM-WITHOUT,SONIC SILVER,1J2

main86760-50080-C0i201211-201309

KOREA SPEC&MAYDAY SYSTEM-WITHOUT,BLACK,212

main86760-50080-C0i201211-201309

USA POSSESSION SPEC&MAYDAY SYSTEM-WITHOUT,BLACK,212

main86760-50080-C1i201211-201309

USA POSSESSION SPEC&MAYDAY SYSTEM-WITHOUT,BLACK OPAL MC.,214

main86760-50080-C1i201211-201309

KOREA SPEC&MAYDAY SYSTEM-WITHOUT,BLACK OPAL MC.,214

main86760-50080-C2i201211-201309

USA POSSESSION SPEC&MAYDAY SYSTEM-WITHOUT,STARLIGHT BLACK GF.,217

main86760-50080-C2i201211-201309

KOREA SPEC&MAYDAY SYSTEM-WITHOUT,STARLIGHT BLACK GF.,217

main86760-50080-D2i201211-201309

KOREA SPEC&MAYDAY SYSTEM-WITHOUT,RED MC.CS.,3R1

main86760-50080-D2i201211-201309

USA POSSESSION SPEC&MAYDAY SYSTEM-WITHOUT,RED MC.CS.,3R1

main86760-50080-E2i201211-201309

USA POSSESSION SPEC&MAYDAY SYSTEM-WITHOUT,SLEEK ECRU ME.,4U7

main86760-50080-E2i201211-201309

KOREA SPEC&MAYDAY SYSTEM-WITHOUT,SLEEK ECRU ME.,4U7

main86760-50080-E3i201211-201309

USA POSSESSION SPEC&MAYDAY SYSTEM-WITHOUT,FIRE AGATE M.M.,4V3

main86760-50080-E3i201211-201309

KOREA SPEC&MAYDAY SYSTEM-WITHOUT,FIRE AGATE M.M.,4V3

main86760-50080-J1i201211-201309

KOREA SPEC&MAYDAY SYSTEM-WITHOUT,LAPIS LAZULI MC.,8V3

main86760-50080-J1i201211-201309

USA POSSESSION SPEC&MAYDAY SYSTEM-WITHOUT,LAPIS LAZULI MC.,8V3

main86760-50120-A0i201209-201309

MAYDAY SYSTEM-WITHOUT,WHITE PEARL CS.,077

main86760-50120-B3i201209-201309

MAYDAY SYSTEM-WITHOUT,MERCURY GRAY MC.,1H9

main86760-50120-B4i201209-201309

MAYDAY SYSTEM-WITHOUT,SONIC SILVER,1J2

main86760-50120-C0i201209-201309

MAYDAY SYSTEM-WITHOUT,BLACK,212

main86760-50120-C1i201209-201309

MAYDAY SYSTEM-WITHOUT,BLACK OPAL MC.,214

main86760-50120-C2i201209-201309

MAYDAY SYSTEM-WITHOUT,STARLIGHT BLACK GF.,217

main86760-50120-D0i201209-201309

MAYDAY SYSTEM-WITHOUT,RED MC.CS.,3R1

main86760-50120-E1i201209-201309

MAYDAY SYSTEM-WITHOUT,SLEEK ECRU ME.,4U7

main86760-50120-E2i201209-201309

MAYDAY SYSTEM-WITHOUT,FIRE AGATE M.M.,4V3

main86760-50120-J0i201209-201309

MAYDAY SYSTEM-WITHOUT,LAPIS LAZULI MC.,8V3

main86760-50130-A0i201209-201309

WHITE PEARL CS.,077

main86760-50130-B3i201209-201309

MERCURY GRAY MC.,1H9

main86760-50130-B4i201209-201309

SONIC SILVER,1J2

main86760-50130-C0i201209-201309

BLACK,212

main86760-50130-C1i201209-201309

BLACK OPAL MC.,214

main86760-50130-C2i201209-201309

STARLIGHT BLACK GF.,217

main86760-50130-D0i201209-201309

RED MC.CS.,3R1

main86760-50130-E1i201209-201309

SLEEK ECRU ME.,4U7

main86760-50130-E2i201209-201309

FIRE AGATE M.M.,4V3

main86760-50130-J0i201209-201309

LAPIS LAZULI MC.,8V3

main86760-53070i201309-201605

sub86760-53071

main86760-53071i201605-201609

main86760-53080i201309-201609

MAYDAY SYSTEM-WITHOUT

main86760-53100i201309-201609

KOREA SPEC&MAYDAY SYSTEM-WITHOUT

main86760-53100i201309-201609

USA POSSESSION SPEC&MAYDAY SYSTEM-WITHOUT

main86760-53100i201609

86769HOUSING, ROOF ANTENNA

main86769-53010i201309

87268RPROTECTOR, TELEPHONE ANTENNA

main87268-48021i201209-201309

9011906915

main90119-06915

9017906274

main90179-06274

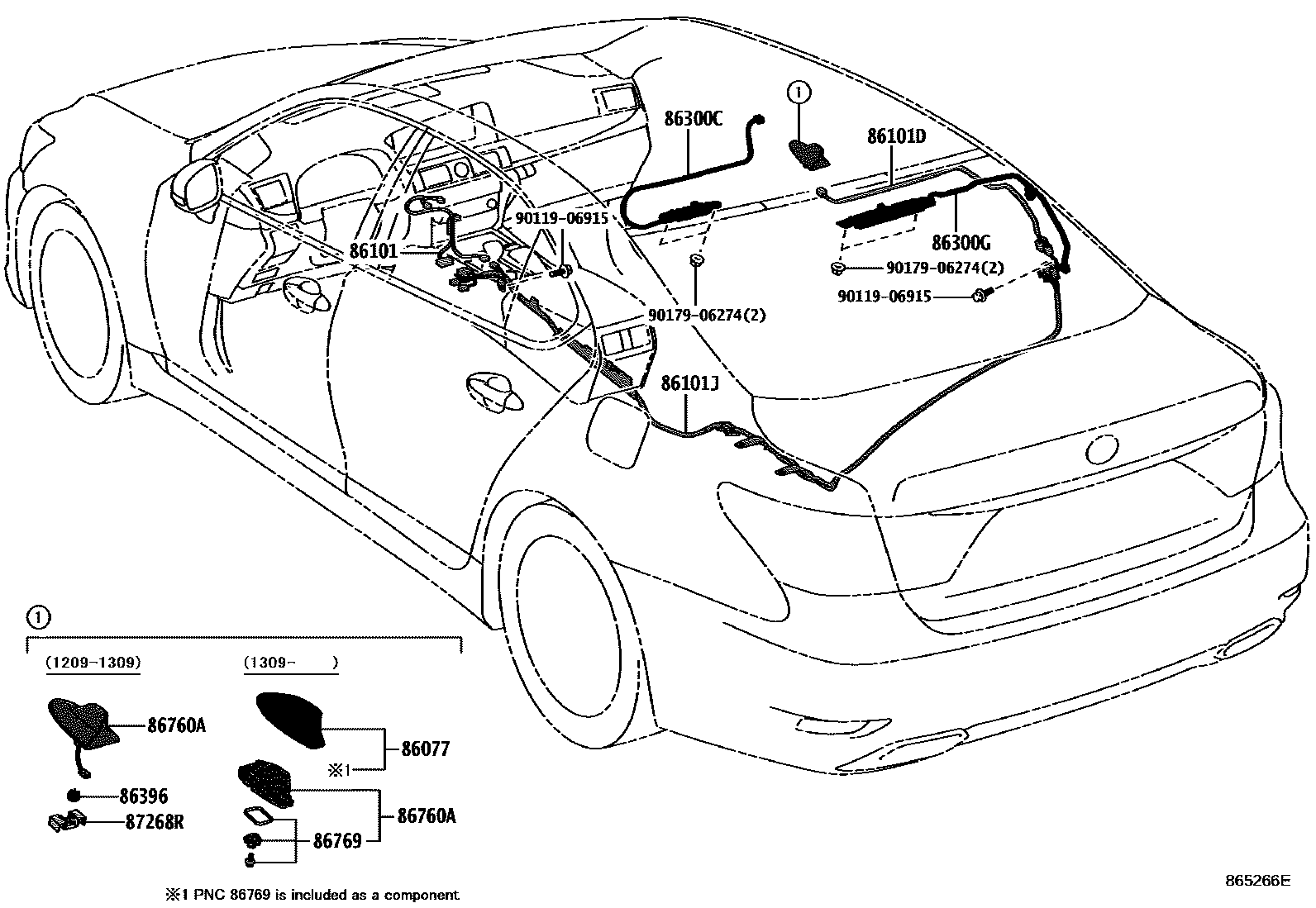

12 parts on this diagram · 1 diagram in section
