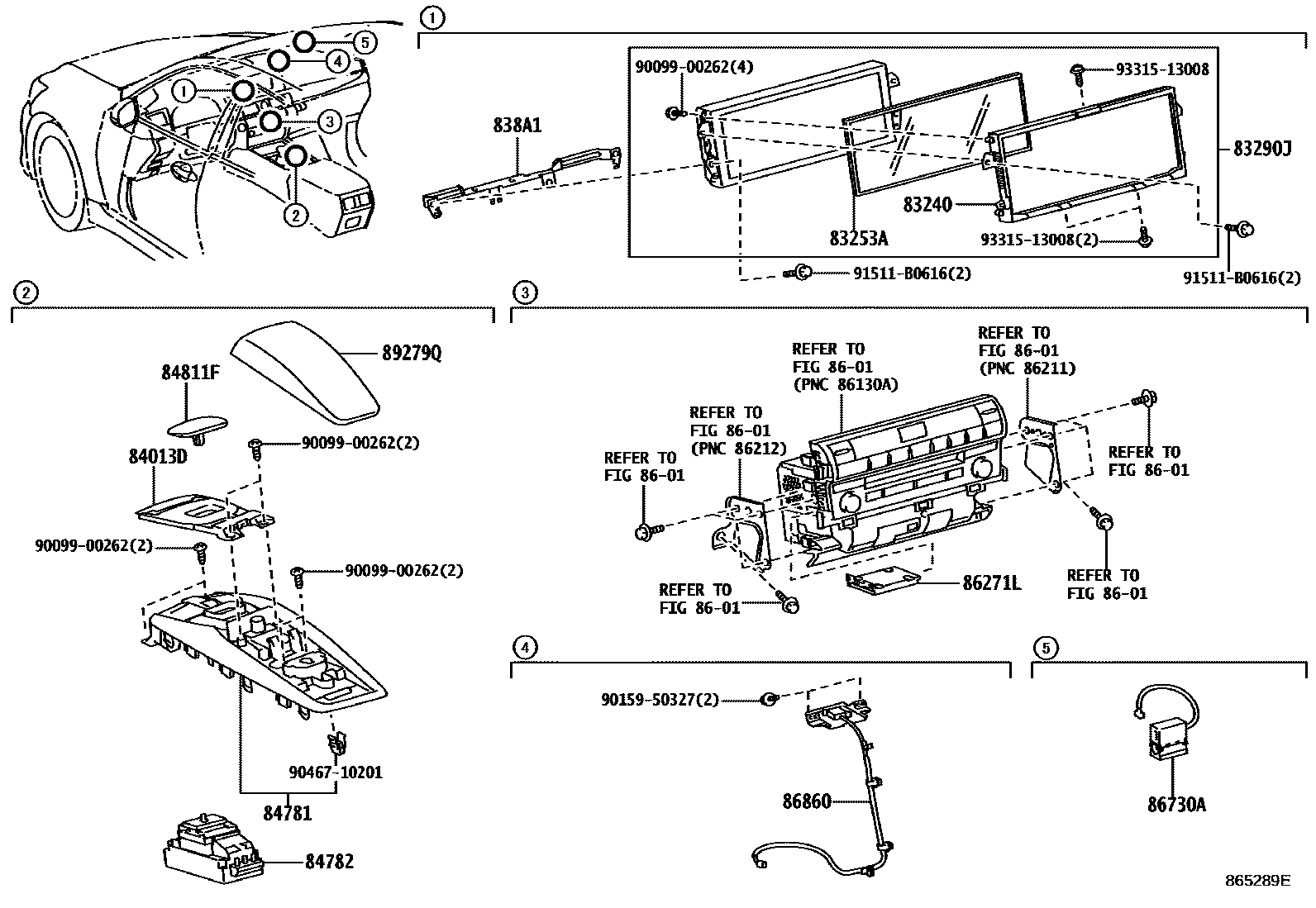

NAVIGATION & FRONT MONITOR DISPLAY

83240CASE ASSY, MULTI INFORMATION DISPLAY

main83811-50010i201209-201309

main83811-50080i201309

83253AGLASS, ACCESSORY METER

main83253-50010i201209-201309

main83253-50080i201309

83290JMETER ASSY, ACCESSORY

main83290-50240replaces 83290-50220i201609

main83290-50060replaces 83290-50010i201209-201309

KOREA SPEC&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)

main83290-50130replaces 83290-50080i201309-201410

KOREA SPEC&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)

main83290-50180replaces 83290-50150i201410-201509

KOREA SPEC&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)

838A1BRACKET, COMBINATION METER

main838A1-50020i201209

84013DPANEL SUB-ASSY, INTEGRATION

main84013-50010i201209-201509

main84013-50020i201509-201708

84781SWITCH, REMOTE OPERATION

main84781-50020replaces 84781-50010i201209-201509

USA POSSESSION SPEC&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)

main84781-50050i201410-201509

KOREA SPEC&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)

84782BOARD, REMOTE OPERATION

main84782-50010i201209-201210

main84782-50011i201210-201302

main84782-50020i201410-201509

main84782-50030i201509

84811FKNOB, SWITCH

main84811-50010i201209-201410

sub84811-50050

main84811-50011i201410-201506

main84811-50020i201509

main84811-50030i201507-201509

8601

86271DISC, DISC PLAYER

main86271-30B50i201509-201609

MICRO SD CARD

sub86271-53390

main86271-78011i201410-201507

MICRO SD CARD

main86271-78012i201507-201509

MICRO SD CARD

sub86271-78013

86271LHARD DISC

main86271-50A50i201309-201408

sub86271-50A51

main86271-60211i201209-201307

sub86271-60212

main86271-30720i201309-201410

KOREA SPEC&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)

main86271-50A20replaces 86271-60212i201209-201309

USA POSSESSION SPEC&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)&MAYDAY SYSTEM-WITHOUT

main86271-50B00replaces 86271-50A51i201309-201410

USA POSSESSION SPEC&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)

86730AMICROPHONE ASSY, TELEPHONE

main86730-50080i201209-201309

main86730-50100i201309-201708

86860ANTENNA ASSY, NAVIGATION

main86860-50120i201209-201410

main86860-50140i201410

89279QCOVER

main89279-50040i201209-201509

main89279-50050i201509

9009900262

main90099-00262

9015950327

main90159-50327

9046710201

main90467-10201

91511B0616

main91511-B0616

9331513008

main93315-13008

19 parts on this diagram · 3 diagrams in section
