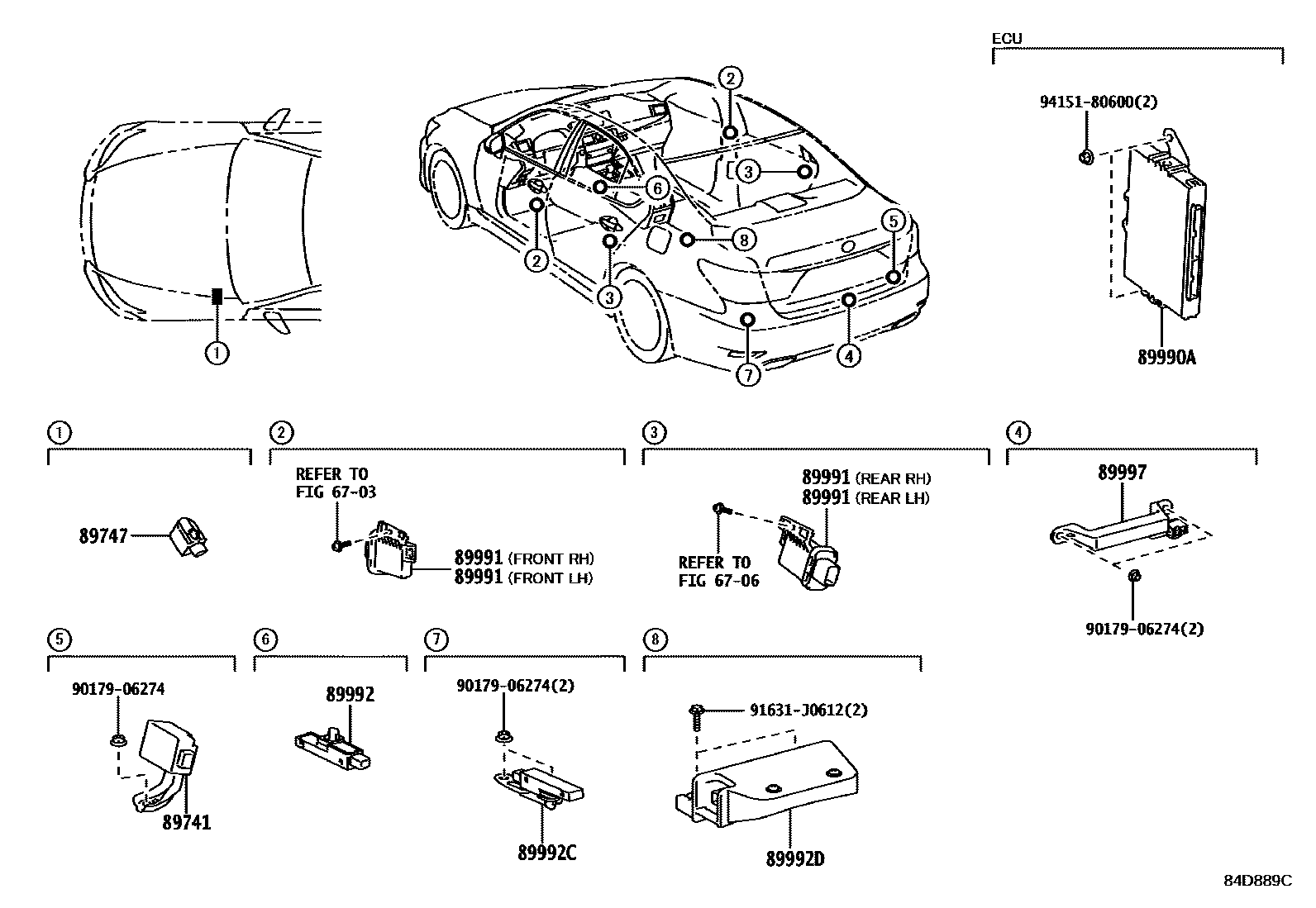

WIRELESS DOOR LOCK

6703

6706

89741RECEIVER, DOOR CONTROL

main89740-50180iUVF46201209-201609

main89740-50192iUVF46201609

89747BUZZER, WIRELESS DOOR LOCK

main89747-52010iUVF46201209

89990ACOMPUTER ASSY, SMART KEY

main89990-50080iUVF46201209-201309

sub89990-50081

main89990-50290iUVF46201309-201410

sub89990-50291

main89990-50340iUVF46201410-201508

sub89990-50430

main89990-50430iUVF46201509-201512

sub89990-50431

main89990-50480iUVF46201512

sub89990-50481

89991OSCILLATOR, DOOR ELECTRICAL KEY

main89991-33010iUVF46201209-201708

FRONT-RH,REAR-LH

main89991-33020iUVF46201209-201708

FRONT-LH,REAR-RH

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-30090iUVF46201209

89992COSCILLATOR, INDOOR ELECTRICAL KEY, NO.2

main89992-50111iUVF46201209

89992DOSCILLATOR, INDOOR ELECTRICAL KEY, NO.3

main89992-50101iUVF46201209

89997ANTENNA, ELECTRICAL KEY

main89997-30070iUVF46201209

9017906274

main90179-06274

91631J0612

main91631-J0612

9415180600

main94151-80600

13 parts on this diagram · 1 diagram in section
