ELECTRONIC MODULATED SUSPENSION

48728ABRACKET, LOAD SENSING VALVE SENSOR

main48728-50010iUVF46201209-201708

REAR RH

main48728-50020iUVF46201209-201708

REAR LH

main48728-50030iUVF46201209-201708

FRONT RH

main48728-50040iUVF46201209-201708

FRONT LH

8401

89190ASENSOR ASSY, ACCELERATION

main89190-30050iUVF46201209

REAR

main89190-50021iUVF46201209

FRONT

89241BACTUATOR, ABSORBER CONTROL

main89241-30041iUVF46201209

89293COMPUTER, SUSPENSION CONTROL

main89293-50194iUVF46201209-201309

main89293-50195iUVF46201309-201410

main89293-50196iUVF46201410

89293ARELAY, SUSPENSION CONTROL

main90987-02025iUVF46201209-201708

89405BSENSOR SUB-ASSY, HEIGHT CONTROL, FRONT RH

main89405-50100iUVF46201209

89406SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT LH

main89406-50130iUVF46201209

89407BSENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH

main89407-50070iUVF46201209

89408DSENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH

main89408-50070iUVF46201209

9155380614

main91553-80614

91553A0610

main91553-A0610

91554A0612

main91554-A0612

91631J0612

main91631-J0612

9415180600

main94151-80600

9418560600

main94185-60600

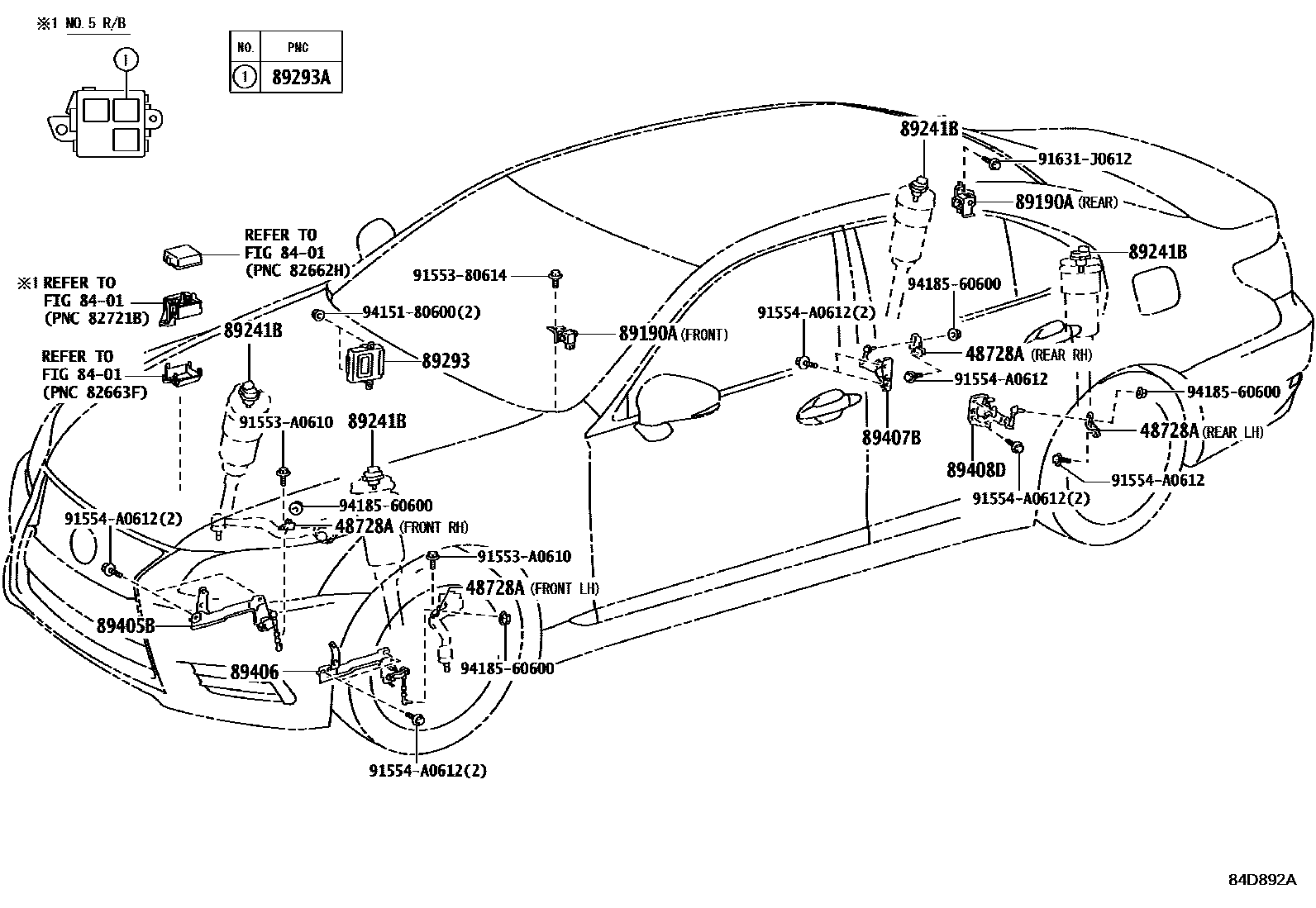

16 parts on this diagram · 1 diagram in section
