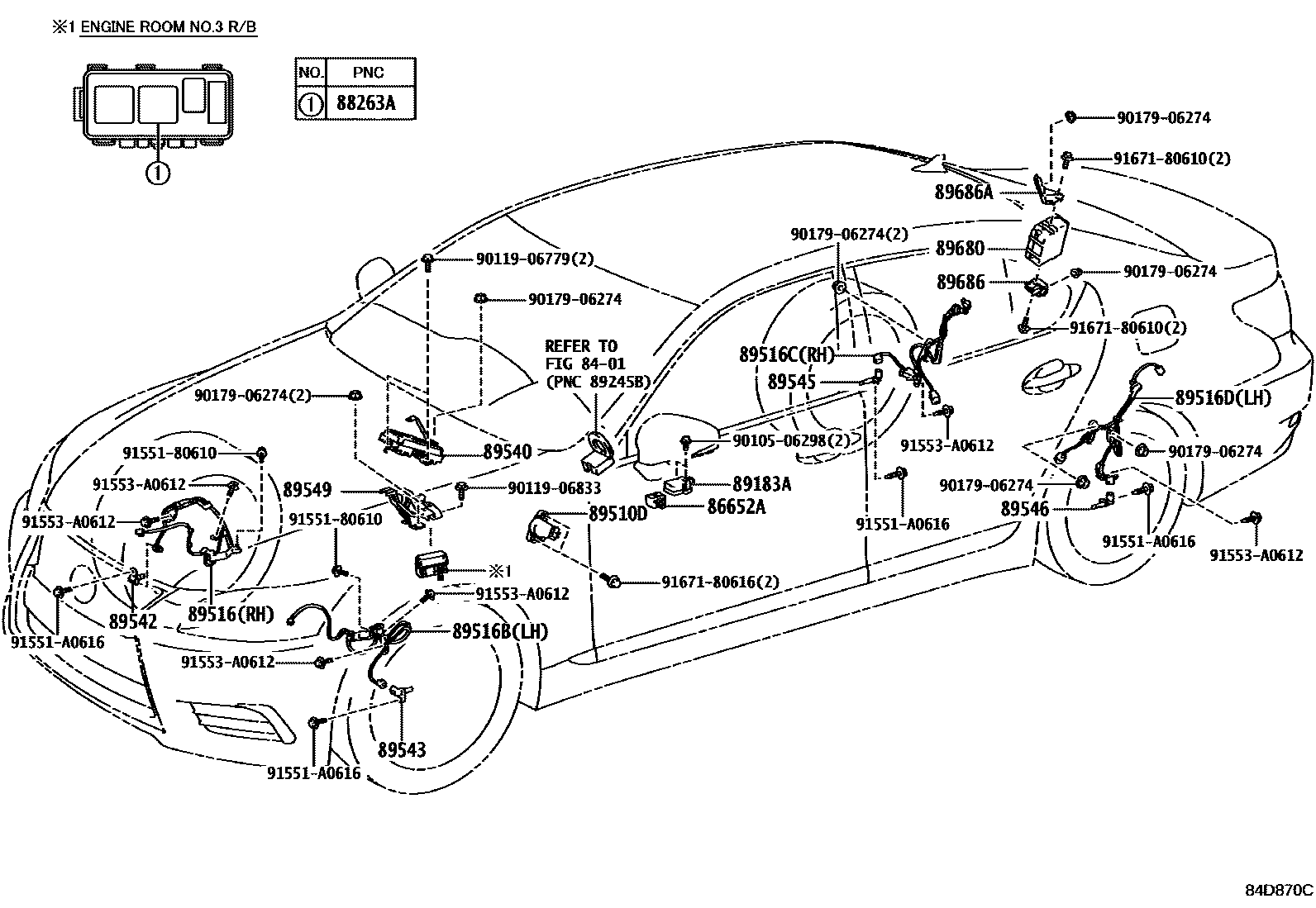

ABS & VSC

8401

86652ABUZZER ASSY, SKID CONTROL

main86652-50010iUVF46201209

88263ARELAY, SKID CONTROL

main88263-21010iUVF46201209-201708

89183ASENSOR, YAWRATE

main89183-48020iUVF46201209

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-33030iUVF46201209

89516WIRE, SKID CONTROL SENSOR

main89516-50140iUVF46201209

89516BWIRE, SKID CONTROL SENSOR

main89516-50130iUVF46201209

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-50190iUVF46201209

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-50150iUVF46201209

89540COMPUTER ASSY, SKID CONTROL

main895B0-50190iUVF46201209-201410

sub895B0-50C40

main895B0-50191iUVF46201410

sub895B0-50A30

89542SENSOR, SPEED, FRONT RH

main89542-30270iUVF46201209-201708

89543SENSOR, SPEED, FRONT LH

main89543-30270iUVF46201209-201708

89545SENSOR, SPEED, REAR RH

main89545-30070iUVF46201209-201708

89546SENSOR, SPEED, REAR LH

main89546-30070iUVF46201209-201708

89549BRACKET, SKID CONTROL COMPUTER

main88269-50140iUVF46201209-201708

89680SUPPLY ASSY, BRAKE CONTROL POWER

main89680-33010iUVF46201209

89686BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1

main89686-50050iUVF46201209

89686ABRACKET, BRAKE CONTROL POWER SUPPLY, NO.1

main89686-50060iUVF46201209

9010506298

main90105-06298

9011906779

main90119-06779

9011906833

main90119-06833

9017906274

main90179-06274

9155180610

main91551-80610

91551A0616

main91551-A0616

91553A0612

main91553-A0612

9167180610

main91671-80610

9167180616

main91671-80616

27 parts on this diagram · 1 diagram in section
