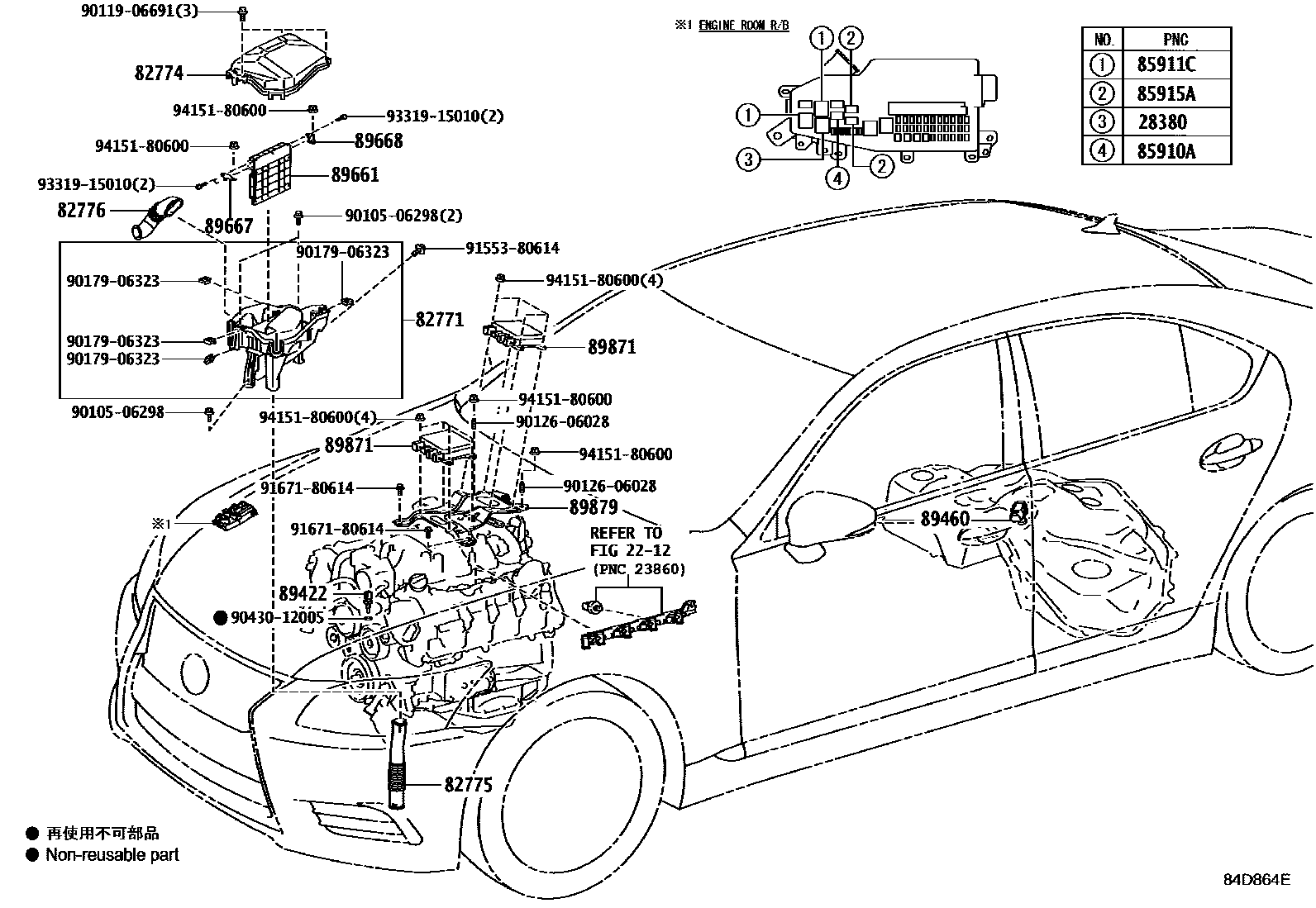

ELECTRONIC FUEL INJECTION SYSTEM

2212

28380RELAY ASSY, FUEL PUMP

main90987-03003i2URFSE..UVF46201209-201708

82771BOX, ENGINE ROOM ECU

main82771-50030iUVF46201209

82774COVER, ENGINE ROOM ECU

main82774-50030iUVF46201209

82775DUCT, ENGINE ROOM ECU INLET

main82775-50020iUVF46201209

82776DUCT, ENGINE ROOM ECU OUTLET

main82776-50030iUVF46201209

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02027iUVF46201209-201708

85911CRELAY, EFI 2

main90987-02025iUVF46201209-201708

85915ARELAY, MAIN

main90987-02027iUVF46201209-201708

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iUVF46201209

89460SENSOR ASSY, VAPOR PRESSURE

main89461-48020iUVF46201209-201708

89661COMPUTER, ENGINE CONTROL

main89661-50J90iUVF46201509

sub89661-50U00

main89661-50N00iUVF46201209-201309

main89661-50P70iUVF46201309-201509

sub89661-50P71

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-50040iUVF46201209

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-50040iUVF46201209

89871DRIVER, INJECTOR

main89871-50010iUVF46201209

89879BRACKET, INJECTOR DRIVER

main89879-50010iUVF46201209

9010506298

main90105-06298

9011906691

main90119-06691

9012606028

main90126-06028

9017906323

main90179-06323

9043012005

main90430-12005

9155380614

main91553-80614

9167180614

main91671-80614

9331915010

main93319-15010

9415180600

main94151-80600

25 parts on this diagram · 1 diagram in section
