HEADLAMP
52133JREINFORCEMENT, FRONT BUMPER BAR, RH
52134JREINFORCEMENT, FRONT BUMPER BAR, LH
81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81116CBRACKET, HEADLAMP, RH
KOREA SPEC&HEADLAMP-LED & *AFLS & *AHB
KOREA SPEC
81118ABRACKET, HEADLAMP, RH
81126APLATE, HEADLAMP, RH
KOREA SPEC&HEADLAMP-LED & *AFLS & *AHB
KOREA SPEC
81131BHEAD LAMP LENS, RH
KOREA SPEC&HEADLAMP-LED & *AFLS & *AHB
KOREA SPEC
81132BGASKET, HEADLAMP LENS
KOREA SPEC&HEADLAMP-LED & *AFLS & *AHB
KOREA SPEC
81134GASKET, HEADLAMP
81135UNIT ASSY, HEADLAMP, RH
sub81145-50861
PRE-COLLISION SYSTEM-WITH(*PB)&HEADLAMP-LED & *AFLS & *AHB
sub81145-50871
PRE-COLLISION SYSTEM-WITH(*PB)
KOREA SPEC
81140UNIT ASSY, HEADLAMP LED, RH
KOREA SPEC
81156ABRACKET, HEADLAMP, LH
KOREA SPEC
KOREA SPEC&HEADLAMP-LED & *AFLS & *AHB
81158BRACKET, HEADLAMP, LH
81160AUNIT ASSY, HEADLAMP LED, LH
KOREA SPEC
81166PLATE, HEADLAMP, LH
KOREA SPEC&HEADLAMP-LED & *AFLS & *AHB
KOREA SPEC
81171BHEAD LAMP LENS, LH
KOREA SPEC&HEADLAMP-LED & *AFLS & *AHB
KOREA SPEC
81175UNIT ASSY, HEADLAMP, LH
sub81185-50861
PRE-COLLISION SYSTEM-WITH(*PB)&HEADLAMP-LED & *AFLS & *AHB
sub81185-50871
PRE-COLLISION SYSTEM-WITH(*PB)
KOREA SPEC
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
85663AMOTOR, HEADLAMP SWIVEL, RH
KOREA SPEC&HEADLAMP-LED & *AFLS & *AHB
KOREA SPEC
85664BMOTOR, HEADLAMP SWIVEL, LH
KOREA SPEC&HEADLAMP-LED & *AFLS & *AHB
KOREA SPEC
85967COMPUTER, LIGHT CONTROL
KOREA SPEC&HEADLAMP-LED & *AFLS & *AHB,NO.1
KOREA SPEC,NO.1
NO.1
89946COMPUTER, HEADLAMP SHADE
KOREA SPEC
89946ACOMPUTER, HEADLAMP SHADE
KOREA SPEC
8111950280SCREW, HEADLAMP
main81119-50280
9007502054
main90075-02054
9007502056
main90075-02056
9007502727
main90075-02727
9010506298
main90105-06298
9010906382
main90109-06382

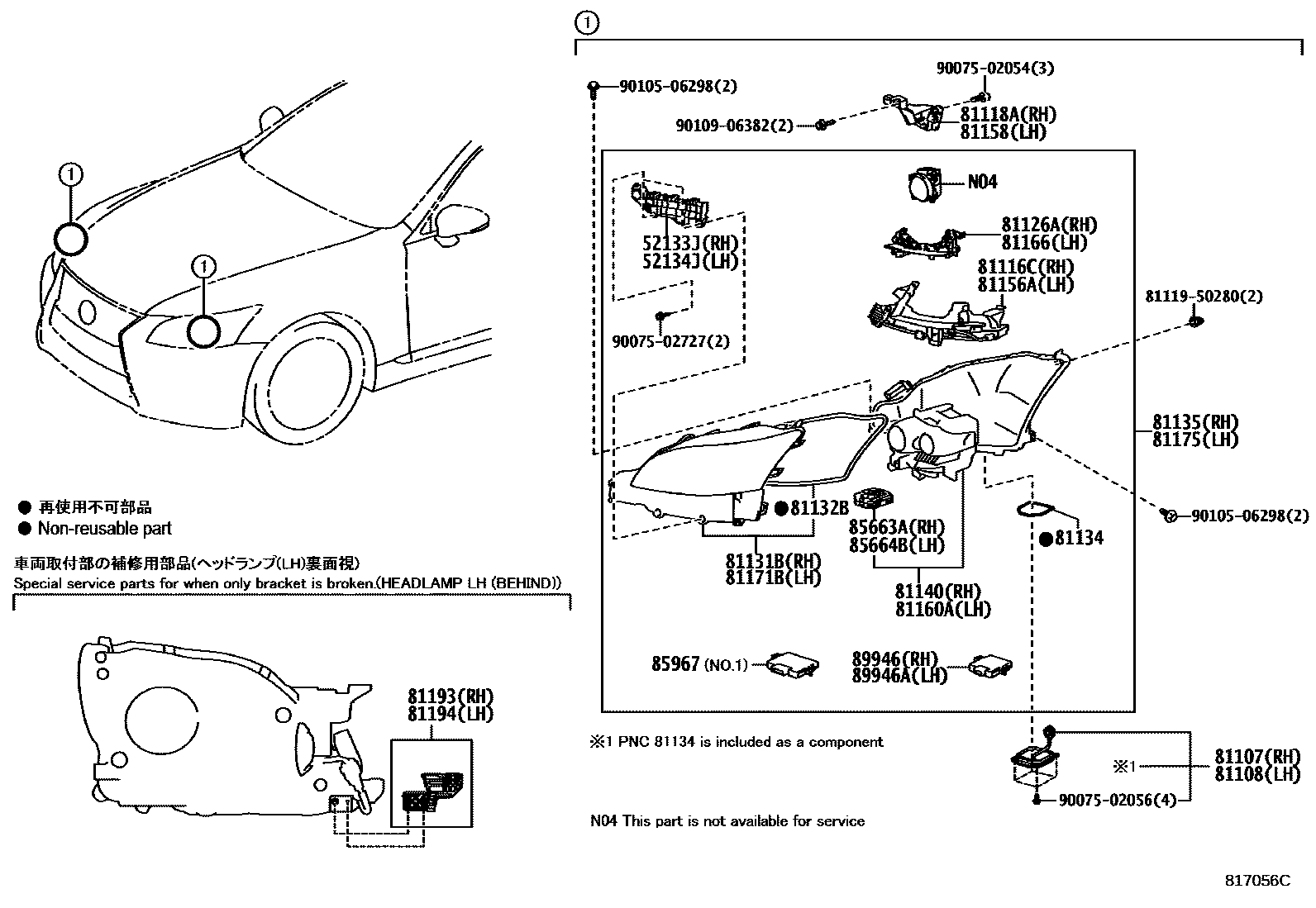

31 parts on this diagram · 2 diagrams in section
