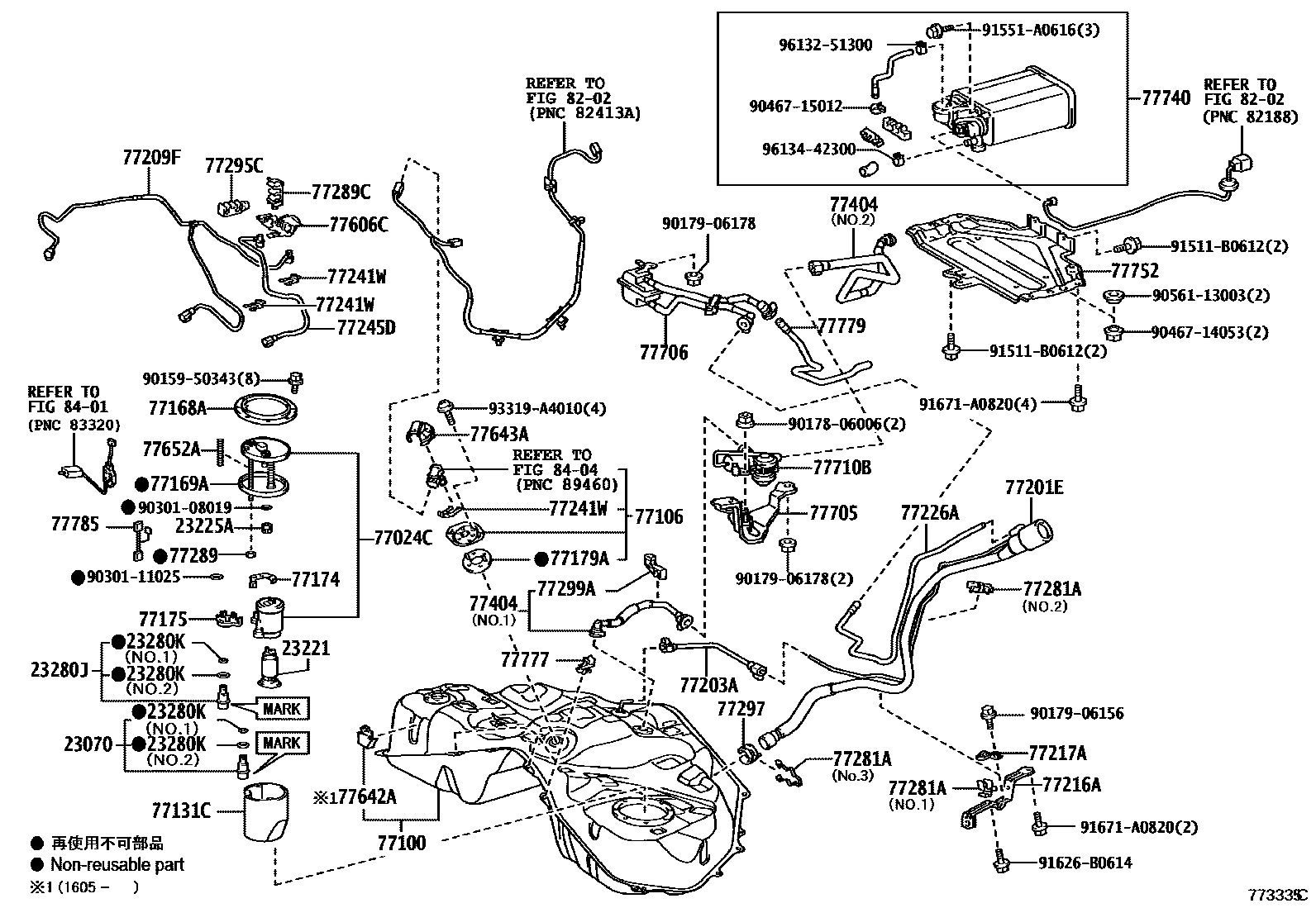

FUEL TANK & TUBE
23070VALVE ASSY, FUEL MAIN
MARK 23070-38020
23221PUMP, FUEL
23225ASPACER, FUEL PUMP
23280JREGULATOR ASSY, FUEL PRESSURE
MARK 23280-38020
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1
NO.2
77100TANK ASSY, FUEL
77106PLATE SUB-ASSY, FUEL TANK SIDE, REAR
77131CSUB-TANK, FUEL, NO.1
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77175SUPPORT, FUEL SUCTION, NO.2
77179AGASKET, FUEL TANK BREATHER TUBE
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77203ATUBE SUB-ASSY, FUEL SUCTION
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77226ATUBE, FUEL TANK BREATHER, NO.6
77241WCLIP, TUBE JOINT
77245DTUBE, FUEL TANK RETURN VENT
77281ACLAMP, FUEL FILLER PIPE
NO.1
NO.2
NO.3
77289HOLDER, FUEL TANK PIPE SETTING
77289CCLAMP, FUEL TUBE, NO.4
77295CGROMMET, FUEL TUBE
77297CONNECTOR, FUEL TUBE
77299ACLAMP, FUEL TUBE, NO.5
77404HOSE SUB-ASSY, FUEL TANK VENT
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77606CPROTECTOR, FUEL TANK, NO.2
77642APROTECTOR, FUEL TANK, NO.2
77643APROTECTOR, FUEL TANK, NO.3
77652ACUSHION, FUEL TANK, NO.2
77705BRACKET SUB-ASSY, CHARCOAL CANISTER
77706FILTER SUB-ASSY, CHARCOAL CANISTER
77710BVALVE ASSY, FUEL TANK SOLENOID MAIN
77740CANISTER ASSY, CHARCOAL
77752BRACKET, CHARCOAL CANISTER SUPPORT
77777BRACKET, FUEL TUBE CLAMP
77779TUBE, CHARCOAL CANISTER OUTLET
77785HARNESS, FUEL PUMP
sub77785-50021
8202
8401
8404
9015950343
main90159-50343
9017806006
main90178-06006
9017906156
main90179-06156
9017906178
main90179-06178
9030108019
main90301-08019
9030111025
main90301-11025
9046714053
main90467-14053
9046715012
main90467-15012
9056113003
main90561-13003
91511B0612
main91511-B0612
91551A0616
main91551-A0616
91626B0614
main91626-B0614
91671A0820
main91671-A0820
93319A4010
main93319-A4010
9613251300
main96132-51300
9613442300
main96134-42300
61 parts on this diagram · 3 diagrams in section
