SIDE MOULDING
67495CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67496CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
75545GCLIP, WINDSHIELD OUTSIDE MOULDING, NO.1
75546DCLIP, WINDSHIELD OUTSIDE MOULDING, NO.2
75547ECLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
WHITE PEARL CS.,077
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
SONIC SILVER,1J2
SONIC TITANIUM,1J7
BLACK,212
BLACK OPAL MC.,214
STARLIGHT BLACK GF.,217
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
SLEEK ECRU ME.,4U7
FIRE AGATE M.M.,4V3
AMBER CS.,4X2
LAPIS LAZULI MC.,8V3
DEEP BLUE MC.,8X5
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
WHITE PEARL CS.,077
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
SONIC SILVER,1J2
SONIC TITANIUM,1J7
BLACK,212
BLACK OPAL MC.,214
STARLIGHT BLACK GF.,217
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
SLEEK ECRU ME.,4U7
FIRE AGATE M.M.,4V3
AMBER CS.,4X2
LAPIS LAZULI MC.,8V3
DEEP BLUE MC.,8X5
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75562CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2
75721AMOULDING, REAR DOOR BELT, RH
75722AMOULDING, REAR DOOR BELT, LH
75751CMOULDING, FRONT DOOR WINDOW FRAME, FRONT RH
75752CMOULDING, FRONT DOOR WINDOW FRAME, FRONT LH
75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH
9016840116
main90168-40116
9018904222
main90189-04222
9324915006
main93249-15006

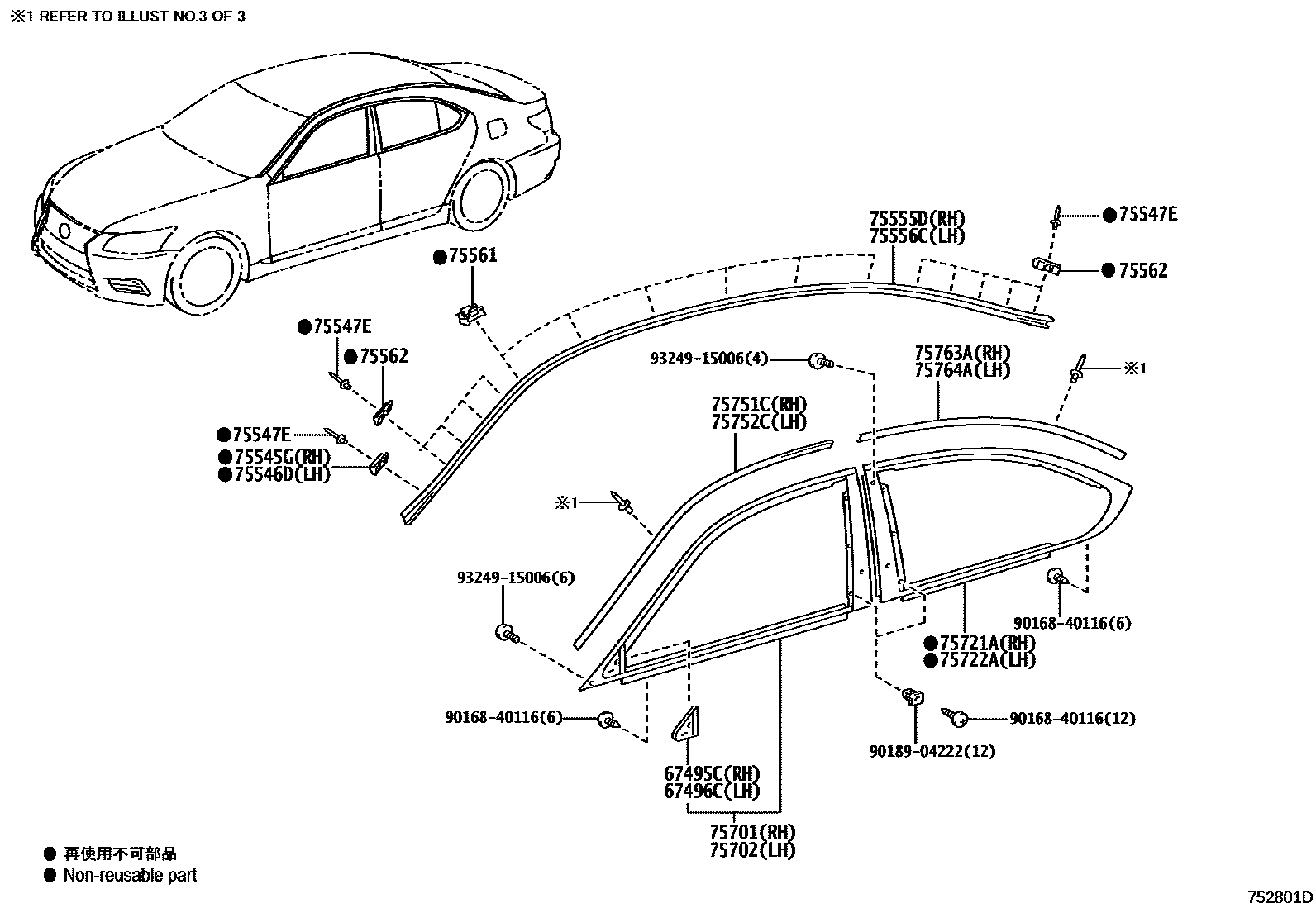

20 parts on this diagram · 3 diagrams in section
