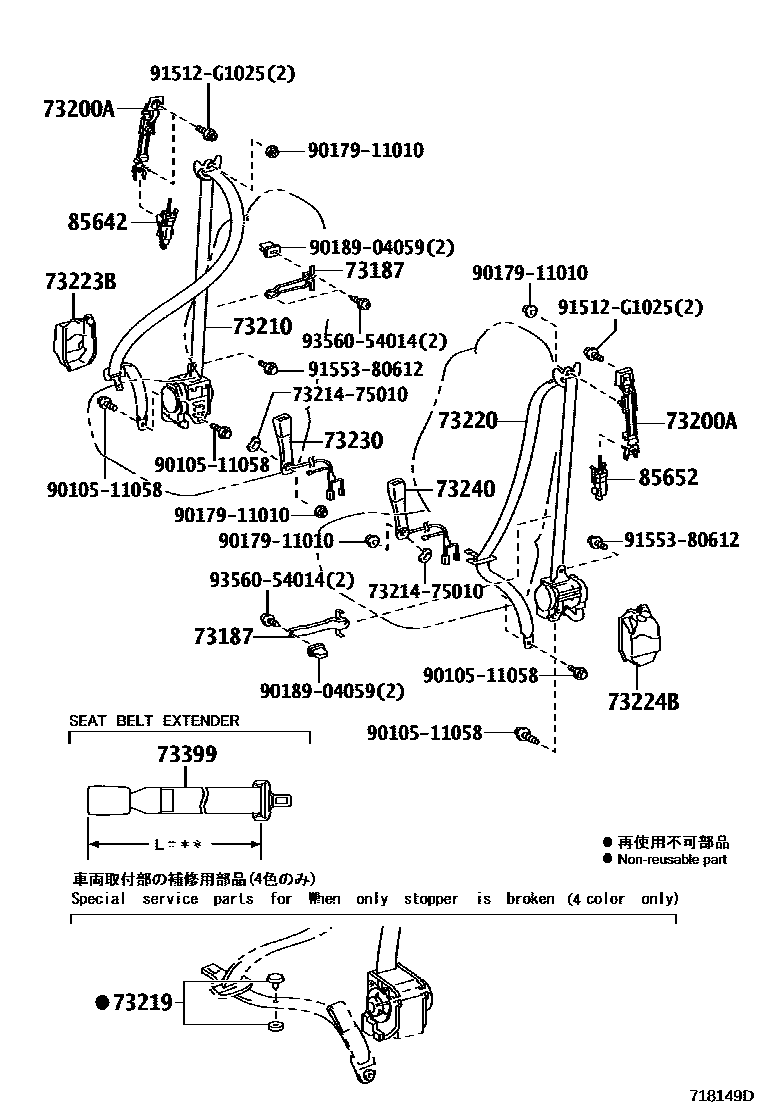

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1FIX SEAT 0003 1REAR POWER SLIDE OTTOMAN: 5 S0004 1REAR POWER OTTOMAN: 4 SEAT

73187GUIDE, FRONT SEAT SHOULDER BELT

main73187-50010iUVF46¥300201209

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-50091iUVF46¥4,910201209

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-50540-A0iUVF46201209-201609

IVORY,TRIM0#

main73210-50540-B0iUVF46201209-201609

GRAY,TRIM1#

main73210-50540-C0iUVF46201209-201609

BLACK/IVORY,TRIM41,5#

main73210-50540-C1iUVF46201209-201609

BLACK/LT.GRAY,TRIM2#,40

main73210-50580-A0iUVF46201609-201708

IVORY,TRIM0#

main73210-50580-B0iUVF46201609-201708

GRAY,TRIM1#

main73210-50580-C0iUVF46201609-201708

BLACK/IVORY,TRIM4#,5#

main73210-50580-C1iUVF46201609-201708

BLACK/LT.GRAY,TRIM2#

73219STOPPER, TONGUE PLATE

main73219-02010iUVF46¥80201209

BLACK

main73219-02020iUVF46¥80201209

GRAY

main73219-02030iUVF46¥80201209

BEIGE

main73219-50010iUVF46¥100201209

MELLOW WHITE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-50440-A2iUVF46201209-201302

IVORY,TRIM0#

sub73220-50441¥39,500

main73220-50440-B0iUVF46201209-201302

GRAY,TRIM1#

sub73220-50441¥39,500

main73220-50440-C3iUVF46201209-201302

BLACK/IVORY,TRIM5#

sub73220-50441¥39,500

main73220-50440-C4iUVF46201209-201302

BLACK/LT.GRAY,TRIM2#,4#

sub73220-50441¥39,500

main73220-50441-A2iUVF46201303-201306

IVORY,TRIM0#

sub73220-50442¥39,500

main73220-50441-B0iUVF46201303-201306

GRAY,TRIM1#

sub73220-50442¥39,500

main73220-50441-C3iUVF46201303-201306

BLACK/IVORY,TRIM41,5#

sub73220-50442¥39,500

main73220-50441-C4iUVF46201303-201306

BLACK/LT.GRAY,TRIM2#,40

sub73220-50442¥39,500

main73220-50442-A2iUVF46201307-201409

IVORY,TRIM0#

sub73220-50443¥32,900

main73220-50442-B0iUVF46201307-201409

GRAY,TRIM1#

sub73220-50443¥32,900

main73220-50442-C3iUVF46201307-201409

BLACK/IVORY,TRIM4#,5#

sub73220-50443¥32,900

main73220-50442-C4iUVF46201307-201409

BLACK/LT.GRAY,TRIM2#

sub73220-50443¥32,900

main73220-50443-A2iUVF46201410-201708

IVORY,TRIM0#

main73220-50443-B0iUVF46201410-201708

GRAY,TRIM1#

main73220-50443-C3iUVF46201410-201708

BLACK/IVORY,TRIM4#,5#

main73220-50443-C4iUVF46201410-201708

BLACK/LT.GRAY,TRIM2#

73223COVER, SEAT BELT RETRACTOR

main73223-50060iUVF46¥1,040201209

73223BCOVER, FRONT SEAT BELT RETRACTOR, RH

main73223-50050iUVF46¥1,430201209

73224BCOVER, FRONT SEAT BELT RETRACTOR, LH

main73224-50040iUVF46¥1,420201209

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-50180-A0iUVF46201209-201708

IVORY,TRIM0#

main73230-50180-B0iUVF46201209-201708

LT.GRAY,TRIM1#

main73230-50180-C0iUVF46201209-201708

BLACK,TRIM2#,4#,5#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-50160-A2iUVF46201209-201708

IVORY,TRIM0#

main73230-50160-B0iUVF46201209-201708

LT.GRAY,TRIM1#

main73230-50160-C0iUVF46201209-201708

BLACK,TRIM2#,4#,5#

73399EXTENDER, SEAT BELT

main73399-50060iUVF46¥3,170201209-201609

6 INCH

main73399-50060iUVF46¥3,170201209-201609

6 INCH,KOREA SPEC

main73399-50070iUVF46¥3,170201209-201609

9 INCH

main73399-50080iUVF46¥3,170201209-201609

12 INCH

main73399-50090iUVF46¥3,170201209-201609

15 INCH

main73399-50100iUVF46¥3,170201209-201609

18 INCH

85642MOTOR, HEIGHT ADJUSTABLE ANCHOR, RH

main85642-50040iUVF46¥8,500201209

85652MOTOR, HEIGHT ADJUSTABLE ANCHOR, LH

main85642-50040iUVF46¥8,500201209

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010¥170

9010511058

main90105-11058¥100

9017911010

main90179-11010¥110

9018904059

main90189-04059¥70

91512G1025

main91512-G1025¥100

9155380612

main91553-80612¥60

9356054014

main93560-54014¥60

20 parts on this diagram · 4 diagrams in section
