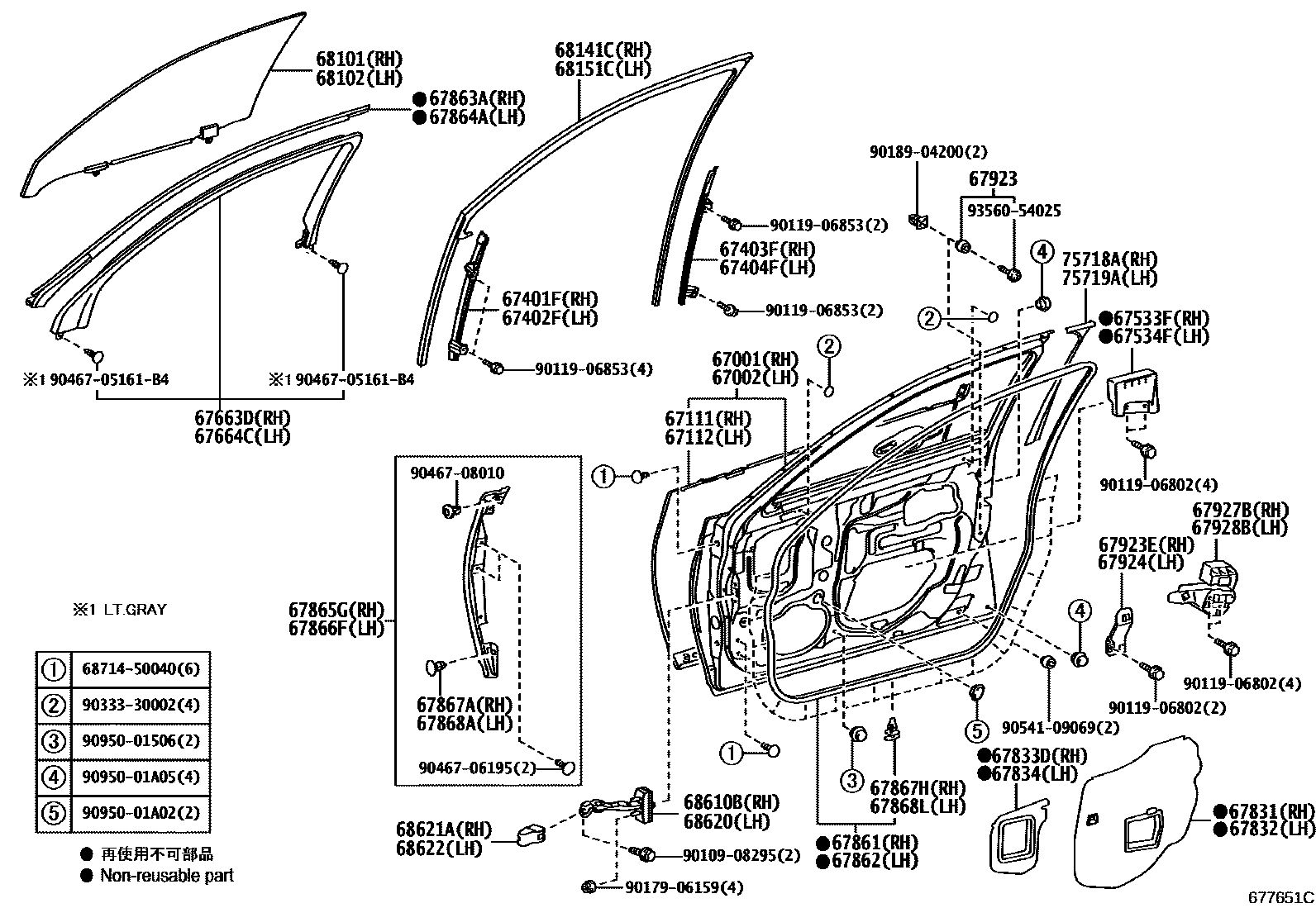

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-50121iUVF46201209

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-50111iUVF46201209

67111PANEL, FRONT DOOR, OUTER RH

main67111-50040iUVF46201209-201708

67112PANEL, FRONT DOOR, OUTER LH

main67112-50040iUVF46201209-201708

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-50020iUVF46201209

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-50020iUVF46201209

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-50020iUVF46201209

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-50020iUVF46201209

67533FPAD, FRONT DOOR LOWER FRAME GARNISH, RH

main67533-50020iUVF46201209

67534FPAD, FRONT DOOR LOWER FRAME GARNISH, LH

main67534-50020iUVF46201209

67663DGARNISH, DOOR FRAME, RH

main67663-50040-C0iUVF46201209-201708

BLACK,TRIM1#,2#,4#,5#

main67663-50040-E0iUVF46201209-201708

ORCHID BROWN,TRIM0#

67664CGARNISH, DOOR FRAME, LH

main67664-50040-C0iUVF46201209-201708

BLACK,TRIM1#,2#,4#,5#

main67664-50040-E0iUVF46201209-201708

ORCHID BROWN,TRIM0#

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-50070iUVF46201209

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-50050iUVF46201209

67833DCOVER, FRONT DOOR SERVICE HOLE, NO.2 RH

main67833-50030iUVF46201209

67834COVER, FRONT DOOR SERVICE HOLE, NO.2 LH

main67834-50030iUVF46201209

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-50040iUVF46201209

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-50040iUVF46201209

67863AWEATHERSTRIP, FRONT DOOR, UPPER RH

main67863-50040iUVF46201209

67864AWEATHERSTRIP, FRONT DOOR, UPPER, LH

main67864-50040iUVF46201209

67865GWEATHERSTRIP, FRONT DOOR, NO.3 RH

main67865-50020iUVF46201209

67866FWEATHERSTRIP, FRONT DOOR, NO.3 LH

main67866-50020iUVF46201209

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main90467-10215iUVF46201209

67867HRETAINER, DOOR WEATHERSTRIP, RH

main67867-50050iUVF46201209

67868ACLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR)

main90467-10215iUVF46201209

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-50050iUVF46201209

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-48060iUVF46201209

67923ECUSHION, FRONT DOOR STIFFENER, NO.1

main67923-50090iUVF46201209

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-50020iUVF46201209

67927BCUSHION, SEPARATION DOOR STIFFENER, NO.1

main67927-50080iUVF46201209

67928BCUSHION, SEPARATION DOOR STIFFENER, NO.2

main67928-50070iUVF46201209

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-50202iUVF46201209

*IRCL,T=5.1,GREEN

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-50202iUVF46201209

*IRCL,T=5.1,GREEN

68141CRUN, FRONT DOOR GLASS, RH

main68141-50021iUVF46201209-201602

sub68141-50022

main68141-50022iUVF46201603

68151CRUN, FRONT DOOR GLASS, LH

main68151-50021iUVF46201209-201602

sub68151-50022

main68151-50022iUVF46201603

68610BCHECK ASSY, FRONT DOOR, RH

main68610-50041iUVF46201209-201304

sub68610-50042

main68610-50042iUVF46201305

68620CHECK ASSY, FRONT DOOR, LH

main68620-50041iUVF46201209-201304

sub68620-50042

main68620-50042iUVF46201305

68621ACOVER, FRONT DOOR CHECK, RH

main68621-33010iUVF46201209

68622COVER, FRONT DOOR CHECK, LH

main68622-33010iUVF46201209

75718ACOVER, FRONT DOOR BELT MOULDING END, REAR RH

main75718-50010iUVF46201209

75719ACOVER, FRONT DOOR BELT MOULDING END, REAR LH

main75719-50010iUVF46201209

6871450040

main68714-50040

9010908295

main90109-08295

9011906802

main90119-06802

9011906853

main90119-06853

9017906159

main90179-06159

9018904200

main90189-04200

9033330002

main90333-30002

9046705161B4

main90467-05161B4

9046706195

main90467-06195

9046708010

main90467-08010

9054109069

main90541-09069

9095001506

main90950-01506

9095001A02

main90950-01A02

9095001A05

main90950-01A05

9356054025

main93560-54025

56 parts on this diagram · 2 diagrams in section
