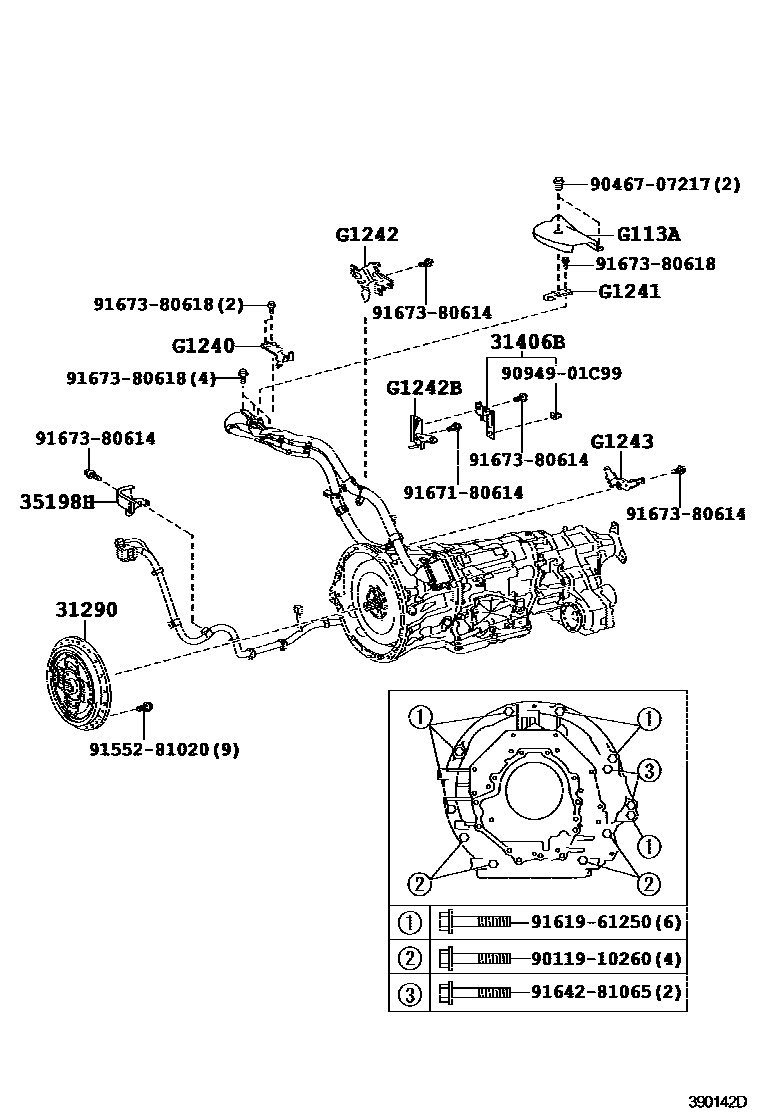

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1 0002 1

31290COVER ASSY, TRANSMISSION INPUT DAMPER

main31290-50010iUVF46201209

31406BBRACKET SUB-ASSY, FLEXIBLE HOSE

main31406-50010iUVF46201209

35198HBRACKET, WIRE HARNESS CLAMP, NO.2

main35198-50020iUVF46201209-201708

G113ACOVER, MOTOR CABLE, RH

mainG113B50010iUVF46201209

G1240BRACKET ASSY, INVERTER MOTOR CABLE

mainG124050020iUVF46201209

G1241BRACKET, INVERTER MOTOR CABLE CLAMP

mainG124150010iUVF46201209

G1242BRACKET, ENGINE MOTOR CABLE CLAMP

mainG124250030iUVF46201209

G1242BBRACKET, ENGINE MOTOR CABLE CLAMP

mainG124250010iUVF46201209

G1243BRACKET, TRANSMISSION MOTOR CABLE CLAMP

mainG124350010iUVF46201209

9011910260

main90119-10260

9046707217

main90467-07217

9094901C99

main90949-01C99

9155281020

main91552-81020

9161961250

main91619-61250

9164281065

main91642-81065

9167180614

main91671-80614

9167380614

main91673-80614

9167380618

main91673-80618

18 parts on this diagram · 2 diagrams in section
