STANDARD TOOL

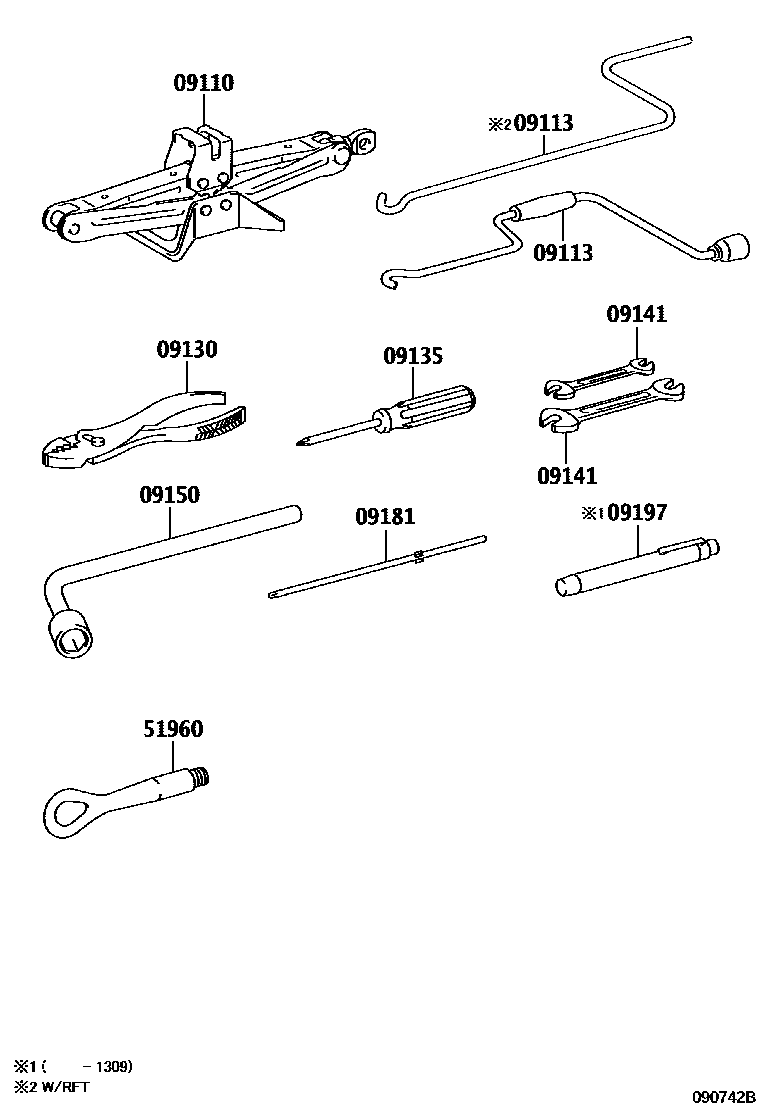

Parts diagram

09110JACK ASSY

main09111-50110i201209-201602

main09111-50130i201603-201708

09113HANDLE, JACK

main09113-50030i201209-201708

09130PLIERS

main09130-50040i201209-201708

09135DRIVER, SCREW

main09135-50060i201209-201708

09141SPANNER

main09141-60010i201209-201708

8 X 10

main09141-60020i201209-201708

12 X 14

09150WRENCH, HUB NUT BOX

main09150-50040i201209-201708

09181ROD, PARKING BRAKE RELEASE

main09181-50010i201209-201304

main09181-50020i201304-201708

09197LIGHT, PEN

main09197-50040i201209-201309

51960HOOK ASSY, FRONT

main51961-50051i201209-201708

9 parts on this diagram · 1 diagram in section
