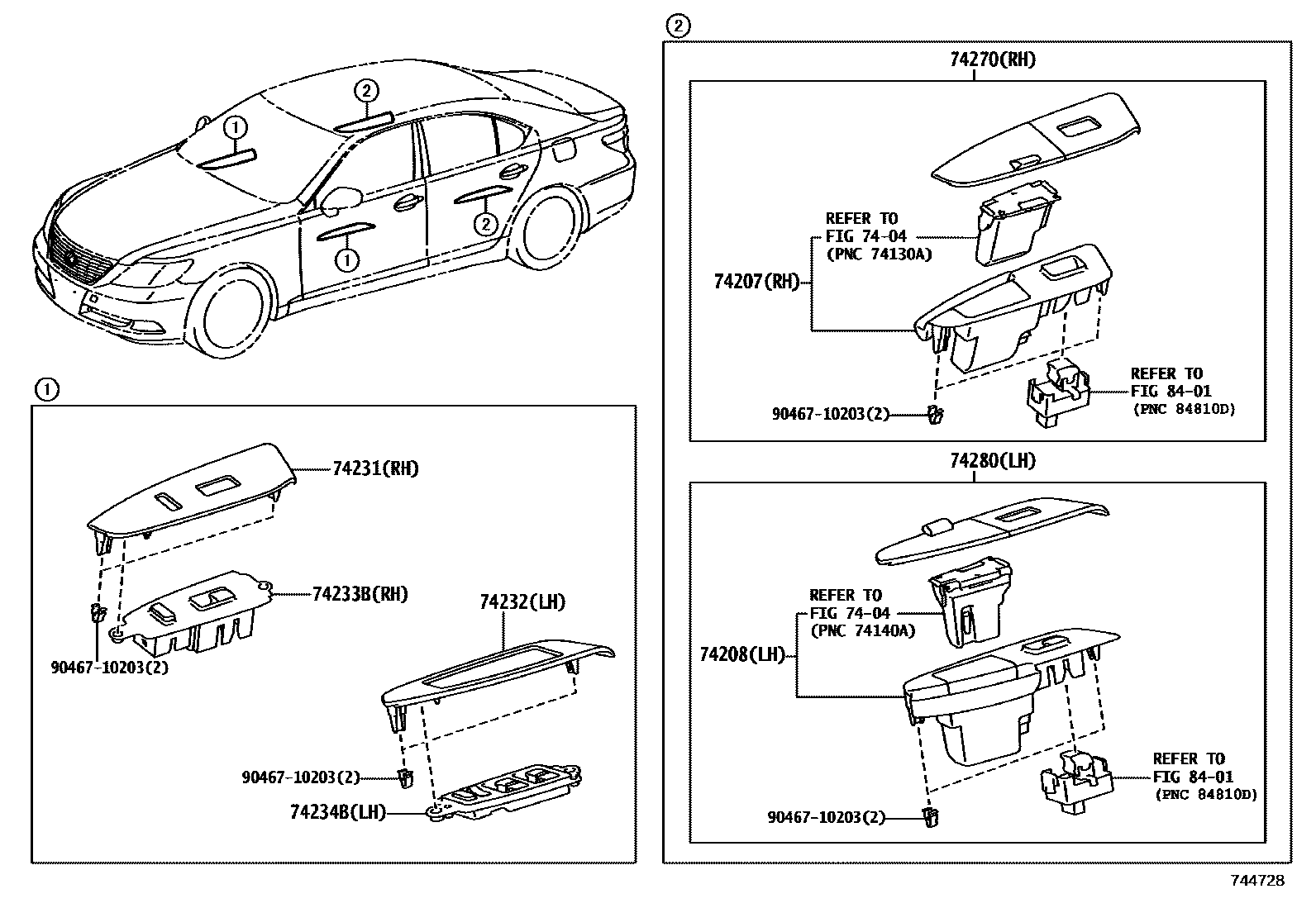

ARMREST & VISOR
7404
74231PANEL, FRONT ARMREST BASE, UPPER RH
GRAY,TRIM1#
DK.BROWN,TRIM01,05
BROWN,TRIM00,2#
GRAY,TRIM1#
SILVER,TRIM05
BROWN,TRIM02,2#
BROWN,TRIM07
74232PANEL, FRONT ARMREST BASE, UPPER LH
GRAY,TRIM1#
DK.BROWN,TRIM01,05
BROWN,TRIM00,2#
GRAY,TRIM1#
SILVER,TRIM05
BROWN,TRIM02,2#
BROWN,TRIM07
74233BPANEL, FRONT DOOR ARMREST BASE, LOWER RH
sub74233-50070
74234BPANEL, FRONT DOOR ARMREST BASE, LOWER LH
sub74234-50080
74270PANEL ASSY, REAR DOOR ARMREST BASE, RH
DK.BROWN,TRIM01,05
BROWN,TRIM00,2#
ASH TRAY-FRONT 1,REAR 2,GRAY,TRIM1#
ASH TRAY-FRONT 1,REAR 2,SILVER,TRIM05
ASH TRAY-FRONT 1,REAR 2,BROWN,TRIM02,2#
ASH TRAY-FRONT 1,REAR 2,BROWN,TRIM07
74280PANEL ASSY, REAR DOOR ARMREST BASE, LH
DK.BROWN,TRIM01,05
BROWN,TRIM00,2#
ASH TRAY-FRONT 1,REAR 2,GRAY,TRIM1#
ASH TRAY-FRONT 1,REAR 2,SILVER,TRIM05
ASH TRAY-FRONT 1,REAR 2,BROWN,TRIM02,2#
ASH TRAY-FRONT 1,REAR 2,BROWN,TRIM07
8401
9046710203
main90467-10203
11 parts on this diagram · 2 diagrams in section
