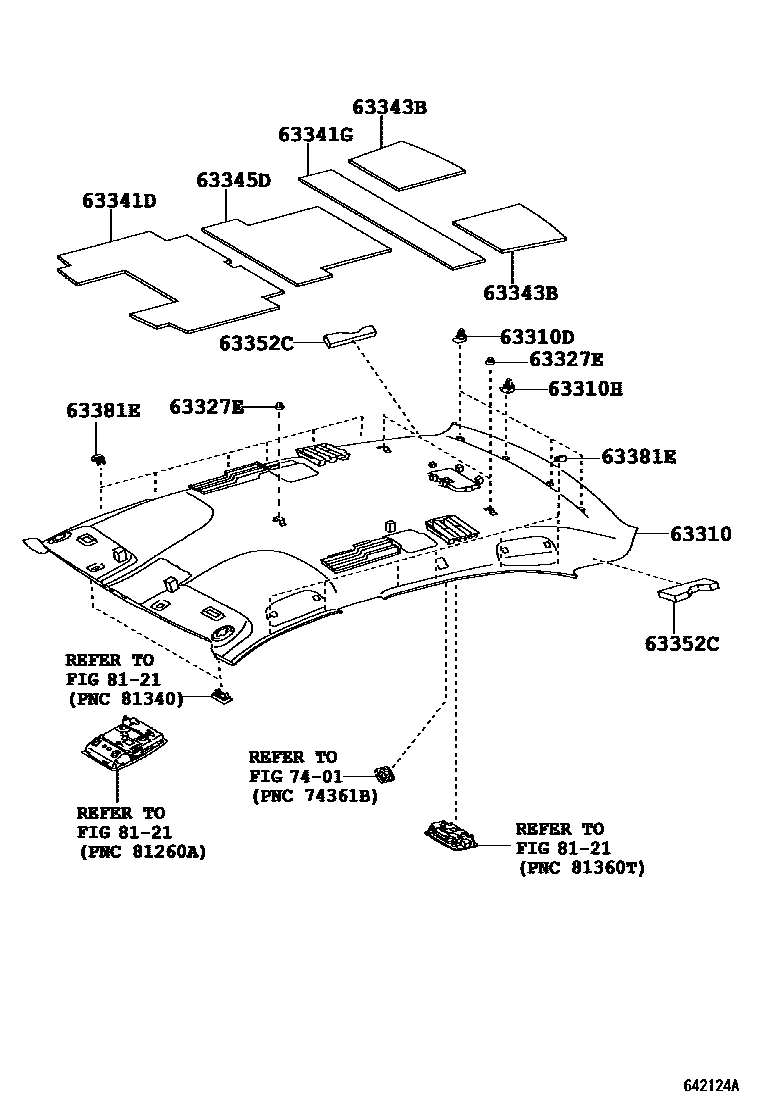

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1W(MOON ROOF) 0003 1W(REAR DISPLAY)

63310HEADLINING ASSY, ROOF

main63311-50500-A0iUVF46200704-200911

MELLOW WHITE,TRIM01,05

sub63311-50750

main63311-50500-A1iUVF46200704-200911

IVORY,TRIM00

sub63311-50750

main63311-50500-B0iUVF46200809-200911

LT.GRAY,TRIM10,12,2#

sub63311-50750

main63311-50500-B0iUVF46200704-200809

LT.GRAY,TRIM1#,2#

sub63311-50750

main63311-50L90-A0iUVF46200911-201209

MELLOW WHITE,TRIM05,07

main63311-50L90-A1iUVF46200911-201209

IVORY,TRIM02

main63311-50L90-B0iUVF46200911-201209

LT.GRAY,TRIM1#,2#

63310DCLIP, ROOF HEADLINING

main90467-09126iUVF46200704-200911

63310HCLIP(FOR ROOF HEADLINING)

main90467-10181iUVF46200704-200911

63327EFASTENER, ROOF HEADLINING, NO.1

63341PAD, ROOF SILENCER, NO.1

main63693-50070

main63693-50080

main63691-50090

main63691-50100

63341DPAD, ROOF SILENCER, FRONT

main63691-50100iUVF46200704-200911

63341GPAD, ROOF SILENCER

main63693-50070iUVF46200704-200911

63343BPAD, ROOF SILENCER, REAR

main63693-50060iUVF46200704-200911

63345DPAD, ROOF SILENCER, CENTER

63352CPAD, ROOF HEADLINING, END

main63352-50110iUVF46200704-200911

63381ERETAINER, ROOF HEADLINING TRIM, FRONT

main63381-50020iUVF46200704-200911

7401

8121

13 parts on this diagram · 3 diagrams in section
