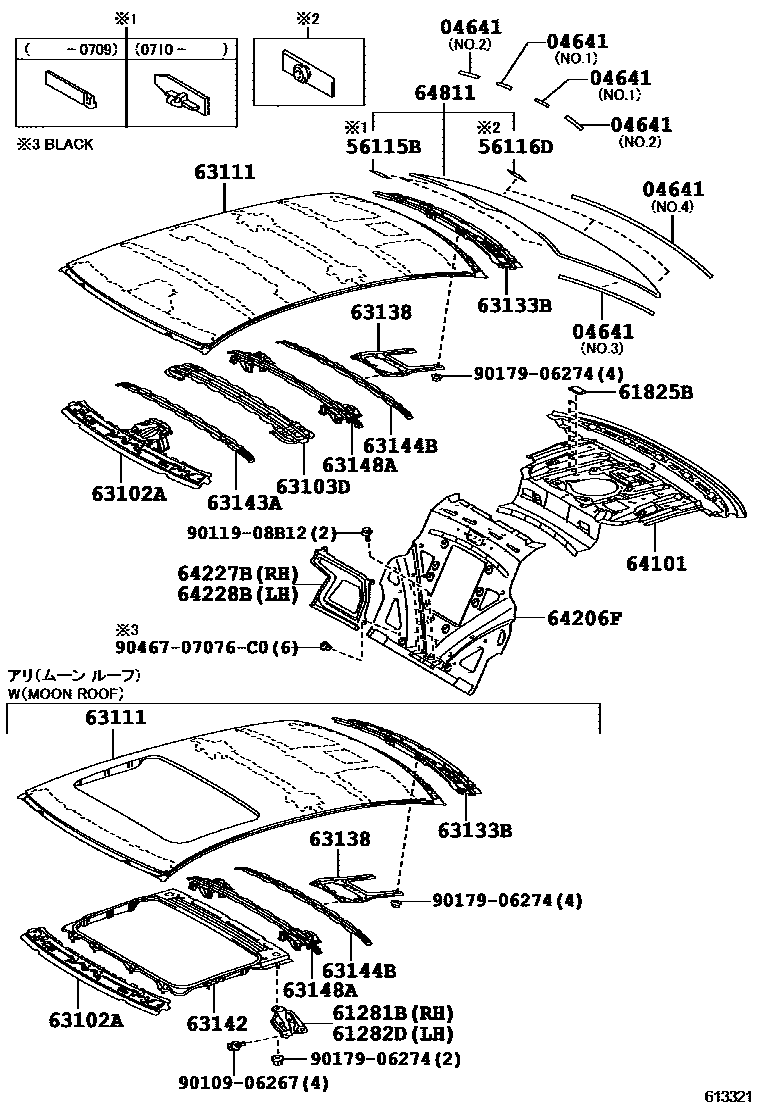

ROOF PANEL & BACK WINDOW GLASS
04641DAM KIT, BACK WINDOW GLASS
NO.1
NO.2 RH
NO.2 LH
56116DSTOPPER, BACK WINDOW GLASS, NO.2
61281BBRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1
61282DBRACKET, SLIDING ROOF HOUSUNG SIDE MOUNTING, NO.2
61825BPLATE, NOISE CONTROL, NO.2
MAYDAY SYSTEM-WITH(LEXUS LINK)
63102APANEL SUB-ASSY, WINDSHIELD HEADER
MOON ROOF-WITHOUT
63103DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3
MOON ROOF-WITHOUT
63111PANEL, ROOF
MOON ROOF-WITHOUT
AUDIO-DVD CHANGER,MARK LEVINSON&MAYDAY SYSTEM-WITHOUT
SATELLITE RADIO-WITH
SATELLITE RADIO-WITH&MAYDAY SYSTEM-WITH(LEXUS LINK)
MAYDAY SYSTEM-WITH(LEXUS LINK)
63138BRACKET, DOME LAMP, NO.2
63142REINFORCEMENT, ROOF PANEL, NO.2
63143AREINFORCEMENT, ROOF PANEL
MOON ROOF-WITHOUT
63144BREINFORCEMENT, ROOF PANEL, NO.4
63148AREINFORCEMENT, ROOF PANEL, NO.7
64227BEXTENSION, CENTER FLOOR TO BLACE, NO.1
64228BEXTENSION, CENTER FLOOR TO BRACE, NO.2
64811GLASS, BACK WINDOW
*UVCEHT,T=5.0,GREEN
*UVCEHT,T=5.0,GREEN,KOREA SPEC
9010906267
main90109-06267
9011908B12
main90119-08B12
9017906274
main90179-06274
9046707076C0
main90467-07076C0
24 parts on this diagram · 3 diagrams in section
