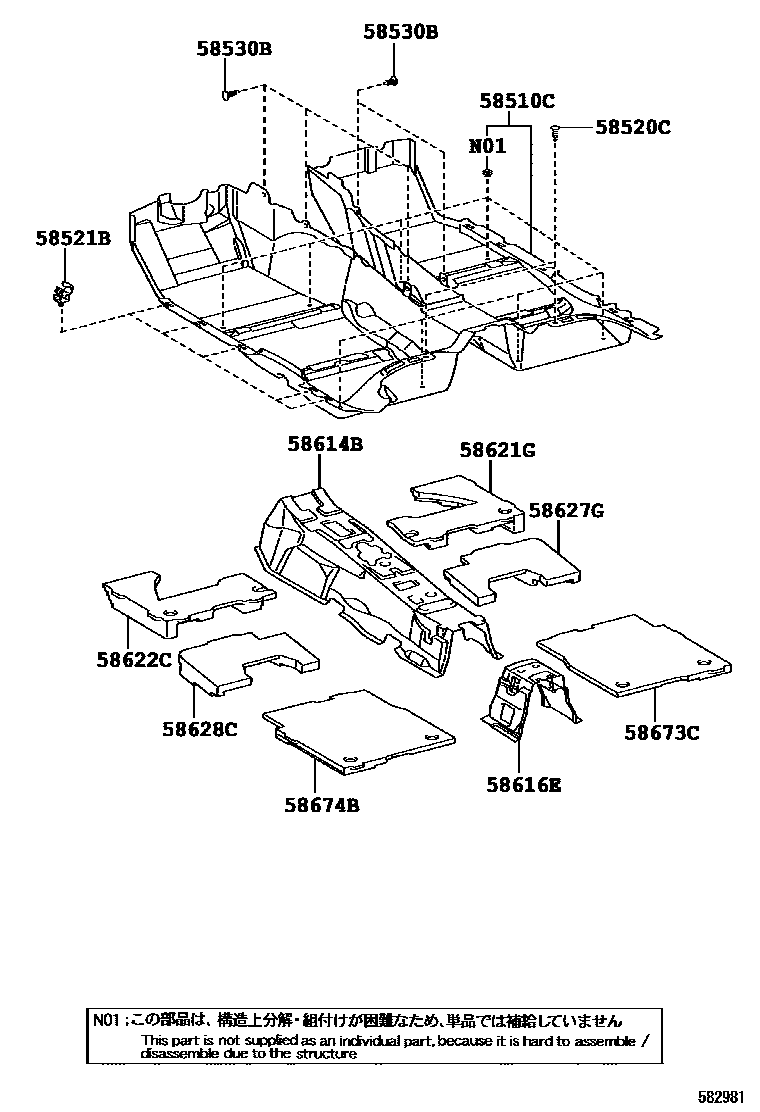

MAT & CARPET
58510CCARPET ASSY, FRONT FLOOR, FRONT
58520CCLIP(FOR FRONT FLOOR CARPET)
58521BHOOK, FLOOR CARPET
58530BCLIP(FOR FRONT FLOOR CARPET)
58614BSHEET, CENTER FLOOR SILENCER
58616ESHEET, CENTER FLOOR SILENCER, CENTER
58621GPAD, FRONT FLOOR SILENCER, RH
58622CPAD, FRONT FLOOR SILENCER, LH
58627GPAD, CENTER FLOOR SILENCER, REAR RH
58628CPAD, CENTER FLOOR SILENCER, REAR LH
58673CPAD, REAR FLOOR SILENCER, NO.1
58674BPAD, REAR FLOOR SILENCER, NO.2
12 parts on this diagram · 1 diagram in section
