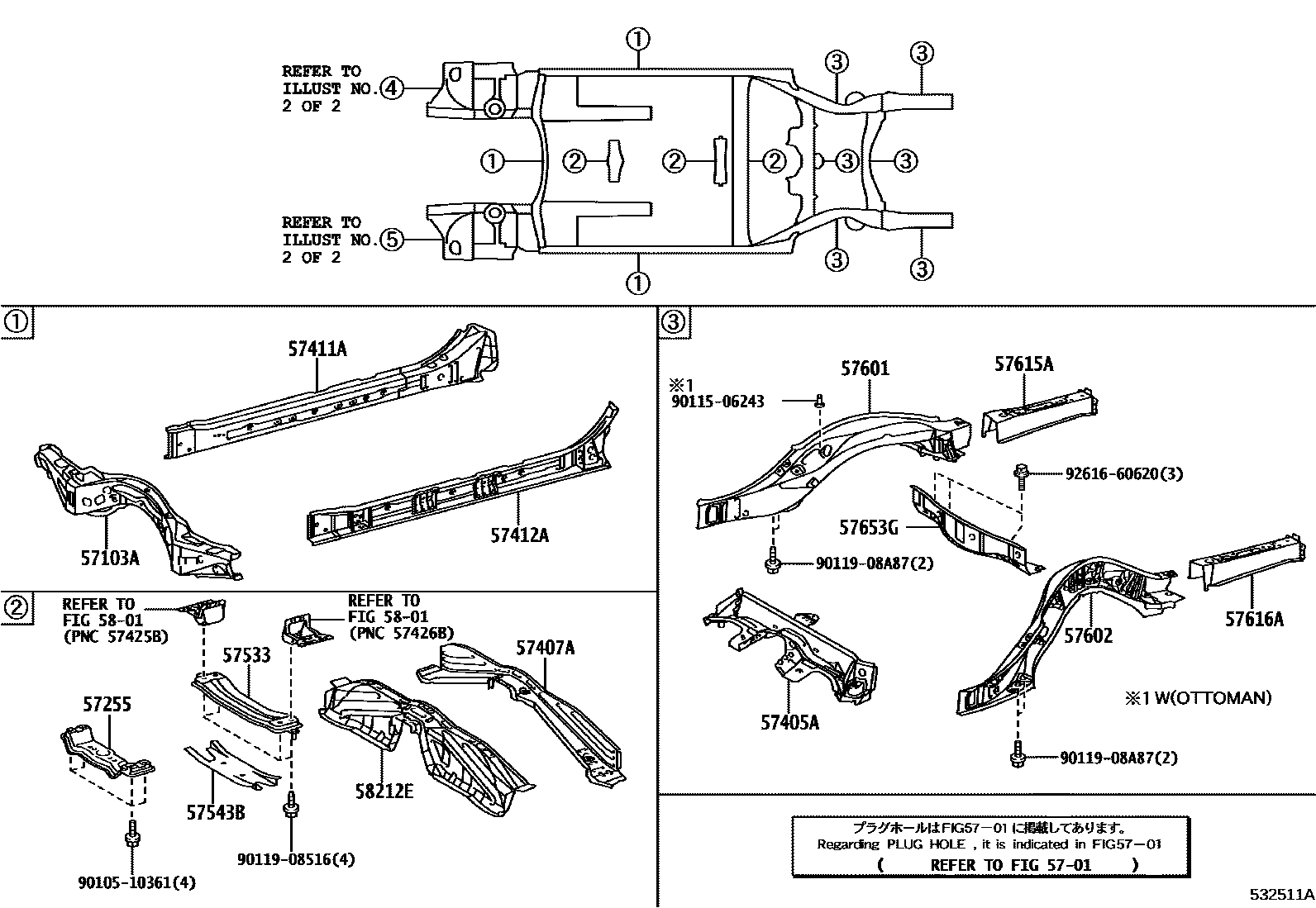

FLOOR SIDE MEMBER

0001 1 0002 1

5701

57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3

main57103-50050iUVF46200704-200911

57255MEMBER, ENGINE REAR MOUNTING

main57209-50010iUVF46200704-200911

57405AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

main57405-50020iUVF46200704-201209

sub57405-50021

sub90333-20001

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-50060iUVF46200704-201209

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-50070iUVF46200704-200803

sub57401-50071

main57401-50071iUVF46200803-200911

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-50060iUVF46200704-200803

sub57402-50061

main57402-50061iUVF46200803-200911

57533BRACE, FRONT FLOOR, CENTER

main57533-50020iUVF46200704-200911

57543BBRACE, CENTER FLOOR, NO.1

main57543-50010iUVF46200704-200911

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-50907iUVF46200704-201003

sub57601-50908

sub57601-50909

main57601-50908iUVF46201003

sub57601-50910

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-50907iUVF46200704-201003

sub57602-50908

sub57602-50909

main57602-50908iUVF46201003

sub57602-50910

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-50906iUVF46200704-200911

sub57615-50907

sub90333-30002

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-50906iUVF46200704-200911

sub57616-50907

sub90333-30002

57653GMEMBER, REAR FLOOR CROSS, NO.2

main57653-50901iUVF46200704-200911

5801

58212EPAN, CENTER FLOOR, FRONT

main58202-50010iUVF46200704-201209

9010510361

main90105-10361

9011506243

main90115-06243

9011908516

main90119-08516

9011908A87

main90119-08A87

9261660620

main92616-60620

21 parts on this diagram · 2 diagrams in section
