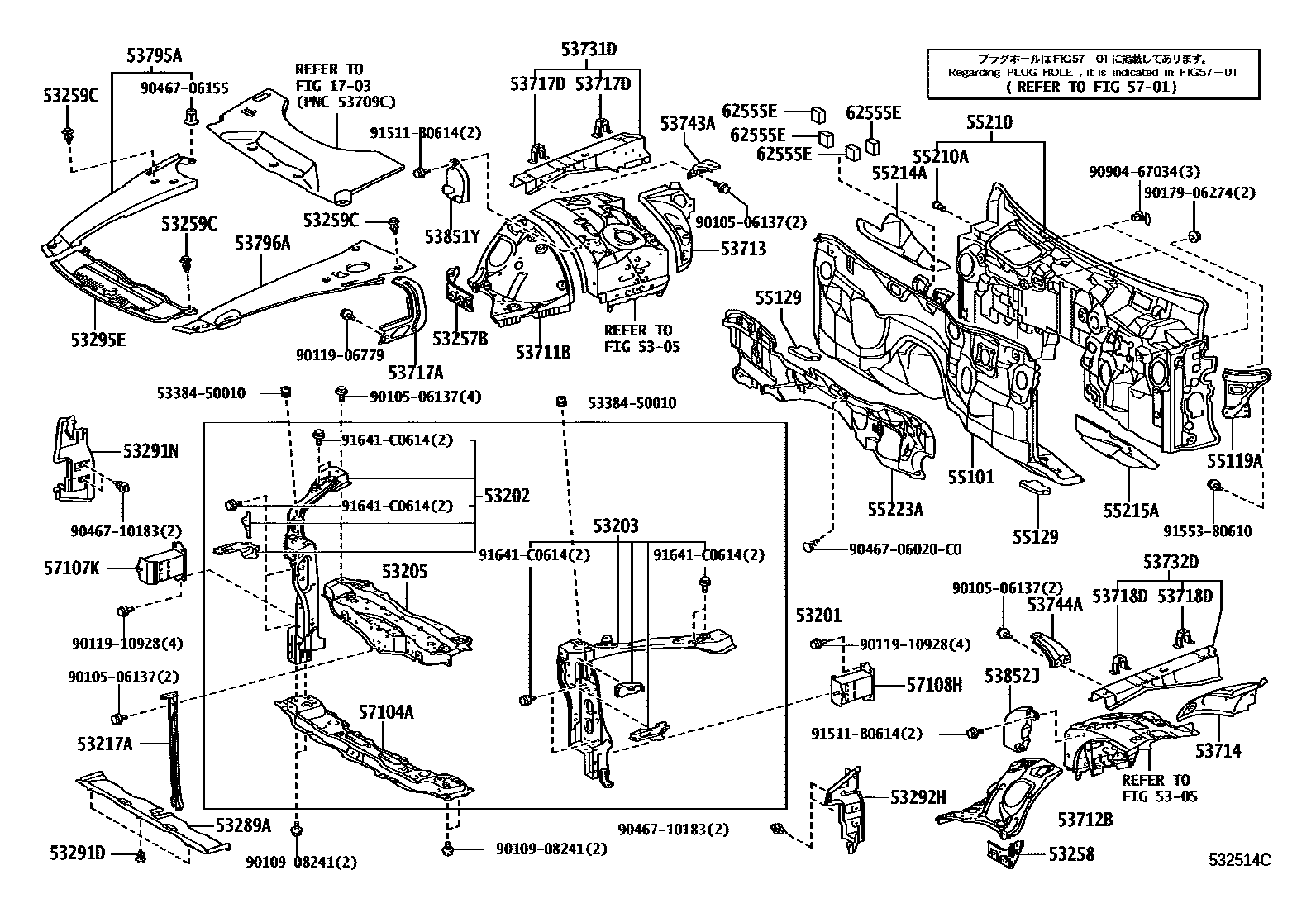

FRONT FENDER APRON & DASH PANEL
5305
53201SUPPORT SUB-ASSY, RADIATOR
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53217ABRACE, HOOD LOCK SUPPORT
53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER
53258BRACKET, FRONT END PANEL MOUNTING, LH
53259CCLIP, RADIATOR SUPPORT TO FRAME SEAL
53291DCLIP, RADIATOR SUPPORT TO FRAME
53291NSEAL, RADIATOR SUPPORT TO FRAME, RH
53292HSEAL, RADIATOR SUPPORT TO FRAME, LH
53295ESEAL, COOL AIR INTAKE DUCT
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53713APRON, FENDER SIDE, RH
53714APRON, FENDER SIDE, LH
53717APLATE, FENDER APRON
53717DGUSSET, FENDER APRON, RH
53718DGUSSET, FENDER APRON, LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53743AREINFORCEMENT, FRONT FENDER APRON, FRONT RH
53744AREINFORCEMENT, FRONT FENDER APRON, FRONT LH
55101PANEL SUB-ASSY, DASH
55119AEXTENSION, DASH PANEL, LH
55210ACLIP
55214APAD, DASH PANEL INSULATOR, NO.2
55215APAD, DASH PANEL INSULATOR, NO.3
5701
57104AMEMBER SUB-ASSY, FRONT CROSS
62555EPAD, PILLAR, NO.5
5338450010BAR, HOOD SILENCER SUPPORT
main53384-50010
9010506137
main90105-06137
9010908241
main90109-08241
9011906779
main90119-06779
9011910928
main90119-10928
9017906274
main90179-06274
9046706020C0
main90467-06020C0
9046706155
main90467-06155
9046710183
main90467-10183
9090467034
main90904-67034
91511B0614
main91511-B0614
9155380610
main91553-80610
91641C0614
main91641-C0614
55 parts on this diagram · 1 diagram in section
