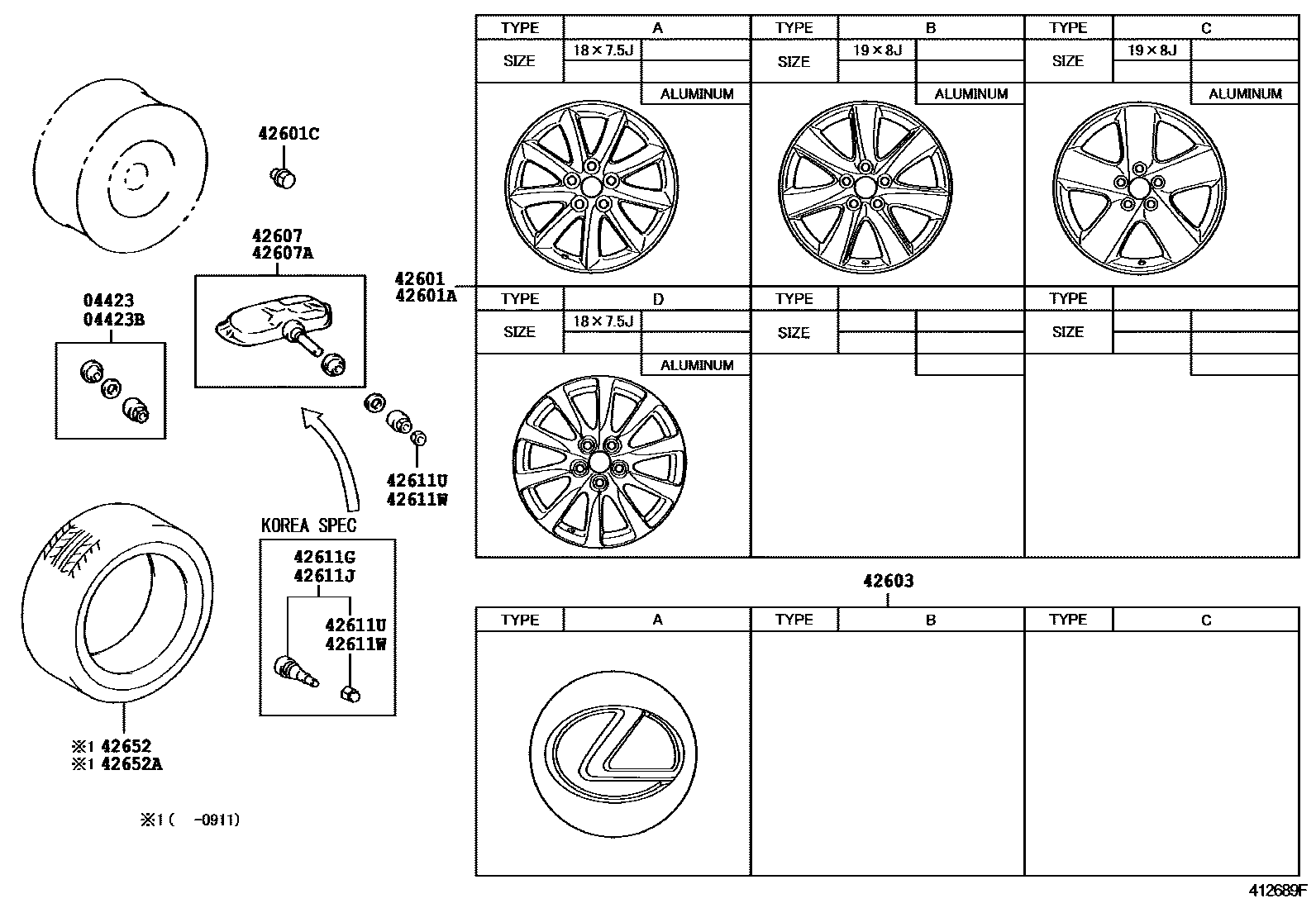

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
sub04423-33060
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
sub04423-33060
42601WHEEL, DISC
18X7.5J,#,USA POSSESSIONS SPEC&WITH (OTTOMAN)&MOON ROOF-WITHOUT,TYPE A:REFER ILLUST.
sub4261A-50090
18X7.5J,#,KOREA SPEC&WITH (OTTOMAN),TYPE A:REFER ILLUST.
sub4261A-50090
18X7.5J,#,KOREA SPEC&WITH (OTTOMAN)&MOON ROOF-WITHOUT,TYPE A:REFER ILLUST.
sub4261A-50090
18X7.5J,#,USA POSSESSIONS SPEC&WITH (OTTOMAN),TYPE A:REFER ILLUST.
sub4261A-50090
18X7.5J,#,KOREA SPEC&WITH (OTTOMAN)&235/50R18 7.5JJ,TYPE A:REFER ILLUST.
sub4261A-50090
18X7.5J,#,KOREA SPEC&WITH (OTTOMAN)&TIRE & DISK WHEEL-235/50R18 7.5JJ,TYPE A:REFERILLUST.
sub4261A-50090
18X7.5J,#,KOREA SPEC&WITH (OTTOMAN)&TIRE & DISK WHEEL-235/50R18 7.5JJ&SPARE TIRE-WITHOUT,TYPE A:REFER ILLUST.
sub4261A-50090
18X7.5J,#,WITH (OTTOMAN)&TIRE & DISK WHEEL-235/50R18 7.5JJ,TYPE A:REFER ILLUST.
sub4261A-50090
18X7.5J,#,CANADA SPEC&235/50R18 7.5JJ,TYPE A:REFER ILLUST.
sub4261A-50090
18X7.5J,#,CANADA SPEC&WITH (OTTOMAN)&TIRE & DISK WHEEL-235/50R18 7.5JJ,TYPE A:REFER ILLUST.
sub4261A-50090
19X8J,#,USA POSSESSIONS SPEC&WITH(REAR POWER SEAT),TYPE B:REFER ILLUST.
sub4261A-50060
19X8J,#,USA POSSESSIONS SPEC&WITH(REAR POWER SEAT)&MOON ROOF-WITHOUT,TYPE B:REFERILLUST.
sub4261A-50060
19X8J,#,KOREA SPEC&WITH(REAR POWER SEAT)&MOON ROOF-WITHOUT,TYPE B:REFER ILLUST.
sub4261A-50060
19X8J,#,STABILIZER-ACTIVE STABILIZER SUSPENSION,TYPE B:REFER ILLUST.
sub4261A-50060
19X8J,#,KOREA SPEC&WITH(REAR POWER SEAT),TYPE B:REFER ILLUST.
sub4261A-50060
19X8J,#,CANADA SPEC&TIRE & DISK WHEEL-245/45R19 8JJ,TYPE B:REFER ILLUST.
sub4261A-50070
19X8J,#,CANADA SPEC&245/45R19 8JJ,TYPE B:REFER ILLUST.
sub4261A-50070
19X8J,#,PEBBLE BEACH EDITION,TYPE C:REFER ILLUST.
18X7.5J,#,WITH(OTTOMAN:5 SEAT)&TIRE & DISK WHEEL-235/50R18 7.5JJ,TYPE D:REFER ILLUST.
sub4261A-50180
18X7.5J,#,KOREA SPEC&WITH(OTTOMAN:4 SEAT)&TIRE & DISK WHEEL-235/50R18 7.5JJ,TYPE D:REFER ILLUST.
sub4261A-50180
18X7.5J,#,KOREA SPEC&WITH(OTTOMAN:4 SEAT)&TIRE & DISK WHEEL-235/50R18 7.5JJ&SPARETIRE-WITHOUT,TYPE D:REFER ILLUST.
sub4261A-50180
18X7.5J,#,KOREA SPEC&WITH(OTTOMAN:5 SEAT)&TIRE & DISK WHEEL-235/50R18 7.5JJ,TYPE D:REFER ILLUST.
sub4261A-50180
18X7.5J,#,KOREA SPEC&WITH(OTTOMAN:5 SEAT)&TIRE & DISK WHEEL-235/50R18 7.5JJ&SPARETIRE-WITHOUT,TYPE D:REFER ILLUST.
sub4261A-50180
18X7.5J,#,WITH(OTTOMAN:4 SEAT)&TIRE & DISK WHEEL-235/50R18 7.5JJ,TYPE D:REFER ILLUST.
sub4261A-50180
18X7.5J,#,CANADA SPEC&WITH(OTTOMAN:4 SEAT)&TIRE & DISK WHEEL-235/50R18 7.5JJ,TYPED:REFER ILLUST.
sub4261A-50190
18X7.5J,#,CANADA SPEC&WITH(OTTOMAN:5 SEAT)&TIRE & DISK WHEEL-235/50R18 7.5JJ,TYPED:REFER ILLUST.
sub4261A-50190
19X8J,#,CANADA SPEC&TIRE & DISK WHEEL-245/45R19 8JJ,TYPE B:REFER ILLUST.
sub4261A-50071
42601AWHEEL, DISC (FOR SPARE)
18X7.5J,#,USA POSSESSIONS SPEC&WITH (OTTOMAN),TYPE A:REFER ILLUST.
sub4261A-50090
18X7.5J,#,USA POSSESSIONS SPEC&WITH (OTTOMAN)&MOON ROOF-WITHOUT,TYPE A:REFER ILLUST.
sub4261A-50090
18X7.5J,#,KOREA SPEC&WITH (OTTOMAN),TYPE A:REFER ILLUST.
sub4261A-50090
18X7.5J,#,KOREA SPEC&WITH (OTTOMAN)&MOON ROOF-WITHOUT,TYPE A:REFER ILLUST.
sub4261A-50090
18X7.5J,#,KOREA SPEC&WITH (OTTOMAN)&235/50R18 7.5JJ,TYPE A:REFER ILLUST.
sub4261A-50090
18X7.5J,#,KOREA SPEC&WITH (OTTOMAN)&TIRE & DISK WHEEL-235/50R18 7.5JJ,TYPE A:REFERILLUST.
sub4261A-50090
18X7.5J,#,WITH (OTTOMAN)&TIRE & DISK WHEEL-235/50R18 7.5JJ,TYPE A:REFER ILLUST.
sub4261A-50090
18X7.5J,#,CANADA SPEC&235/50R18 7.5JJ,TYPE A:REFER ILLUST.
sub4261A-50090
18X7.5J,#,CANADA SPEC&WITH (OTTOMAN)&TIRE & DISK WHEEL-235/50R18 7.5JJ,TYPE A:REFER ILLUST.
sub4261A-50090
19X8J,#,KOREA SPEC&WITH(REAR POWER SEAT)&MOON ROOF-WITHOUT,TYPE B:REFER ILLUST.
sub4261A-50060
19X8J,#,USA POSSESSIONS SPEC&WITH(REAR POWER SEAT)&MOON ROOF-WITHOUT,TYPE B:REFERILLUST.
sub4261A-50060
19X8J,#,USA POSSESSIONS SPEC&WITH(REAR POWER SEAT),TYPE B:REFER ILLUST.
sub4261A-50060
19X8J,#,STABILIZER-ACTIVE STABILIZER SUSPENSION,TYPE B:REFER ILLUST.
sub4261A-50060
19X8J,#,KOREA SPEC&WITH(REAR POWER SEAT),TYPE B:REFER ILLUST.
sub4261A-50060
19X8J,#,CANADA SPEC&245/45R19 8JJ,TYPE B:REFER ILLUST.
sub4261A-50070
19X8J,#,CANADA SPEC&TIRE & DISK WHEEL-245/45R19 8JJ,TYPE B:REFER ILLUST.
sub4261A-50070
19X8J,#,PEBBLE BEACH EDITION,TYPE C:REFER ILLUST.
18X7.5J,#,WITH(OTTOMAN:4 SEAT)&TIRE & DISK WHEEL-235/50R18 7.5JJ
sub4261A-50180
18X7.5J,#,WITH(OTTOMAN:5 SEAT)&TIRE & DISK WHEEL-235/50R18 7.5JJ
sub4261A-50180
18X7.5J,#,KOREA SPEC&WITH(OTTOMAN:4 SEAT)&TIRE & DISK WHEEL-235/50R18 7.5JJ,TYPE D:REFER ILLUST.
sub4261A-50180
18X7.5J,#,KOREA SPEC&WITH(OTTOMAN:5 SEAT)&TIRE & DISK WHEEL-235/50R18 7.5JJ,TYPE D:REFER ILLUST.
sub4261A-50180
18X7.5J,#,WITH(OTTOMAN:4 SEAT)&TIRE & DISK WHEEL-235/50R18 7.5JJ,TYPE D:REFER ILLUST.
sub4261A-50180
18X7.5J,#,WITH(OTTOMAN:5 SEAT)&TIRE & DISK WHEEL-235/50R18 7.5JJ,TYPE D:REFER ILLUST.
sub4261A-50180
18X7.5J,#,CANADA SPEC&WITH(OTTOMAN:4 SEAT)&TIRE & DISK WHEEL-235/50R18 7.5JJ,TYPED:REFER ILLUST.
sub4261A-50190
18X7.5J,#,CANADA SPEC&WITH(OTTOMAN:5 SEAT)&TIRE & DISK WHEEL-235/50R18 7.5JJ,TYPED:REFER ILLUST.
sub4261A-50190
19X8J,#,CANADA SPEC&TIRE & DISK WHEEL-245/45R19 8JJ,TYPE B:REFER ILLUST.
sub4261A-50071
42601CNUT, HUB (FOR AXLE)
42603ORNAMENT SUB-ASSY, WHEEL HUB
*ALU,TYPE A:REFER ILLUST.
*ALU,235/50R18 7.5JJ,TYPE A:REFER ILLUST.
*ALU,USA POSSESSIONS SPEC&WITH (OTTOMAN)&MOON ROOF-WITHOUT,TYPE A:REFER ILLUST.
*ALU,KOREA SPEC&WITH (OTTOMAN)&MOON ROOF-WITHOUT,TYPE A:REFER ILLUST.
*ALU,WITH (OTTOMAN),TYPE A:REFER ILLUST.
*ALU,MOON ROOF-WITHOUT,TYPE A:REFER ILLUST.
*ALU,TIRE & DISK WHEEL-235/50R18 7.5JJ,TYPE A:REFER ILLUST.
*ALU,PEBBLE BEACH EDITION,TYPE A:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
sub42607-33022
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
sub42607-33022
42611GVALVE (FOR TUBELESS TIRE)
KOREA SPEC&WITH(REAR POWER SEAT)&MOON ROOF-WITHOUT
KOREA SPEC&WITH (OTTOMAN)
KOREA SPEC&WITH (OTTOMAN)&MOON ROOF-WITHOUT
KOREA SPEC&WITH(REAR POWER SEAT)
KOREA SPEC&WITH (OTTOMAN)&235/50R18 7.5JJ
KOREA SPEC&WITH(REAR POWER SEAT)&SPARE TIRE-WITHOUT
KOREA SPEC&WITH (OTTOMAN)&TIRE & DISK WHEEL-235/50R18 7.5JJ
KOREA SPEC&WITH (OTTOMAN)&TIRE & DISK WHEEL-235/50R18 7.5JJ&SPARE TIRE-WITHOUT
KOREA SPEC&WITH(OTTOMAN:4 SEAT)&TIRE & DISK WHEEL-235/50R18 7.5JJ
KOREA SPEC&WITH(OTTOMAN:4 SEAT)&TIRE & DISK WHEEL-235/50R18 7.5JJ&SPARE TIRE-WITHOUT
KOREA SPEC&WITH(OTTOMAN:5 SEAT)&TIRE & DISK WHEEL-235/50R18 7.5JJ
KOREA SPEC&WITH(OTTOMAN:5 SEAT)&TIRE & DISK WHEEL-235/50R18 7.5JJ&SPARE TIRE-WITHOUT
42611JVALVE (FOR TUBELESS TIRE SPARE)
KOREA SPEC&WITH(REAR POWER SEAT)&MOON ROOF-WITHOUT
KOREA SPEC&WITH (OTTOMAN)
KOREA SPEC&WITH (OTTOMAN)&MOON ROOF-WITHOUT
KOREA SPEC&WITH(REAR POWER SEAT)
KOREA SPEC&WITH (OTTOMAN)&235/50R18 7.5JJ
KOREA SPEC&WITH (OTTOMAN)&TIRE & DISK WHEEL-235/50R18 7.5JJ
KOREA SPEC&WITH(OTTOMAN:4 SEAT)&TIRE & DISK WHEEL-235/50R18 7.5JJ
KOREA SPEC&WITH(OTTOMAN:5 SEAT)&TIRE & DISK WHEEL-235/50R18 7.5JJ
42611UCAP, TIRE VALVE
KOREA SPEC&WITH(REAR POWER SEAT)&SPARE TIRE-WITHOUT
KOREA SPEC&WITH(REAR POWER SEAT)&MOON ROOF-WITHOUT
KOREA SPEC&WITH (OTTOMAN)
KOREA SPEC&WITH (OTTOMAN)&MOON ROOF-WITHOUT
KOREA SPEC&WITH(REAR POWER SEAT)
KOREA SPEC&WITH (OTTOMAN)&235/50R18 7.5JJ
KOREA SPEC&WITH (OTTOMAN)&TIRE & DISK WHEEL-235/50R18 7.5JJ
KOREA SPEC&WITH (OTTOMAN)&TIRE & DISK WHEEL-235/50R18 7.5JJ&SPARE TIRE-WITHOUT
KOREA SPEC&WITH(OTTOMAN:5 SEAT)&TIRE & DISK WHEEL-235/50R18 7.5JJ&SPARE TIRE-WITHOUT
KOREA SPEC&WITH(OTTOMAN:4 SEAT)&TIRE & DISK WHEEL-235/50R18 7.5JJ
KOREA SPEC&WITH(OTTOMAN:4 SEAT)&TIRE & DISK WHEEL-235/50R18 7.5JJ&SPARE TIRE-WITHOUT
KOREA SPEC&WITH(OTTOMAN:5 SEAT)&TIRE & DISK WHEEL-235/50R18 7.5JJ
42611WCAP, TIRE VALVE (FOR SPARE)
KOREA SPEC&WITH(OTTOMAN:4 SEAT)&TIRE & DISK WHEEL-235/50R18 7.5JJ
KOREA SPEC&WITH(OTTOMAN:5 SEAT)&TIRE & DISK WHEEL-235/50R18 7.5JJ
KOREA SPEC&WITH(REAR POWER SEAT)
KOREA SPEC&WITH(REAR POWER SEAT)&MOON ROOF-WITHOUT
KOREA SPEC&WITH (OTTOMAN)
KOREA SPEC&WITH (OTTOMAN)&MOON ROOF-WITHOUT
KOREA SPEC&WITH (OTTOMAN)&235/50R18 7.5JJ
KOREA SPEC&WITH (OTTOMAN)&TIRE & DISK WHEEL-235/50R18 7.5JJ
42652TIRE
235/50R18 97W,*B/S,USA POSSESSIONS SPEC&WITH (OTTOMAN)
sub42652-50810
235/50R18 97W,*B/S,USA POSSESSIONS SPEC&WITH (OTTOMAN)&MOON ROOF-WITHOUT
sub42652-50810
235/50R18 97W,*D/L,USA POSSESSIONS SPEC&WITH (OTTOMAN)
235/50R18 97W,*D/L,USA POSSESSIONS SPEC&WITH (OTTOMAN)&MOON ROOF-WITHOUT
235/50R18 97W,*D/L,235/50R18 7.5JJ
P235/50R18 97V,*B/S,KOREA SPEC&WITH (OTTOMAN)
P235/50R18 97V,*B/S,KOREA SPEC&WITH (OTTOMAN)&MOON ROOF-WITHOUT
P235/50R18 97V,*B/S,WITH (OTTOMAN)
P235/50R18 97V,*B/S,MOON ROOF-WITHOUT
P235/50R18 97V,*B/S,KOREA SPEC&WITH (OTTOMAN)&235/50R18 7.5JJ
P235/50R18 97V,*B/S,235/50R18 7.5JJ
P235/50R18 97V,*B/S,CANADA SPEC&WITH (OTTOMAN)&TIRE & DISK WHEEL-235/50R18 7.5JJ
P235/50R18 97V,*B/S,KOREA SPEC&WITH (OTTOMAN)&TIRE & DISK WHEEL-235/50R18 7.5JJ
P235/50R18 97V,*B/S,KOREA SPEC&WITH (OTTOMAN)&TIRE & DISK WHEEL-235/50R18 7.5JJ&SPARE TIRE-WITHOUT
P235/50R18 97V,*B/S,WITH (OTTOMAN)&TIRE & DISK WHEEL-235/50R18 7.5JJ
P235/50R18 97V,*D/L,KOREA SPEC&WITH (OTTOMAN)&TIRE & DISK WHEEL-235/50R18 7.5JJ
P235/50R18 97V,*D/L,CANADA SPEC&WITH (OTTOMAN)&TIRE & DISK WHEEL-235/50R18 7.5JJ
P235/50R18 97V,*D/L,WITH (OTTOMAN)&TIRE & DISK WHEEL-235/50R18 7.5JJ
P235/50R18 97V,*D/L,KOREA SPEC&WITH (OTTOMAN)&TIRE & DISK WHEEL-235/50R18 7.5JJ&SPARE TIRE-WITHOUT
P235/50R18 97V,*D/L,MOON ROOF-WITHOUT
P235/50R18 97V,*D/L,WITH (OTTOMAN)
P235/50R18 97V,*D/L,KOREA SPEC&WITH (OTTOMAN)&MOON ROOF-WITHOUT
P235/50R18 97V,*D/L,KOREA SPEC&WITH (OTTOMAN)
P235/50R18 97V,*D/L,KOREA SPEC&WITH (OTTOMAN)&235/50R18 7.5JJ
P235/50R18 97V,*D/L,235/50R18 7.5JJ
P235/50R18,MICHELIN,KOREA SPEC&WITH (OTTOMAN)&MOON ROOF-WITHOUT
sub42652-50880
P235/50R18,MICHELIN,KOREA SPEC&WITH (OTTOMAN)&235/50R18 7.5JJ
sub42652-50880
P235/50R18,MICHELIN,CANADA SPEC&WITH (OTTOMAN)&TIRE & DISK WHEEL-235/50R18 7.5JJ
sub42652-50880
P235/50R18,MICHELIN,KOREA SPEC&WITH (OTTOMAN)&TIRE & DISK WHEEL-235/50R18 7.5JJ
sub42652-50880
P235/50R18,MICHELIN,KOREA SPEC&WITH (OTTOMAN)&TIRE & DISK WHEEL-235/50R18 7.5JJ&SPARE TIRE-WITHOUT
sub42652-50880
P235/50R18,MICHELIN,WITH (OTTOMAN)&TIRE & DISK WHEEL-235/50R18 7.5JJ
sub42652-50880
245/45R19 98Y,*B/S,USA POSSESSIONS SPEC&WITH(REAR POWER SEAT)
sub42652-50551
245/45R19 98Y,*B/S,USA POSSESSIONS SPEC&WITH(REAR POWER SEAT)&MOON ROOF-WITHOUT
sub42652-50551
245/45R19 98Y,*B/S,STABILIZER-ACTIVE STABILIZER SUSPENSION
sub42652-50551
245/45R19 98Y,*D/L,STABILIZER-ACTIVE STABILIZER SUSPENSION
sub42652-50561
245/45R19 98Y,*D/L,USA POSSESSIONS SPEC&WITH(REAR POWER SEAT)&MOON ROOF-WITHOUT
sub42652-50561
245/45R19 98Y,*D/L,USA POSSESSIONS SPEC&WITH(REAR POWER SEAT)
sub42652-50561
245/45R19 98V,*B/S
245/45R19 98V,*D/L
42652ATIRE (FOR SPARE)
235/50R18 97W,*B/S,USA POSSESSIONS SPEC&WITH (OTTOMAN)&MOON ROOF-WITHOUT
sub42652-50810
235/50R18 97W,*B/S,USA POSSESSIONS SPEC&WITH (OTTOMAN)
sub42652-50810
235/50R18 97W,*D/L,USA POSSESSIONS SPEC&WITH (OTTOMAN)
235/50R18 97W,*D/L,USA POSSESSIONS SPEC&WITH (OTTOMAN)&MOON ROOF-WITHOUT
235/50R18 97W,*D/L,235/50R18 7.5JJ
P235/50R18 97V,*B/S,KOREA SPEC&WITH (OTTOMAN)&MOON ROOF-WITHOUT
P235/50R18 97V,*B/S,CANADA SPEC&WITH (OTTOMAN)&TIRE & DISK WHEEL-235/50R18 7.5JJ
P235/50R18 97V,*B/S,KOREA SPEC&WITH (OTTOMAN)&TIRE & DISK WHEEL-235/50R18 7.5JJ
P235/50R18 97V,*B/S,WITH (OTTOMAN)&TIRE & DISK WHEEL-235/50R18 7.5JJ
P235/50R18 97V,*B/S,KOREA SPEC&WITH (OTTOMAN)
P235/50R18 97V,*B/S,WITH (OTTOMAN)
P235/50R18 97V,*B/S,MOON ROOF-WITHOUT
P235/50R18 97V,*B/S,KOREA SPEC&WITH (OTTOMAN)&235/50R18 7.5JJ
P235/50R18 97V,*B/S,235/50R18 7.5JJ
P235/50R18 97V,*D/L,KOREA SPEC&WITH (OTTOMAN)
P235/50R18 97V,*D/L,MOON ROOF-WITHOUT
P235/50R18 97V,*D/L,WITH (OTTOMAN)
P235/50R18 97V,*D/L,KOREA SPEC&WITH (OTTOMAN)&MOON ROOF-WITHOUT
P235/50R18 97V,*D/L,WITH (OTTOMAN)&TIRE & DISK WHEEL-235/50R18 7.5JJ
P235/50R18 97V,*D/L,CANADA SPEC&WITH (OTTOMAN)&TIRE & DISK WHEEL-235/50R18 7.5JJ
P235/50R18 97V,*D/L,KOREA SPEC&WITH (OTTOMAN)&TIRE & DISK WHEEL-235/50R18 7.5JJ
P235/50R18 97V,*D/L,235/50R18 7.5JJ
P235/50R18 97V,*D/L,KOREA SPEC&WITH (OTTOMAN)&235/50R18 7.5JJ
P235/50R18,MICHELIN,KOREA SPEC&WITH (OTTOMAN)&MOON ROOF-WITHOUT
sub42652-50880
P235/50R18,MICHELIN,KOREA SPEC&WITH (OTTOMAN)&235/50R18 7.5JJ
sub42652-50880
P235/50R18,MICHELIN,KOREA SPEC&WITH (OTTOMAN)&TIRE & DISK WHEEL-235/50R18 7.5JJ
sub42652-50880
P235/50R18,MICHELIN,CANADA SPEC&WITH (OTTOMAN)&TIRE & DISK WHEEL-235/50R18 7.5JJ
sub42652-50880
P235/50R18,MICHELIN,WITH (OTTOMAN)&TIRE & DISK WHEEL-235/50R18 7.5JJ
sub42652-50880
245/45R19 98Y,*B/S,USA POSSESSIONS SPEC&WITH(REAR POWER SEAT)&MOON ROOF-WITHOUT
sub42652-50551
245/45R19 98Y,*B/S,STABILIZER-ACTIVE STABILIZER SUSPENSION
sub42652-50551
245/45R19 98Y,*B/S,USA POSSESSIONS SPEC&WITH(REAR POWER SEAT)
sub42652-50551
245/45R19 98Y,*D/L,USA POSSESSIONS SPEC&WITH(REAR POWER SEAT)&MOON ROOF-WITHOUT
sub42652-50561
245/45R19 98Y,*D/L,STABILIZER-ACTIVE STABILIZER SUSPENSION
sub42652-50561
245/45R19 98Y,*D/L,USA POSSESSIONS SPEC&WITH(REAR POWER SEAT)
sub42652-50561
245/45R19 98V,*B/S
245/45R19 98V,*D/L
14 parts on this diagram · 2 diagrams in section
