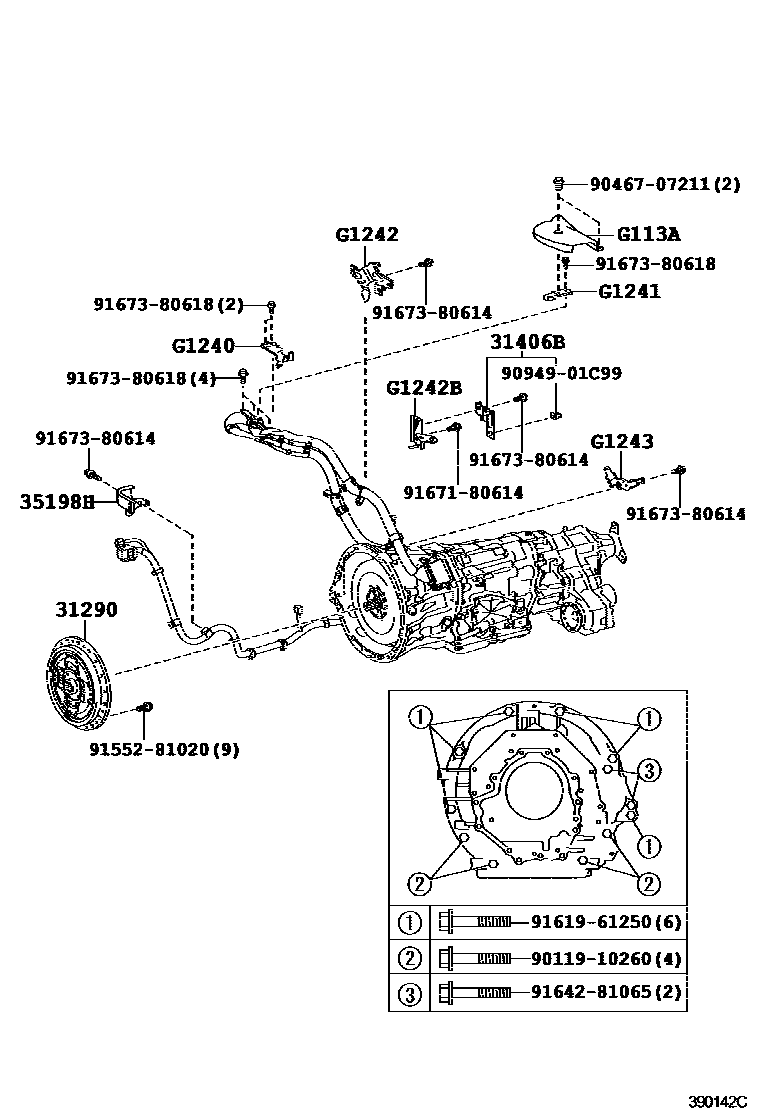

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1 0002 1

31290COVER ASSY, TRANSMISSION INPUT DAMPER

main31290-50010iUVF46200704-200911

31406BBRACKET SUB-ASSY, FLEXIBLE HOSE

main31406-50010iUVF46200704-200911

35198HBRACKET, WIRE HARNESS CLAMP, NO.2

main35198-50020iUVF46200704-201209

G113ACOVER, MOTOR CABLE, RH

mainG113B50010iUVF46200704-200911

G1240BRACKET ASSY, INVERTER MOTOR CABLE

mainG124050020iUVF46200704-200911

G1241BRACKET, INVERTER MOTOR CABLE CLAMP

mainG124150010iUVF46200704-200911

G1242BRACKET, ENGINE MOTOR CABLE CLAMP

mainG124250030iUVF46200704-200911

G1242BBRACKET, ENGINE MOTOR CABLE CLAMP

mainG124250010iUVF46200704-200911

G1243BRACKET, TRANSMISSION MOTOR CABLE CLAMP

mainG124350010iUVF46200704-200911

9011910260

main90119-10260

9046707211

main90467-07211

9094901C99

main90949-01C99

9155281020

main91552-81020

9161961250

main91619-61250

9164281065

main91642-81065

9167180614

main91671-80614

9167380614

main91673-80614

9167380618

main91673-80618

18 parts on this diagram · 2 diagrams in section
