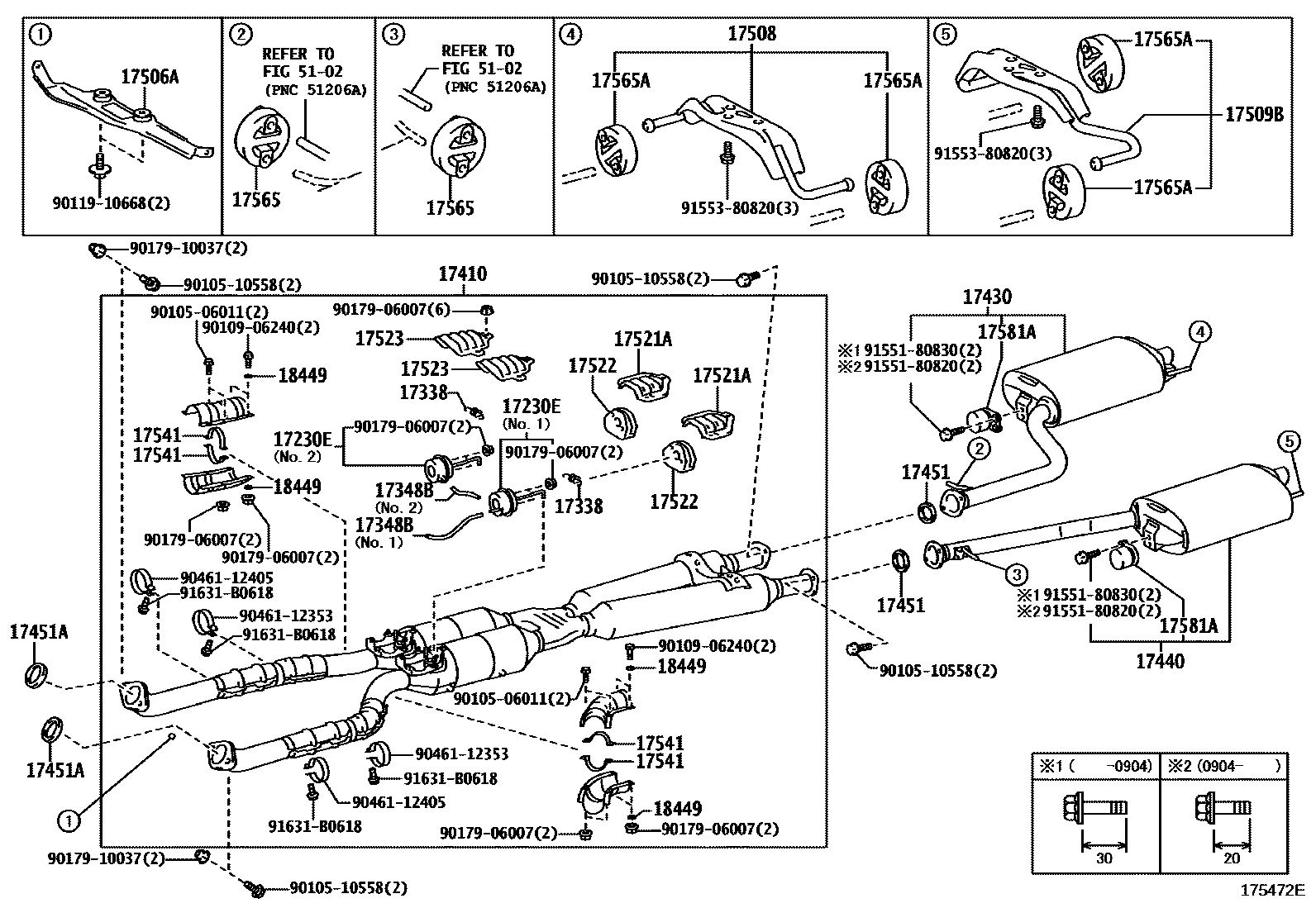

EXHAUST PIPE
17230EACTUATOR ASSY, W/BRACKET
NO.1
NO.2
17338SPRING, AIR CONTROL
17348BHOSE, AIR, NO.8(FOR EXHAUST PIPE)
NO.1
NO.2
17430PIPE ASSY, EXHAUST, TAIL
sub17430-38570
17440PIPE, EXHAUST TAIL, LH
sub17440-38040
17451GASKET, EXHAUST PIPE
17451AGASKET, EXHAUST PIPE, NO.2
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17509BSUPPORT, EXHAUST PIPE NO.4
17521APROTECTOR, EXHAUST PIPE, UPPER NO.1
17522PROTECTOR, EXHAUST PIPE, UPPER NO.2
17523PROTECTOR, EXHAUST PIPE, UPPER NO.3
17541STAY, EXHUST PIPE PROTECTOR, NO.1
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
17581ADAMPER, EXHAUST PIPE
18449SPACER, CONVERTER PROTECTOR
5102
9010506011
main90105-06011
9010510558
main90105-10558
9010906240
main90109-06240
9011910668
main90119-10668
9017906007
main90179-06007
9017910037
main90179-10037
9046112353
main90461-12353
9046112405
main90461-12405
9155180820
main91551-80820
9155180830
main91551-80830
9155380820
main91553-80820
91631B0618
main91631-B0618
32 parts on this diagram · 1 diagram in section
